Temperature sensor and low smoke halogen free flame retardant high temperature cable

Home ProductsRTD Temperature Sensor

SUS304 SUS316 SUS321 Thermistor Temperature Sensor Accurate Measurement

SUS304 SUS316 SUS321 Thermistor Temperature Sensor Accurate Measurement

  • SUS304 SUS316 SUS321 Thermistor Temperature Sensor Accurate Measurement
SUS304 SUS316 SUS321 Thermistor Temperature Sensor Accurate Measurement
Product Details:
Place of Origin: China
Brand Name: Testeck
Certification: CE,ISO
Model Number: TY-C09
Payment & Shipping Terms:
Minimum Order Quantity: 10
Price: Agree
Packaging Details: Customized packing
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 5000 pieces each month
Contact Now
Detailed Product Description
Product Name: Surface Temperature Measurement Type: Pt100(customized)
Accuracy Class: 2B、B、A、1/3BLevel Optional Ambient Temperature In Application: -50 - 200℃ (can Be Customized According To Actual Temperature Resistance)
Material Of Probe: SUS304, SUS316, SUS321 (customer Specified) Probe Size: Contact Customer Service
High Light:

SUS321 Thermistor Temperature Sensor


SUS31 Thermistor Temperature Sensor


SUS321 Thermocouple Temperature Sensors

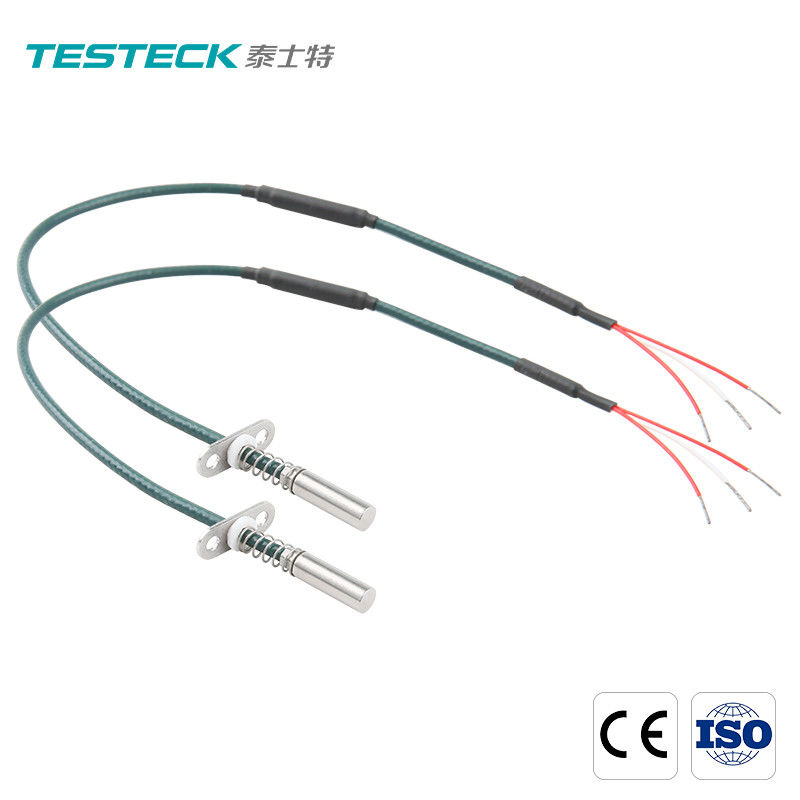

SUS304 SUS316 SUS321 Thermistor Temperature Sensor Accurate Measurement


End Thermo Resistance Accurate Measurement Long Service Life


The end-surface thermal resistor is composed of temperature measuring element, outer protective tube, compression spring, process connection device, and shielding extension. It is mainly used for bearing temperature measurement of steam turbine thrust bushes, water pipes of double water-cooled generators, and other mechanical equipment.


1. End-face Thermal Resistor

The industrial end-face thermal resistor is mainly composed of temperature measuring element, external protection tube, compression spring, process connection device, shield extension, and is equipped with various installation and fixing devices.

1.1 Temperature sensing element: imported Pt100 temperature sensing element of thin film platinum resistor.

1.2 Protective tube: According to the type of thermal resistor, the condition of the measured medium and the temperature to be measured, the tubes made of different materials are selected. The tubes of thermal resistor are generally made of carbon steel, various grades of stainless steel, alloy steel and other materials.

1.3 Installation and fixing device: The installation and fixing device is for users to install and fix thermal resistor. It is divided into various forms, such as compressed plate, flexible thread, etc.

For more non-standard customized products, please consult Shenzhen Testeck Science and Technology Co., Ltd.


2. Product Parameters


Specifications Parameters
TY-C End-face thermal resistor
Type Pt100
Accuracy class Class A, B
Ambient temperature in application -50~200℃
Wire system Two-wire, three-wire, and four-wire
Structure of sensor Single/Double
Material of probe SUS304, SUS316, SUS321 (customer specified)
Process connection Compressed plate, flexible thread, etc. (customer specified)


3. Application of Company Products

Plastic injection molding machinery
Food processing equipment
Engine and turbine exhaust gas
Semiconductor processing
Heat treating and metals processing
Medical equipment
Aerospace industries
Packaging equipment
Test stands



4. Product Structure


SUS304 SUS316 SUS321 Thermistor Temperature Sensor Accurate Measurement 0


1. Qucik Response:Your inquiry will be replied within 24 hours. Response Rate over 90%
2. Smooth Communication: Well-trained and experienced staffs to answer all your inquires.
3. Sincere Service Attitude: Treat Customers As Friends. No Questions are Neglected.
4. OEM Accepted: Free Sample,We can customize your products to meet all your different requests.
5. Small MOQ: Small Amount wholesales are supported to meet your needs as well as large demands.
6. Fast Delivery: We have Reliable Forwarders with long term cooperation and Competitive Price. You may contact any one of our sales and services team: email to us as inquiry.
