Testeck Ltd.
Temperature sensor and low smoke halogen free flame retardant high temperature cable manufacturer:www.testeck.com/
 |
| Place of Origin: | China |
| Brand Name: | Testeck |
| Certification: | CE,ISO |
| Model Number: | TY-C |
| Minimum Order Quantity: | 10 |
|---|---|
| Price: | Agree |
| Packaging Details: | Customized packing |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 5000 pieces each month |
| Product Name: | Thermal Resistance | Type: | PT100 |
|---|---|---|---|
| Temperature Range: | -50 ~ 500 ℃ | Structure Of Sensor: | Single/Double |
| Accuracy Class: | A/B | Probe Material: | 304 |
| High Light: | Armor Protection RTD Temperature Sensor,RTD Industrial Grade Temperature Sensors,PT100 Industrial Grade Temperature Sensors |
||

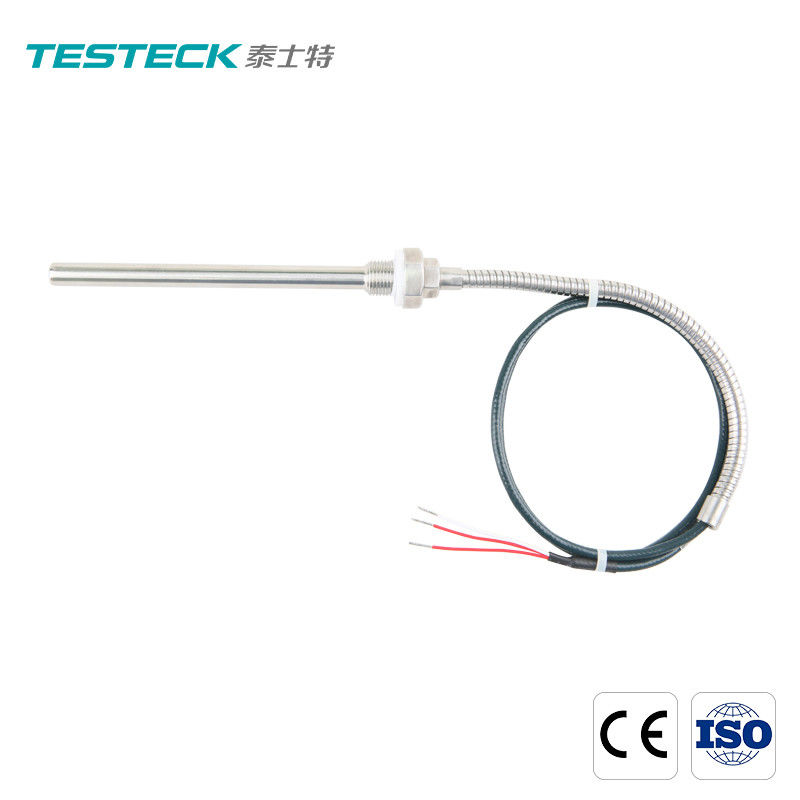

PT100 Armor Protection RTD Temperature Sensor Thermal Resistance
Factory Price Temperature Measurement Resistance Armor Protection
Armored cable RTD's armored cable can effectively enhance the tensile strength and compressive strength, and extend the service life. In addition to the resistance to external forces, it can also prevent transmission problems caused by mice gnawing.
Industrial armored cable RTD is used as a temperature measurement sensor, usually used in conjunction with temperature transmitters, regulators and display instruments to form a process control system. It can directly measure or control the temperature of liquid, steam, gas media and solid surface in various production processes.
Thin film platinum thermal resistor: Because of its packaging and manufacturing characteristics, thin film platinum thermal resistor has the temperature measurement range of -50～500℃. PT100 is a widely used temperature measuring element and compared with other temperature sensors, has unparalleled advantages in the range of -50~500℃, including high precision, good stability, and strong anti-interference ability. Screw-in thermal resistor is widely used in industrial sectors and scientific and technological fields, i.e. petroleum, chemical, machinery, metallurgy, electric power, textile, food, etc.
1. Armored Cable RTD
Industrial assembled thermal resistor is mainly composed of metal armored cable, protective tube and temperature sensing element, and equipped with various installation and fixing devices.
1.1 Temperature sensing element: imported Pt100 temperature sensing element of thin film platinum resistor.
1.2 Protective tube: According to the type of thermal resistor, the condition of the measured medium and the temperature to be measured, the tubes made of different materials are selected. The tubes of thermal resistor are generally made of carbon steel, various grades of stainless steel, alloy steel and other materials.
2. Product Parameters
| Specifications | Parameters |
| TY-C | Armored cable RTD |
| Type | Pt100 |
| Accuracy class | A, B |
| Ambient temperature in application | －50～500℃ |
| Wire system | Two-wire, three-wire, and four-wire |
| Structure of sensor | Single/Double |
| Material of probe | SUS304 |
| Process connection | No fixing device, fixed screw, etc. (customer specified) |
3. Application of company products
It is widely used in industrial sectors and scientific and technological fields, including petroleum, chemical, machinery, metallurgy, electric power, textile, food, etc.
4. Product Structure
FAQ
Q, are your manufacturer?
A, We are manufacturer, our factory localed in Shenzhen China.Our company mainly produces emperature Sensor .
Q, what product you manufacturer have?
A, Our factory produce temperature sensor for power station, Stators and cable for industry.
Q, how many production lines do you have?
A, We have 10 production lines in Shenzhen factory.
Q, how do you ensure product quality?
A, We already built a mechanical,electrical,fire and flame retardant laboratory, professional testing engineers.
Q, can you send samples?
A, Yes, we will supply sample before your make the order.
Q, How long will you give me the reply?
A, we will contact you as soon as we can.
Q, Could I visit your factory?
A, Sincerely welcome you to visit our factory.
Q, How about the quality of the managements ?
A, We have a complete quality control system , all of our products will be fully pre-inspection by QC departments before shipping to you .
