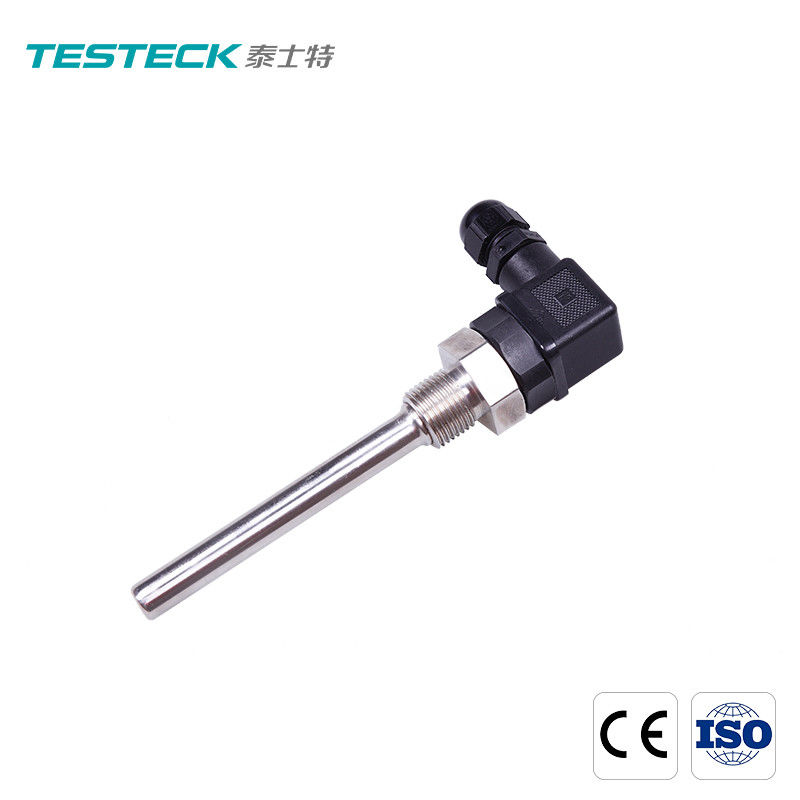

Thermocouple RTD Temperature Sensor
Product Details:
Place of Origin: China
Brand Name: Testeck
Certification: CE,ISO
Model Number: TY-S05
Payment & Shipping Terms:
Minimum Order Quantity: 10
Price: agree
Packaging Details: Customized packing
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 5000 pieces each month
Contact Now
Detailed Product Description
Product Name: RTD Quick Connector Type: Pt100
Accuracy Class: Class A, B Ambient Temperature In Application: -50~200℃
Protection Grade: IP65 Anti Vibration Performance: 10~2000HZ,15g
High Light:

Thermocouple RTD Temperature Sensor

,

RTD Pt100 thermocouple

,

200 Degree RTD Temperature Sensor

RTD Connector Durable Stable Performance And Use More Conveniently



Screw-in thermal resistor measures temperature based on the characteristic of changing resistance of a substance along with temperature. When the medium being measured shows a temperature gradient, the temperature measured is the average temperature of the medium in the range where the temperature sensing element is located.

Industrial screw-in thermal resistor is used as a temperature measurement sensor, usually used in conjunction with temperature transmitters, regulators and display instruments to form a process control system. It can directly measure or control the temperature of liquid, steam, gas media and solid surface in various production processes.



1. Screw-in Thermal Resistor

Industrial screw-in thermal resistor is mainly composed of connector, protective tube, terminal block, and temperature sensing element, and equipped with installation and fixing devices.

1) Temperature sensing element: imported Pt100 temperature sensing element of thin film platinum resistor.

2) Protective tube: According to the type of thermal resistor, the condition of the measured medium and the temperature to be measured, the tubes made of different materials are selected. The tubes of thermal resistor are generally made of carbon steel, various grades of stainless steel, alloy steel and other materials.

3) Installation and fixing device: The installation and fixing device is for users to install and fix thermal resistor. It is divided into various forms, such as no fixing device, fixed thread, movable flange and fixed flange. For more non-standard customized products, please consult Shenzhen Testeck Science and Technology Co., Ltd.



2. Product Parameters

Specifications Parameters
TY-S05 Screw-in thermal resistor -Connector
Type Pt100,
Accuracy class Class A, B
Ambient temperature in application -200~500℃
Structure of sensor Single/double
Material of sensor SUS304, SUS316, SUS321 (customer specified)
Process connection No fixing device, fixed thread, etc.
Protection grade IP65



3. Application of company products

It is widely used in industrial sectors and scientific and technological fields, including petroleum, chemical, machinery, metallurgy, electric power, textile, food, etc.



4. Product Structure

Thermocouple RTD Temperature Sensor 0



Product Advantages
1: Accurate measurement (imported chip)
2: fast response, anti-interference,
3: waterproof and corrosion resistant (304 probe endlessly)
4: PTFE Extension wire
5: Good temperature resistance ,Internal anti-interference
