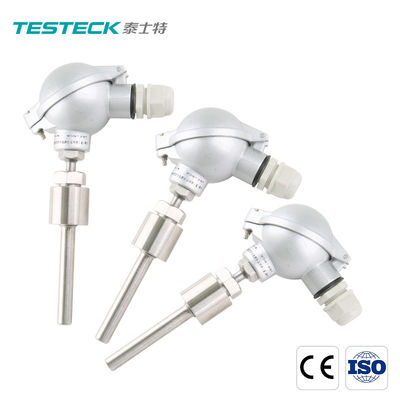

SUS316 RTD Temperature Sensor Industrial Thermocouple Pt100 Type K

SUS316 RTD Temperature Sensor Industrial Thermocouple Pt100 Type K

  • SUS316 RTD Temperature Sensor Industrial Thermocouple Pt100 Type K
SUS316 RTD Temperature Sensor Industrial Thermocouple Pt100 Type K
Product Details:
Place of Origin: China
Brand Name: Testeck
Certification: CE,ISO
Model Number: TY-S
Payment & Shipping Terms:
Minimum Order Quantity: 10
Price: Agree
Packaging Details: Customized packing
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 5000 pieces each month
Contact Now
Detailed Product Description
Product Name: Industrial , Temperature Sensor Type: K
Accuracy: ±0.2℃ Temperature Range: 0-1000℃
Material Of Probe: SUS316 Installation Method: Contact Customer Service
High Light:

SUS316 RTD Temperature Sensor


thermocouple pt100 type k


SUS316 Industrial Thermocouple

SUS316 RTD Temperature Sensor Industrial Thermocouple Pt100 Type K


China Manufacture High Quality Low Quality Temperature Sensor 10*150mm Thermocouple


TY-S series thermocouple is used as a temperature sensor, usually in combination with display instruments, recording instruments and electronic regulators. It can directly measure the surface temperature of -50-600°C of liquid, steam, gas and solid surface in production processes.


RTD pt100 temperature sensor Working principle:
Compensation of the thermocouple wires electrode by the two different conductor material
composition. As measuring end and participate in the end there is temperature difference, can
produce thermoelectric power, the instrument will show thermoelectric potential corresponding
temperature value.


1. The structure principle of thermocouple


The industrial thermocouple is mainly composed of junction box, protective tube, terminal block, insulating ceramic column and temperature sensing element, and equipped with various installation and fixing devices.

1.1 ype of thermocouple: platinum rhodium 30-platinum rhodium 6, platinum rhodium 10-platinum, nickel chromium-nickel silicon, nickel chromium-copper nickel.

1.2 Protective tube: According to the type of thermocouple, the condition of the measured medium and the temperature to be measured, the tubes made of different materials are selected. The tubes of thermocouple are generally made of carbon steel, various grades of stainless steel, alloy steel and other materials.

1.3 Junction box: The junction box of thermocouple is used to connect the display instrument of temperature sensing element, generally made of aluminum alloy and stainless steel. It is divided into explosion-proof, waterproof and small splash-proof structures.

1.4 Wiring board: The wiring board of thermocouple is generally made of ceramics and installed in the junction box. It is the signal output terminal of the thermocouple, and divided into two types: single-branch type and double-branch type.

1.5 Installation and fixing device: The installation and fixing device is for users to install and fix thermocouple. It is divided into various forms, such as no fixing device, fixed thread, movable flange and fixed flange.

1.6 Nominal pressure

Generally it refers to the static external pressure that the tube can withstand without breaking under the working temperature. In fact, it is not only related to the tube material, diameter, and wall thickness, but also related to the structure, installation method, insertion depth, and the flow rate and type of the medium to be measured.

For more non-standard customized products, please consult Shenzhen Testeck Science and Technology Co., Ltd.


2. Product parameters


Specifications Parameters
TY-S Thermocouple - junction box
Type K
Accuracy class Class 1, 2
Ambient temperature in application Refer to temperature measurement range and tolerance
Structure of sensor SingleDouble
Protective tube material 304
Process connection No fixing device, fixed thread, movable flange and fixed flange
Protection grade IP67


3. Application of company products


1. Widely Used In Science and Industry
2. Temperature Measurement for kilns
3. Gas Turbine Exhaust Application
4. Used For Diesel Engines and Other Industrial Processes


4. Product Advantages
1: Accurate measurement (imported chip)
2: fast response, anti-interference,
3: waterproof and corrosion resistant (304 probe endlessly)
4: PTFE Extension wire
5: Good temperature resistance ,Internal anti-interference

SUS316 RTD Temperature Sensor Industrial Thermocouple Pt100 Type K 0
