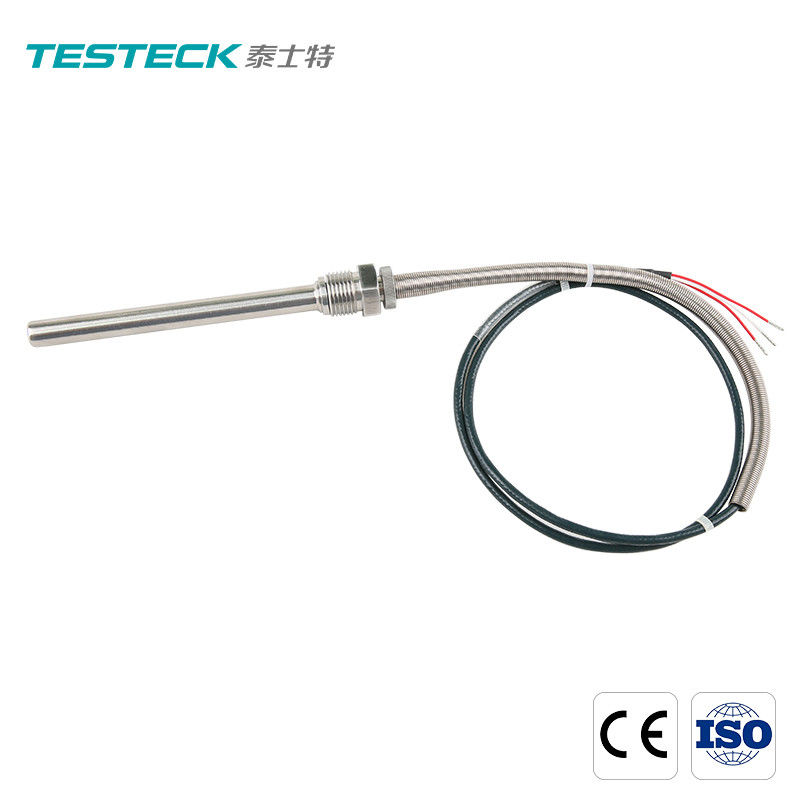

Threaded Metal Probe PT100 Temperature Sensor 4 Wire RTD Class A

Probe Type Threaded Metal Probe PT100 Temperature Sensor

RTD Introduction

RTD usually use a platinum thin film resistance element to sense the temperature. It is more accurate and more linear than thermocouples and generally slower responding. It is usually measure the temperature range of -200~600°C, connected with display instrument, recording meter and computer, etc. to directly measure temperature of liquid, gas, solid surface.

The thermo element of RTD is made by metal wire. If there is temperature gradient in the measured medium, the measured temperature is an average temperature of element in the range of the medium zone.

1. RTD description

Industrial integrated RTD is mainly composed of temperature sensing element, temperature probe, transition protection and signal cable, and equipped with installation and fixing devices.

1.1 Temperature sensing element: imported Pt100 temperature sensing element of thin film platinum resistor.

1.2 Protective tube: According to the type of thermal resistor, the condition of the measured medium and the temperature to be measured, the tubes made of different materials are selected. The tubes of thermal resistor are generally made of carbon steel, various grades of stainless steel, alloy steel and other materials.

1.3 Installation and fixing device: The installation and fixing device is for users to install and fix thermal resistor. It is divided into various forms, such as no fixing device, fixed thread, movable flange and fixed flange.

The temperature sensor made by taishite in Shenzhen, China, has stable performance and reliable quality. It is your reliable brand.

For more non-standard customized products, please consult Shenzhen Testeck Science and Technology Co., Ltd.

2. Product Parameters

3. Application of Company Products

Communication and Instrumentation
■ Amplifier over temperature sensing
■ Cellular telephones
■ Copper coil winding
■ Transistor temperature compensation
■ Rechargeable battery packs
■ Oscillator temperature compensation

Computer
■ Power supplies (inrush current limiting)
■ Uninterruptible power supplies (over temperature sensing)

Consumer Electronics
■ Home weather stations
■ Oven temperature control
■ Air conditioners
■ Pool and spa controls
■ Small appliance controls
■ Fire detector

 Food Handling and Processing
■ Coffee makers
■ Deep fryers
■ Fast food processing
■ Temperature controlled food storage system
■ Thermometers for use in food preparation

 Industrial Electronics
■ IoT Temperature Data Loggers
■ Plastic laminating equipment
■ Solar energy equipment
■ Thermal conductivity measurement
■ Thermostat
■ Welding equipment
■ HVAC
■ Thermocouple compensation

4. Product Structure

5. Serving of the Pipeline and auxiliary temperature sensor

temperature sensor packing with carton box , We also can customized for you if your order need.

6. FAQ

1, are your manufacturer?

We are manufacturer, our factory localed in Shenzhen China.

2, what product you manufacturer have?

Our factory produce temperature sensor for power station,

Stators and cable for industry.

3, how many production lines do you have?

We have 10 production lines in Shenzhen factory.

4, how do you ensure product quality?

We already built a mechanical,electrical,fire and flame retardant laboratory, professional testing engineers.

5, can you send samples?

Yes, we will supply sample before your make the order.
