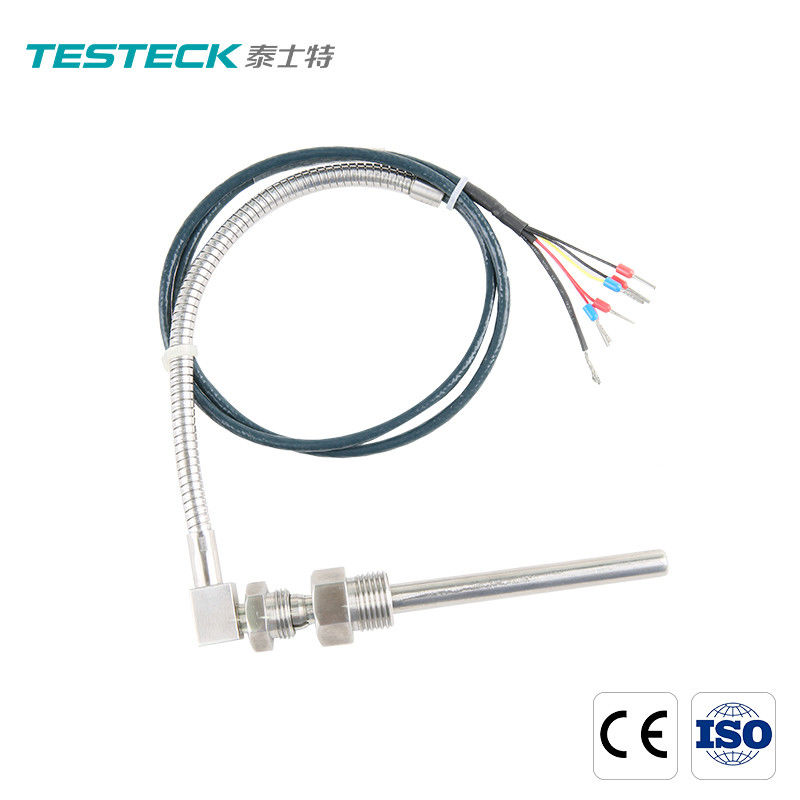

Waterproof 2 Wire Rtd Stainless Steel Thermocouple Type Pt100

Waterproof 2 Wire Rtd Stainless Steel Thermocouple Type Pt100

pt100 temperature sensor stainless steel thermocouple

Integrated RTD measures temperature based on the characteristic of changing resistance of a substance along with temperature. When the medium being measured shows a temperature gradient, the temperature measured is the average temperature of the medium in the range where the temperature sensing element is located.

Industrial integrated RTD is used as a temperature measurement sensor, usually used in conjunction with temperature transmitters, regulators and display instruments to form a process control system. It can directly measure or control the temperature of liquid, steam, gas media and solid surface in various production processes.

1. RTD description

RTD temperature sensor is the use of metal platinum (pt) resistance and temperature with a certain functional relation of temperature sensor,Due to its high accuracy, large measuring range, good reproducibility and stability, etc. That are widely used in medium temperature (-200 ℃ ~ 600 ℃) in the range of temperature measurement.

1.1 Temperature sensing element: imported Pt100 temperature sensing element of thin film platinum resistor.

1.2 Protective tube: According to the type of thermal resistor, the condition of the measured medium and the temperature to be measured, the tubes made of different materials are selected. The tubes of thermal resistor are generally made of carbon steel, various grades of stainless steel, alloy steel and other materials.

1.3 Installation and fixing device: The installation and fixing device is for users to install and fix thermal resistor. It is divided into various forms, such as no fixing device, fixed thread, movable flange and fixed flange.

For more non-standard customized products, please consult Shenzhen Testeck Science and Technology Co., Ltd.

2. Product Parameters

3. Application of Company Products

RTD PT100 and PT1000 can be used in various types of environment and field due to its precision and stability. Below are some of the usage industry:

Pharmaceutical and Laboratories
■ Medicine Vaccine Storage
■ Pharmaceutical Refrigerator and Freezer

Communication and Instrumentation
■ Amplifier over temperature sensing
■ Cellular telephones
■ Copper coil winding
■ Transistor temperature compensation
■ Rechargeable battery packs
■ Oscillator temperature compensation

Consumer Electronics
■ Home weather stations
■ Oven temperature control
■ Air conditioners
■ Pool and spa controls
■ Small appliance controls
■ Fire detector

Food Handling and Processing
■ Coffee makers
■ Deep fryers
■ Fast food processing
■ Temperature controlled food storage system
■ Thermometers for use in food preparation

4. Product Structure

5.Deliver,Shipping And Serving of the Pipeline and auxiliary temperature sensor

temperature sensor packing with carton box , We also can customized for you if your order need.

6.FAQ

1, are your manufacturer?

We are manufacturer, our factory localed in Shenzhen China.

2, what product you manufacturer have?

Our factory produce temperature sensor for power station,

Stators and cable for industry.

3, how many production lines do you have?

We have 10 production lines in Shenzhen factory.

4, how do you ensure product quality?

We already built a mechanical,electrical,fire and flame retardant laboratory, professional testing engineers.

5, can you send samples?

Yes, we will supply sample before your make the order.
