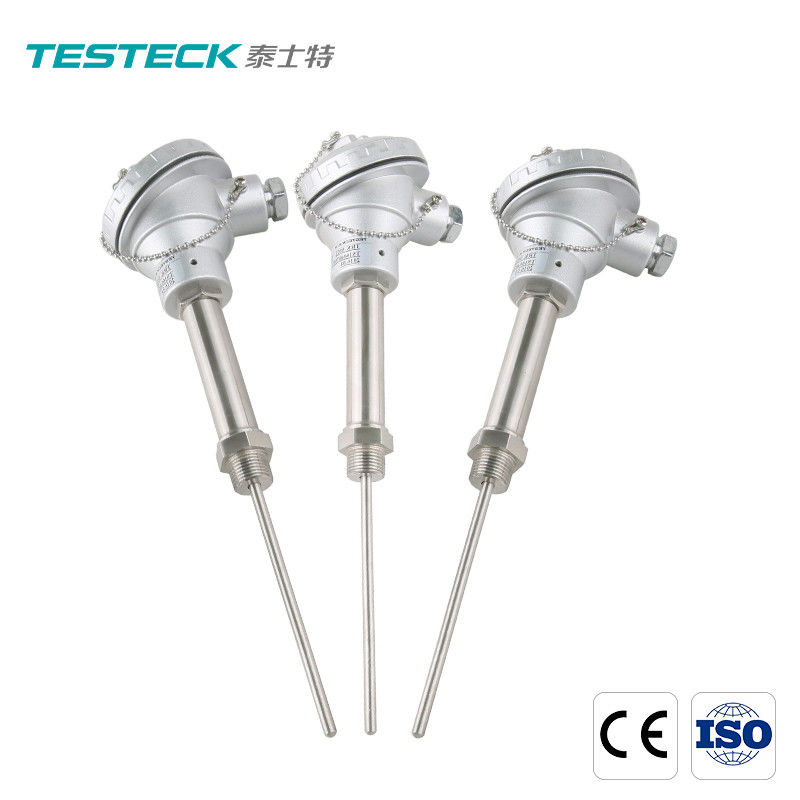

PT100 Waterproof Temperature Sensor With Fixed Bolt Connecting Box

PT100 Waterproof Temperature Sensor With Fixed Bolt Connecting Box

Pt100 Thermal Resistance With Fixed Bolt Type RTD Water-Proof Connecting Box

The screw in thermistor measures the temperature by using the characteristic that the resistance of the material changes with the change of temperature. When there is a temperature gradient in the measured medium, the measured temperature is the average temperature in the medium where the temperature sensing element is located.

Industrial screw in thermistor is used as temperature measurement sensor. It is usually used together with temperature transmitter, regulator and display instrument to form a process control system. It is used to directly measure or control the temperature of liquid, steam, gas medium and solid surface in various production processes.

RTD pt100 temperature sensor Working principle:
Compensation of the thermocouple wires electrode by the two different conductor material
composition. As measuring end and participate in the end there is temperature difference, can
produce thermoelectric power, the instrument will show thermoelectric potential corresponding
temperature value.

1. Screw in thermistor

Industrial screw in thermistor is mainly composed of junction box, protection tube, terminal block, insulated porcelain post and temperature sensing element, and is equipped with various installation and fixing devices.

1) Temperature sensing element: imported thin film platinum resistance PT100 temperature sensing element.

2) Protection tube: according to the type of thermal resistance, the measured medium condition and the measured temperature, the protection tube made of different materials is selected. The protection tube of thermal resistance is generally made of carbon steel, various brands of stainless steel, alloy steel and other materials.

3) Junction box: the junction box of thermal resistance is used to connect the display instrument of temperature sensing element. It is generally made of aluminum alloy and stainless steel, and can be divided into flameproof type, waterproof type and small splash proof type.

4) Wiring board: the wiring board of thermal resistance is generally made of ceramics, which is installed in the junction box and is the signal output end of thermal resistance. It is divided into single branch and double branch.

5) Installation and fixing device: the thermal resistance installation and fixing device is used by users for installation and fixing. It can be divided into non fixing device, fixed thread, movable flange and fixed flange.

For more non-standard customized products, please consult taishite technology.

2, Product parameters

3. Product application

1. Plastic injection molding machinery
2. Food processing equipment
3. Engine and turbine exhaust gas
4. Semiconductor processing
5. Heating treating and metals processing
6. Medical equipment
7. Aerospace industries
8. Packaging equipment
9. Test standards.

FAQ

Q, are your manufacturer?

A, We are manufacturer, our factory localed in Shenzhen China.Our company mainly produces emperature Sensor .

Q, what product you manufacturer have?

A, Our factory produce temperature sensor for power station, Stators and cable for industry.

Q, how many production lines do you have?

A, We have 10 production lines in Shenzhen factory.

Q, how do you ensure product quality?

A, We already built a mechanical,electrical,fire and flame retardant laboratory, professional testing engineers.

Q, can you send samples?

A, Yes, we will supply sample before your make the order.

Q, How about the quality of the managements ?
A, We have a complete quality control system , all of our products will be fully pre-inspection by QC departments before shipping to you .

Q, What is the warranty for your product ?
A, Warranty: 1 years, and lifetime maintenance online after-service.
