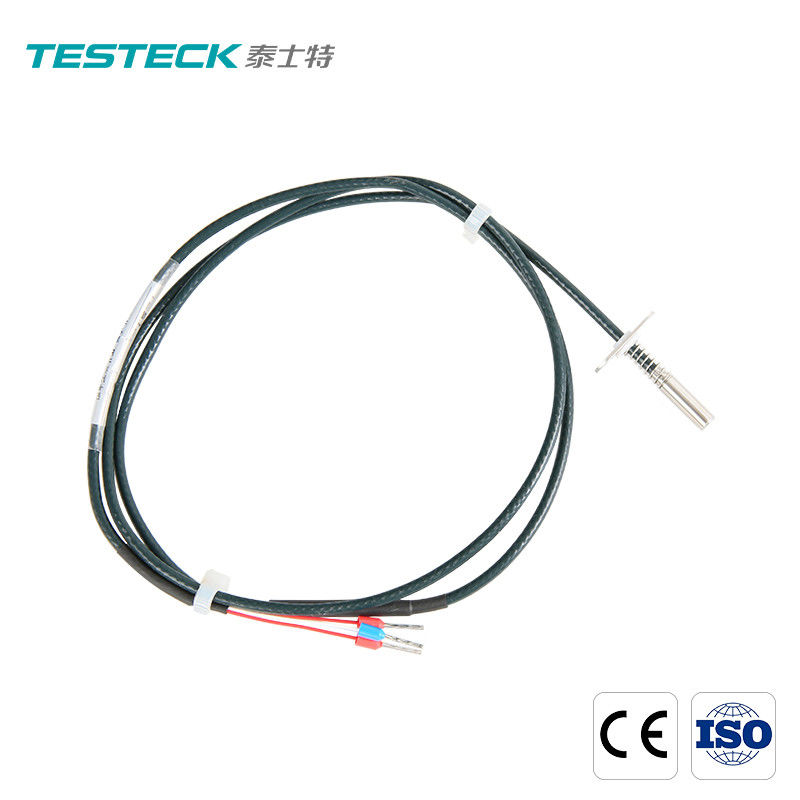

SUS321 2 Wire 3 Wire RTD Temperature Sensor End Face Thermal Resistor

SUS321 2 Wire 3 Wire RTD Temperature Sensor End Face Thermal Resistor

  • SUS321 2 Wire 3 Wire RTD Temperature Sensor End Face Thermal Resistor
SUS321 2 Wire 3 Wire RTD Temperature Sensor End Face Thermal Resistor
Product Details:
Place of Origin: China
Brand Name: Testeck
Certification: CE,ISO
Model Number: TY-C
Payment & Shipping Terms:
Minimum Order Quantity: 10
Price: Agree
Packaging Details: Customized packing
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 5000 pieces each month
Contact Now
Detailed Product Description
Product Name: Surface Temperature Measurement Type: Pt100(customized)
Accuracy Class: A、B Ambient Temperature In Application: -50 - 200℃ (can Be Customized According To Actual Temperature Resistance)
Material Of Probe: SUS304, SUS316, SUS321 (customer Specified) Probe Size: Contact Customer Service
High Light:

3 Wire RTD Temperature Sensor


SUS321 RTD Temperature Sensor


Pt100 rtd 2 wire 3 wire

SUS321 2 Wire 3 Wire RTD Temperature Sensor End Face Thermal Resistor


PT100 Temperature Sensor Probe End Face Thermal Resistance Temperature Measurement Thermocouple K-Type


Thermocouple consists of two wires, each made of different metal, welded together at one end. When the welded point(measuring junction) is heated, a thermoelectromotive force is produced that is proportional of the temperature difference between the welded point and the other end (reference junction).
Therefore, by messuring this thermoelectromotive force either with the reference junction temperature kept constant or by using an automatic compensation curciut, the measuring junction temperature can be measured.
The thermoelectromotive force of a thermocouple is independent of the diameter or length of the wire used and depends only on the type of wire used.


Ⅰ. End-face Thermal Resistor

The industrial end-face thermal resistor is mainly composed of temperature measuring element, external protection tube, compression spring, process connection device, shield extension, and is equipped with various installation and fixing devices.

Temperature sensing element: imported Pt100 temperature sensing element of thin film platinum resistor.

2 Protective tube: According to the type of thermal resistor, the condition of the measured medium and the temperature to be measured, the tubes made of different materials are selected. The tubes of thermal resistor are generally made of carbon steel, various grades of stainless steel, alloy steel and other materials.

3 Installation and fixing device: The installation and fixing device is for users to install and fix thermal resistor. It is divided into various forms, such as compressed plate, flexible thread, etc.

For more non-standard customized products, please consult Shenzhen Testeck Science and Technology Co., Ltd.


Ⅱ. Product Parameters

Specifications Parameters
TY-C End-face thermal resistor
Type Pt100
Accuracy class Class A, B
Ambient temperature in application -50~200℃
Wire system Two-wire, three-wire, and four-wire
Structure of sensor Single/Double
Material of probe SUS304, SUS316, SUS321 (customer specified)
Process connection Compressed plate, flexible thread, etc. (customer specified)


Ⅲ. Application of Company Products

Plastic injection molding machinery
Food processing equipment
Engine and turbine exhaust gas
Semiconductor processing
Heat treating and metals processing
Medical equipment
Aerospace industries
Packaging equipment
Test stands


Ⅳ. Deliver,Shipping And Serving of the

packing with carton box , We also can customized for you if your order need.



Q, are your manufacturer?

A, We are manufacturer, our factory localed in Shenzhen China.Our company mainly produces emperature Sensor .

Q, what product you manufacturer have?

A, Our factory produce temperature sensor for power station, Stators and cable for industry.

Q, how many production lines do you have?

A, We have 10 production lines in Shenzhen factory.

Q, how do you ensure product quality?

A, We already built a mechanical,electrical,fire and flame retardant laboratory, professional testing engineers.

Q, can you send samples?

A, Yes, we will supply sample before your make the order.

Q, How long will you give me the reply?
A, we will contact you as soon as we can.

Q, Could I visit your factory?
A, Sincerely welcome you to visit our factory.

Q, How about the quality of the managements ?
A, We have a complete quality control system , all of our products will be fully pre-inspection by QC departments before shipping to you .

Q, What is the warranty for your product ?
A, Warranty: 1 years, and lifetime maintenance online after-service.
