Testeck Ltd.
Temperature sensor and low smoke halogen free flame retardant high temperature cable manufacturer:www.testeck.com/

|
| Place of Origin: | China |
| Brand Name: | Testeck |
| Certification: | CE，ISO |
| Model Number: | TY-R |
| Minimum Order Quantity: | 10 |
|---|---|
| Price: | Agree |
| Packaging Details: | Customized packing |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 5000 pieces each month |
| Product Name: | Industrial , Temperature Sensor | Type: | K |
|---|---|---|---|
| Accuracy: | ±0.2℃ | Temperature Range: | 0-1000℃ |
| Material Of Probe: | SS304 | Installation Method: | Contact Customer Service |
| Highlight: | SS Probe RTD Temperature Sensor,K Type RTD Temperature Sensor,70mm Spring High Temperature Thermocouple |
||

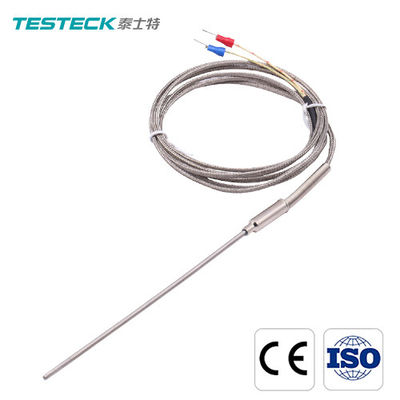

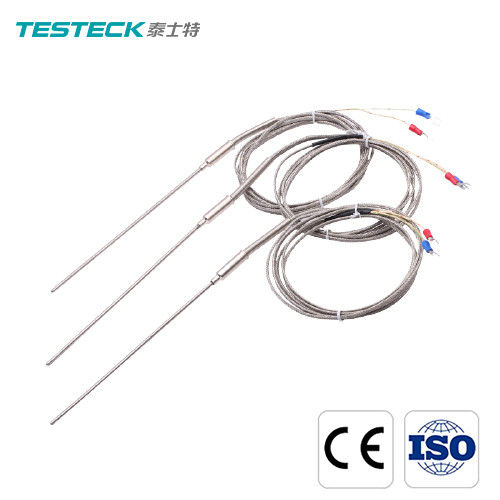

industrial stainless steel probe k type high temperature sensor thermocouple
Thermocouple is a temperature measuring device consisting of two dissimilar conductors that contact each other at one or more spots. It produces a voltage when the temperature of one of the spots differs from the reference temperature at other parts of the circuit
Thermocouples are a widely used type of temperature measurement and control,and can also convert a temperature gradient into electricity. Commercial thermocouples are inexpensive,interchangeable, are supplied with standard connectors, and can measure a wide range of temperatures.
Product Description
industrial stainless steel probe k type high temperature sensor thermocouple
| tube diameter | min 1mm |
| K type | 0-1250℃ |
| E type | 0-400℃ |
| PT100 | 0-500℃ |
| Spring length | 70mm |
| Wiring terminal | 2 wire (K/JE/T),3 wire or 4 wire (PT100) |
| Stainless steel material | Default 304 stainless steel ,customized 2520/3039/316 |
Quick Details
Warranty:
1 year
Certification:
ISO CE ROHS
Customized support:
OEM, ODM
Place of Origin:
Shenzhen, China
Brand Name:
Testeck
Model Number:
thermocouple
Product name:
stainless steel probe k type high temperature sensor thermocouple
Type:
K/J/E/T/PT100
probe:
stainless steel
Media:
Natural Gas, LPG, NG
cable length:
1-5m or customzied
min tube diameter:
3mm
Contact Person: ALix
Tel: 13689565278
