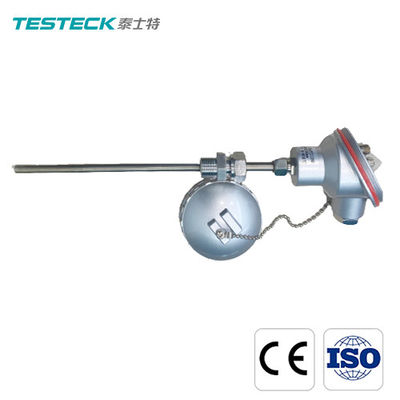

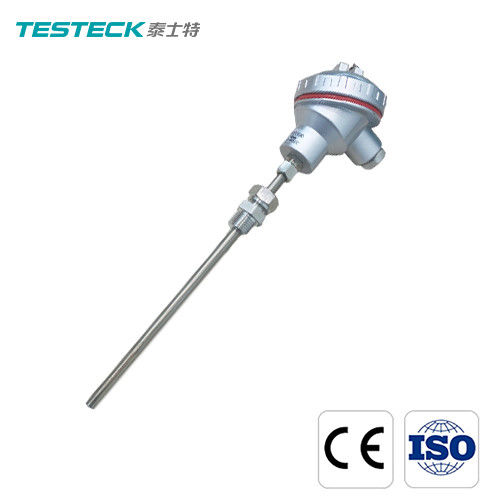

316 Sheathed PT100 Platinum Temperature Sensor

316 Sheathed PT100 Platinum Temperature Sensor

316 Sheathed PT100 Platinum Temperature Sensor
316 Sheathed PT100 Platinum Temperature Sensor
316 Sheathed PT100 Platinum Temperature Sensor
Product Details:
Place of Origin: China
Brand Name: Testeck
Certification: CE,ISO
Model Number: TY-G3
Payment & Shipping Terms:
Minimum Order Quantity: 10
Price: Agree
Packaging Details: Customized packing
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 5000 pieces each month
Contact Now
Detailed Product Description
Model Number: PT100, PT1000, Cu50, PT500 Accuracy: ±0.2℃
Wire Sleeve: Fiberglass /steel Barded Temperature: -50~650℃
Response Time & Wave Length: 8-30s Name: Platinum Rhodium Thermocouple
High Light:

SS316 Sheathed Platinum Temperature Sensor


RTD PT100 Platinum Temperature Sensor


30s Platinum Rhodium Thermocouple

316 Sheathed PT100 Platinum Temperature Sensor


Model Number  PT100, PT1000, cu50, PT500 Accurancy class 1
sheath material SS304/SS316/Incoloy600... Accuracy ±0.2℃
temperature -50~650℃ Wire sleeve Fiberglass /steel barded
mounting flange/thread/none Response time & Wave length 8-30s
tube length 50mm/100mm or customized


Product Description

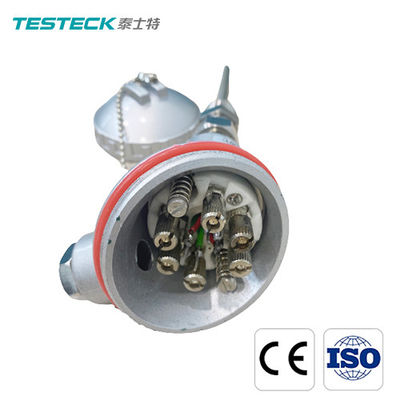

Duplex Six Wire SS316 sheathed RTD PT100 platinum temperature sensor with Adjustable Screw

A thermocouple is a temperature-measuring device consisting of two dissimilar conductors that contact each other at one or more spots. It produces a voltage when the temperature of one of the spots differs from the reference temperature at other parts of the circuit. Thermocouples are a widely used type of temperature sensorfor measurement and control,and can also convert a temperature gradient into electricity. Commercial thermocouples are inexpensive,interchangeable, are supplied with standard connectors, and can measure a wide range of temperatures. In contrast to most other methods of temperature measurement, thermocouples are self powered and require no external form of excitation


Model Graduation mark Temperature measured Mounting& Fixing
TWRK K 0-1300°C


1.without Fixing Device

2.Threaded Connector

3.Movable Flange

4.Fixed Flange
5.Elbow Tube Connection

6.Threaded Cone Connection
7.Straight Tube Connection
8.Fixed Threaded Tube Connection
9.Movable Threaded Tube Connection

TWRE E 0-700°C
TWRJ J 0-600°C
TWRT T 0-400°C
TWRS S 0-1600°C
TWRR R 0-1600°C
TWRB B 0-1800°C
TWRM N 0-1100°C


Classification Type Standard Model Features Temperature Material Use Requirement Note
Resistance C TWZP Special 0~2300℃ W/Re Vacuum field ceramics Tube
PT10 TWZP Normal -200~650℃ Pt Stable SS304,316L Tube
PT100 TWZP Normal -200~500℃ Pt With Different Range
PT1000 TWZC -200~500℃ Pt
Cu50 TWZC Normal -50~100℃ Cu Temperature range
Cu100 TWZC -50~100℃ Cu
PT500 TWZP Special -200~650℃ Pt
PT200 TWZP -200~650℃ Pt
Thermistor NTC   Low Accurcy



1. Widely Used In Science and Industry
2. Temperature Measurement for kilns

3.Gas Turbine Exhaust Application
4. Used For Diesel Engines and Other Industrial Processes


316 Sheathed PT100 Platinum Temperature Sensor 0
