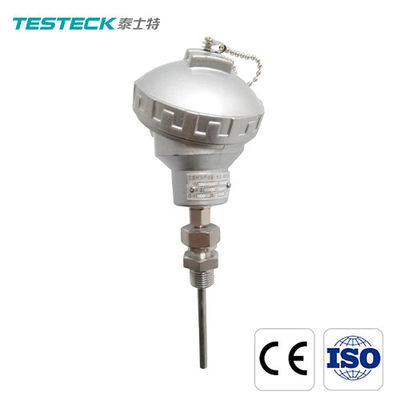

Movable Clamp Threaded Armored RTD Temperature Sensor Type K Thermocouple

Movable Clamp Threaded Armored RTD Temperature Sensor Type K Thermocouple

Movable Clamp Threaded Armored RTD Temperature Sensor Type K Thermocouple
Movable Clamp Threaded Armored RTD Temperature Sensor Type K Thermocouple
Movable Clamp Threaded Armored RTD Temperature Sensor Type K Thermocouple
Product Details:
Place of Origin: China
Brand Name: Testeck
Certification: CE,ISO
Model Number: TY
Payment & Shipping Terms:
Minimum Order Quantity: 10
Price: Agree
Packaging Details: Customized packing
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 5000 pieces each month
Contact Now
Detailed Product Description
Product Name: Industrial , Temperature Sensor Thermocouple Type: K,N,E,J,T,S,B,R
Core Number: 1,2 Temperature Range: 0-800℃
Sheath Material: 304,316,310s, Incoloy600 Etc. Installation: Thread/flange
High Light:

Movable Clamp RTD Temperature Sensor

,

Threaded Armored RTD Temperature Sensor

,

20mA Thread Type K Thermocouple

Professional Factory Original Made movable clamp threaded device armored thermocouple thermocouple wire type k



overviews

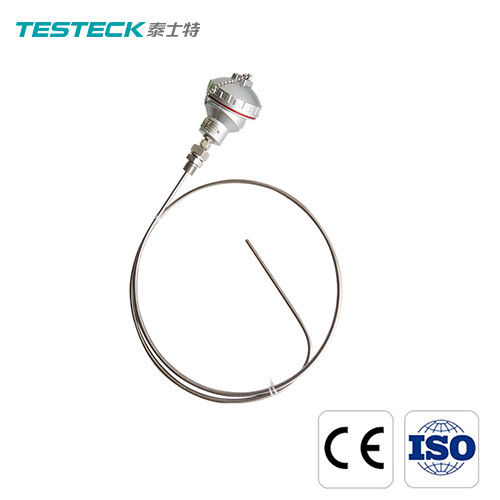

Armoured thermocouple has to bend, high temperature resistant, thermal response time characteristics of fast and strong and durable, it as well as fabricated thermocouple used in industry, as measure temperature sensor, and usually display meter, recording meter and electronic regulator, at the same time, also can be used as a prefabricated thermocouple temperature sensing element, it can directly measure all kinds of production process from 0 ℃ ~ 800 ℃ in the scope of liquid, steam and gas medium, as well as the temperature of the solid surface.

Specification thermocouple

Classify Armored thermocouple Assembly Thermocouple
Model TYK TY
Thermocouple type K,N,E,J,T,S,B,R K,N,E,J,T,S,B,R
Thermocouple diameter (mm) φ3,φ4 ,φ4.5 ,φ5,φ6 ,φ8 φ12,φ16,φ20,φ25,etc.
Sheath material 304,316,310s, Incoloy600 etc. 304,316,310s, Incoloy600 etc.
Probe structure Grounded,Ungrouned,Exposed(TY)
Core number 1,2

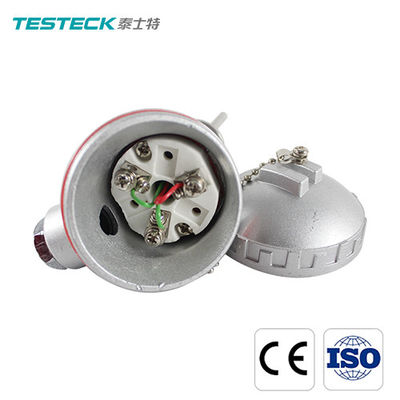

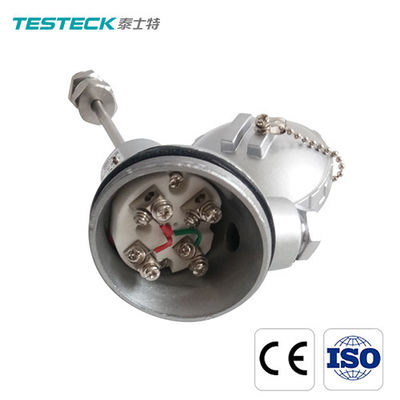

Terminal box(optional) Cast aluminum,Stainless steel
Accuracy ±1.5℃/±0.5℃ or 0.4%|t|℃
Electrical connection Thread
Explosion proof level
Installation Thread/flange
Output Signal mV,4-20mA

Model and tolerance

Conductor Model Type Use temperature°C
(short time)
Use temperature°C
(long time)
Ni-Cr / Ni-Si TYKK k 0-1200°C 0-900°C
Ni-Cr-Si / Ni-Cr-Mg TYKN N 0-1000°C 0-1000°C
Ni-Cr / Ni-Cu TYKE E 0-700°C 0-600°C
Fe / Cu-Ni TYKJ J 0-600°C 0-500°C
Cu / Cu-Ni TYKT T 0-400°C 0-350°C
Pt-Rh10 / Pt Pt-Rh10 / Pt S 0-1600°C 0-1300°C
Pt-Rh13 / Pt TYKR R 0-1600°C 0-1300°C
Pt-Rh30 / Pt6 TYKB B 0-1800°C 0-1600°C
