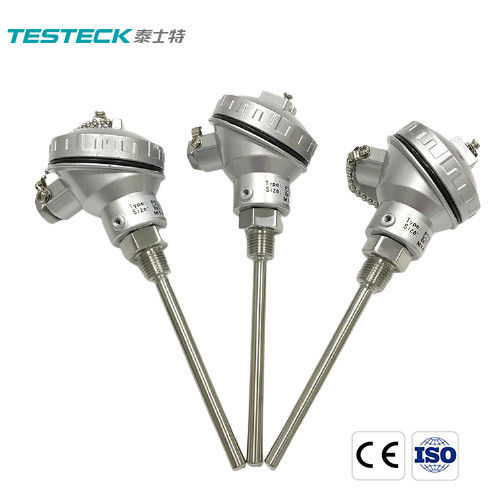

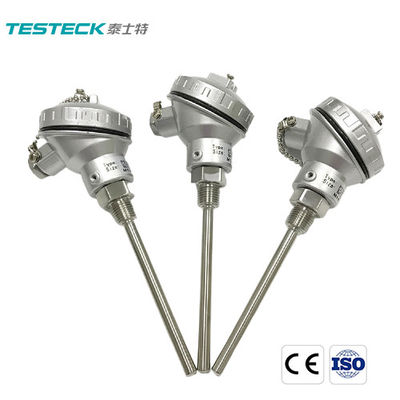

Name: Fixed Thread Platinum Resistance RTD With Junction Box
Brand: Testeck
SKU: TY-G2

Home Products RTD Temperature Sensor

Fixed Thread Platinum Resistance RTD With Junction Box

Product Details:

Place of Origin:	China
Brand Name:	Testeck
Certification:	CE，ISO
Model Number:	TY-G2

Payment & Shipping Terms:

Minimum Order Quantity:	10
Price:	Agree
Packaging Details:	Customized packing
Payment Terms:	T/T, Western Union, MoneyGram
Supply Ability:	5000 pieces each month

Contact Now

Detailed Product Description

Type:	Pt100	Common Accuracy:	Class A
Accuracy:	±0.2℃	Temperature Range:	-200～500℃
Response Time & Wave Length:	8-30s	Material Of Probe:	304

Series Fixed Thread Platinum Resistance RTD With Junction Box

TY-G2 series threaded connection platinum resistance RTD consists of three parts: junction box, fixed thread and protective tube. The product can be widely used to measure air temperature, liquid temperature, oil temperature and surface temperature of objects.

Model

Technical Parameters

Structural diagram

TY-G2

1. Platinum resistor: Pt100, Pt500, Pt1000 Temperature measurement range: (-80～500)℃

2. Common accuracy:

Class A: ±(0.15+0.002|t|)℃

Class B: ±(0.30+0.005|t|)℃

|t|---Absolute value of measured temperature

4. Normal pressure, for working conditions with pressure, please indicate the size of pressure

Fixed Thread Platinum Resistance RTD With Junction Box 0

With cold end Without cold end

Model Selection Table
TY-G2									Model of platinum thermal resistor
	B□	1=Pt100 5=Pt500 10=Pt1000							Type of sensor
		T□	1=-50~80 2=0~100 2=-50~200 3=-50~250 Designate						Temperature range (℃)
			P□	B= CLASS B A= CLASS A Designate					Sensor accuracy
				N□	0= No 1=Yes, C=L+150 (Standard supply products, and it can also be specified) Designate				With or without cold end
				C□	100=100 250=250 350=350 600=600 Designate				Total length of protective tube (mm)
				D□	4=4 8=8 12=12 16=16 Designate				Diameter of protective tube
				M□	8=M8X1 10=M10X1 12=M12X1.5 16=M16X1.5 Designate				Thread specification
				S□	1=SUS321 4=SUS304 6=SUS316 Designate				Material of protective tube
					E□	2= two-wire 3= three-wire 4= four-wire			Wire system
						G□	1=Blowout control 2=Waterproof Designate		Type of junction box
							Z□	0= no, which can be omitted 2= armor type 3= Antiseptic treatment Designate	Special requirements
Remarks: The parameter requirements specified by the user can be directly marked with numbers or words. Model *example: TY-G2-B1- T3- PA- N0/C350/D4/M10/S4- E3- G2 Description: PT100, temperature measurement range -50~200C, accuracy class A, three-wire system, diameter of protective tube 4mm, thread M101 without cold end, length 350mm, waterproof junction box
