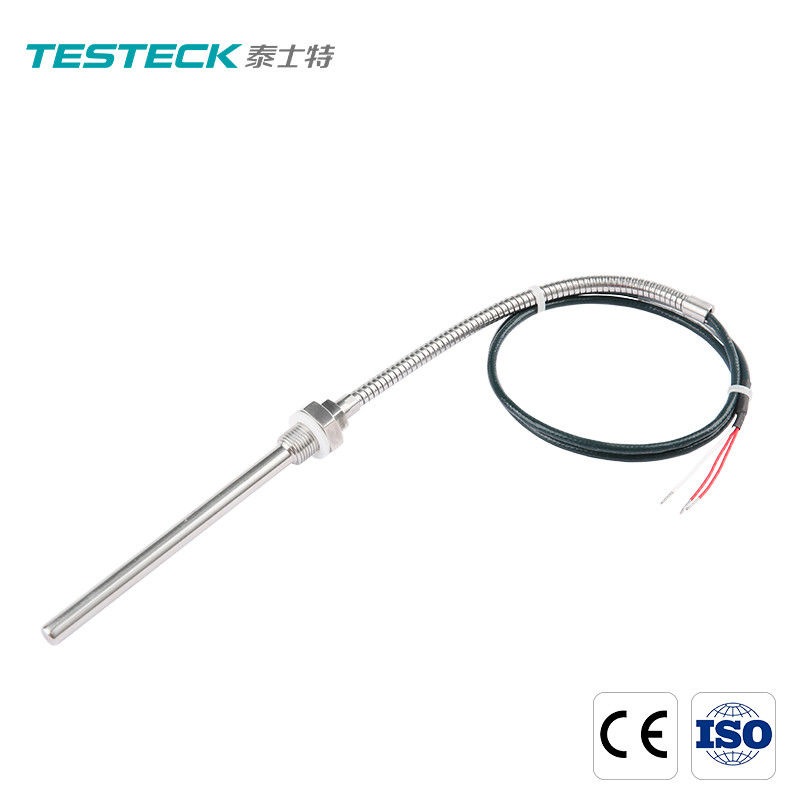

ISO PT100 IP54 Flexibl Threaded Metal Probe SUS321 Thermistor Temperature Sensor

ISO PT100 IP54 Flexibl Threaded Metal Probe SUS321 Thermistor Temperature Sensor

ISO PT100 IP54 Flexibl Threaded Metal Probe SUS321 Thermistor Temperature Sensor
ISO PT100 IP54 Flexibl Threaded Metal Probe SUS321 Thermistor Temperature Sensor
ISO PT100 IP54 Flexibl Threaded Metal Probe SUS321 Thermistor Temperature Sensor
Product Details:
Place of Origin: China
Brand Name: Testeck
Certification: CE,ISO
Model Number: TY-T
Payment & Shipping Terms:
Minimum Order Quantity: 10
Price: Agree
Packaging Details: Customized packing
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 5000 pieces each month
Contact Now
Detailed Product Description
Type: PT100 Ambient Temperature In Application: -80~300℃
Graduation: Probe In Temperature Sensor Structure Of Sensor: Single/Double
Probe Diameter: Contact Customer Service Installation Method: Contact Customer Service
High Light:

ISO PT100 Threaded Metal Probe

,

IP54 Flexible Threaded Metal Probe

,

SUS321 Thermistor Temperature Sensor

Threaded Metal Probe High Precision Thermistor Temperature Sensor



The temperature measurement probe part of TY-T series platinum resistance RTD is composed of two parts, fixed thread and temperature measurement protection tube. Since a variety of temperature measuring tubes of thread specifications and length and diameter are available, the RTD with fixed thread has strong applicability and flexibility, and can be widely used in ambient temperature, fluid pipelines and temperatures that need to be fixed by thread installation.



Model Technical parameters Outline structure diagram

   TY-T

1. Platinum resistance: Pt100, Pt500, Pt1000 Temperature measurement range: (-80~300 )℃

2. Commonly used accuracy: Class A: ± (0.15+0.002|t| )℃ CLASS B: ± (0.30+0.005|t| )℃

|t|---Absolute value of measured temperature

3. Normal pressure, for working conditions with pressure, please indicate the pressure

ISO PT100 IP54 Flexibl Threaded Metal Probe SUS321 Thermistor Temperature Sensor 0



Model Selection Table

   TY-T

  Model of platinum thermal resistor
  B□ 1=Pt100 5=Pt500 10=Pt1000 Type of sensor




T□



1=-50~80  2=0~100  3=-50~200  4=-50~250 Designate

Temperature range (℃)
  P□ B= Class B A= Class A Designate Sensor accuracy




L□

  30=30 45=45 60=60 150=150 Designate

Insertion length (mm)



D□

  3=3 4=4 6=6 8=8 Designate

Diameter of protective tube (mm)





M□

8=M8X1 10=M10X1

12=M12X1.5 16=M16X1.5

Designate

Thread specification



S□

1=SUS321 4=SUS304 6=SUS316

Designate

Material of protective tube
  Y□ 1=1000 2=2000 Designate Cable length (mm)




E□

2= two-wire 3= three-wire 4= four-wire

Wire system





F□

1= PVC (-20~80℃)

2= TPU (-50~100℃)

3= (-50~250℃)

Designate

Lead material, the value in parentheses is the temperature range of lead



H□

0= no, which can be omitted 1= both Wire shield/cable sheath




 Z□

0= no, which can be omitted

1= cable protection spring

2= armor type

3= Antiseptic treatment

4= Dual tube Designate

 Special requirements

Remarks: The parameter requirements specified by the user can be directly marked with numbers or words. Model example: TY-T -B1- T3- PA- L30/D4/M10/S4- Y1- E3/F3/H1

Description: PT100, temperature measurement range -50 ~ 200 ℃ , accuracy class A, insertion depth 30mm,

diameter of protective tube 4mm, thread specification is M10×1, lead length 1m, three-wire system
