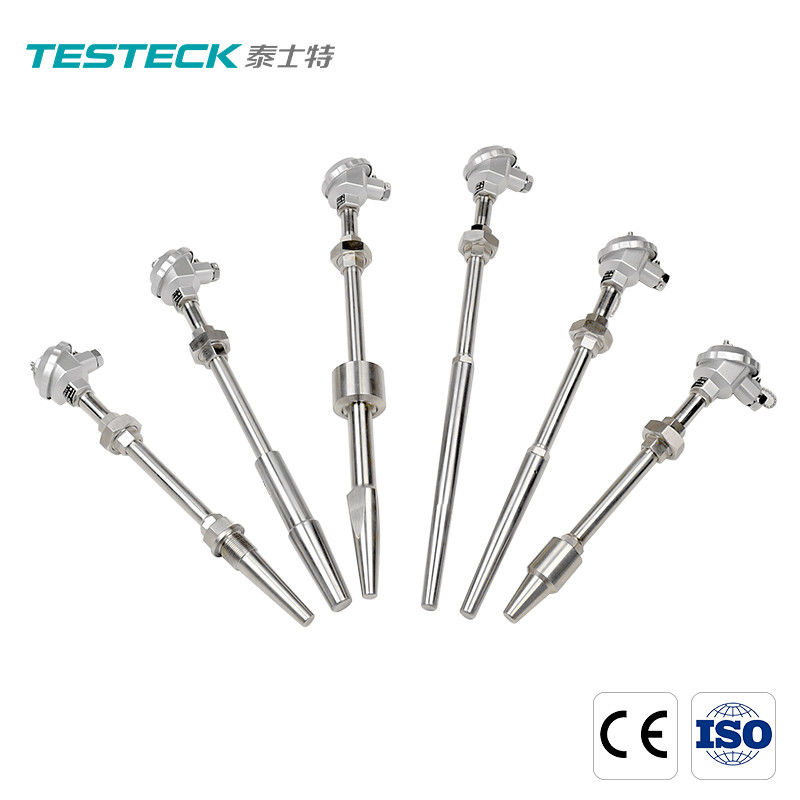

Steam Turbine Boiler Temperature Sensor E Type Thermocouple PT100

Steam Turbine Boiler Temperature Sensor E Type Thermocouple PT100

  • Steam Turbine Boiler Temperature Sensor E Type Thermocouple PT100
Steam Turbine Boiler Temperature Sensor E Type Thermocouple PT100
Product Details:
Place of Origin: China
Brand Name: Testeck
Certification: CE,ISO
Model Number: TY-S
Payment & Shipping Terms:
Minimum Order Quantity: 10
Price: Agree
Packaging Details: Customized packing
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 5000 pieces each month
Contact Now
Detailed Product Description
Index Number: PT100 K / E Protection Tube Material: According To Customer Requirements
Installation Method: Contact Customer Service Measuring Range: PT100 -200~450℃ CU50 -50~150℃ ,K 0~600℃ E 0~400℃
Thermal Response Time: <15S Protection Level: IP55/IP65
High Light:

E Type Boiler Temperature Sensor

,

Steam Turbine Boiler Temperature Sensor

,

E Type Thermocouple PT100

Steam Turbine Boiler Temperature Sensor E Type Thermocouple PT100



Steam Turbine Steam Temperature Measurement Various Styles Support Customization



Turbine steam temperature measurement points are the focus of the temperature measurement of the entire coal-fired generating set, which mainly include the main steam temperature, the steam temperature in the reheated hot section, and the steam temperature in the reheated cold section.



Steam turbine steam temperature measurement



1. Product Introduction of the Steam turbine steam temperature measurement

The measurement points of the steam extraction system of the steam turbine include the steam temperature at the inlet of each high-pressure heater, the steam temperature at the inlet of the deaerator, and the steam temperature of the small steam turbine. Generally, medium temperature and medium pressure thermowell thermocouples are used, and the temperature sleeve material is 1Cr18Ni9Ti.



2. Product Parameter (Specification) of the Steam turbine steam temperature measurement

Turbine steam system temperature



Index number Measuring point position Parameter Protection tube material Current speed connect Depth

K

E

Pt100

steam

P=30MPa

T=610℃

P92 ≤100m/s welding

50

75

100

150

Reheat section

P=8MPa

T=610℃

P92
Reheat cold section

P=30MPa

T=410℃

1Cr18Ni9Ti



Index number Measuring point position Parameter Protection tube material Current speed connect Depth

K

E

Pt100

High entrance

P=14.7MPa

T=580℃



1Cr18Ni9Ti

316

≤30m/s



welding

50

75

100

150

200

250

300

400

500

Deaerator inlet
Small steam turbine



3. Product Feature And Application of the Steam turbine steam temperature measurement

It is Suitable for monitoring the stream motor temperature.



4. Product Details of the Steam turbine steam temperature measurement

The cable insulation layer is made of high-temperature and tension resistant materials.In particular, magnetization resistance, temperature resistance and insulation performance shall be taken into consideration for packaging materials.
