Testeck Ltd.
Temperature sensor and low smoke halogen free flame retardant high temperature cable manufacturer:www.testeck.com/
 |
| Place of Origin: | China |
| Brand Name: | Testeck |
| Certification: | CE，ISO |
| Model Number: | TY-S05 |
| Minimum Order Quantity: | 10 |
|---|---|
| Price: | Agree |
| Packaging Details: | Customized packing |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 5000 pieces each month |
| Graduation: | PT100 | Mating Times: | >3000 |
|---|---|---|---|
| Humidity: | 95% At 60℃ | Temperature Range: | -50℃ ~ 250℃ |
| Anti-vibration: | 10 ~ 2000Hz,15g | Protection Level (mated): | IP68 |
| High Light: | IP68 Boiler Temperature Sensor,2000 Hz Boiler Temperature Sensor,IP68 PT100 Temperature Sensor |
||

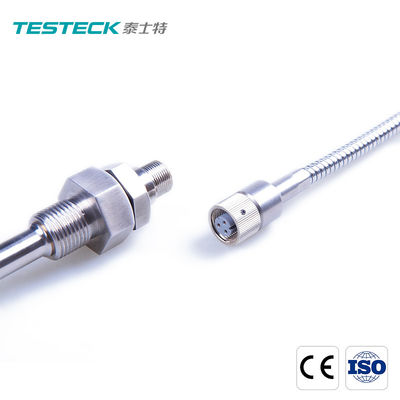

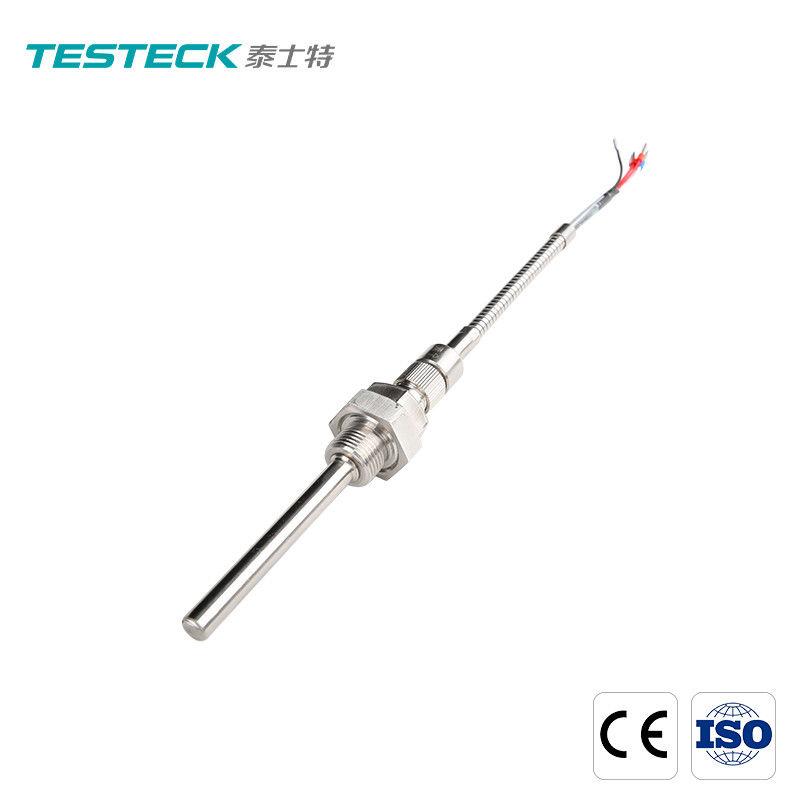

IP68 Boiler Temperature Sensor Quick Connector Temperature Measurement
Steam Turbine Bearing Quick Connector Temperature Measurement
Turbine oil return temperature and cooler oil temperature mainly use thermal resistance for signal transmission, bimetallic thermometer is displayed on the spot, it is recommended to use anti-vibration and anti-leakage structure to ensure the long-term stability of temperature measurement
steam turbine bearing quick connector temperature measurement
1. Product Introduction of the steam turbine bearing quick connector temperature measurement
Solve the problem of rewiring the calibration probe during maintenance, which greatly accelerates the maintenance progress and reduces the difficulty of maintenance.
Once the wiring in the oil tank is completed, if the probe needs to be calibrated during maintenance, just loosen the connector and take off the probe, and the wiring in the oil tank can be kept intact.
To install this sensor in the oil tank, you can complete the wiring separately, then install the probe, and then connect the cable to the probe.
When installing and disassembling the connector, you only need to loosen the external connection ring, eliminating the tedious steps of stripping and wiring.
The connector thread and the probe thread are reversed. When the external connection ring is loosened, the probe and the rear cable will not follow the rotation
2. Product Parameter (Specification) of the steam turbine bearing quick connector temperature measurement
| Mating times | >5000 |
| Humidity | 95% at 60℃ |
| Temperature range | -55℃ ~ 250℃ |
| Anti-vibration | 10 ~ 2000Hz,15g |
| Impact resistance | 100g, 6ms |
| Salt spray corrosion test | >144h |
| Protection level (mated) | IP68 |
| Shielding | >75db(10Mhz) / >40db(1Ghz) |
3. Product Feature And Application of the steam turbine bearing quick connector temperature measurement
Temperature monitoring of each bearing bush and oil tank of hydro-generator.
4. Product Details of the steam turbine bearing quick connector temperature measurement
Measuring anti-vibration and anti-leakage structure to ensure long-term stability of temperature ,turbine oil return temperature and cooler oil temperature mainly use thermal resistance for signal transmission, bimetallic thermometer is displayed on the spot
5.delivery, shipment and service of temperature sensors
The temperature sensor is packed in cartons. If you need, we can also make it for you.
6.FAQ
1, are your manufacturer?
We are manufacturer, our factory localed in Shenzhen China.
2, what product you manufacturer have?
Our factory produce temperature sensor for power station,
Stators and cable for industry.
3, how many production lines do you have?
We have 10 production lines in Shenzhen factory.
4, how do you ensure product quality?
We already built a mechanical,electrical,fire and flame retardant laboratory, professional testing engineers.
5, can you send samples?
Yes, we will supply sample before your make the order.
