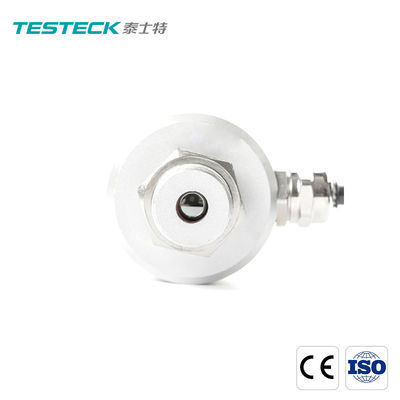

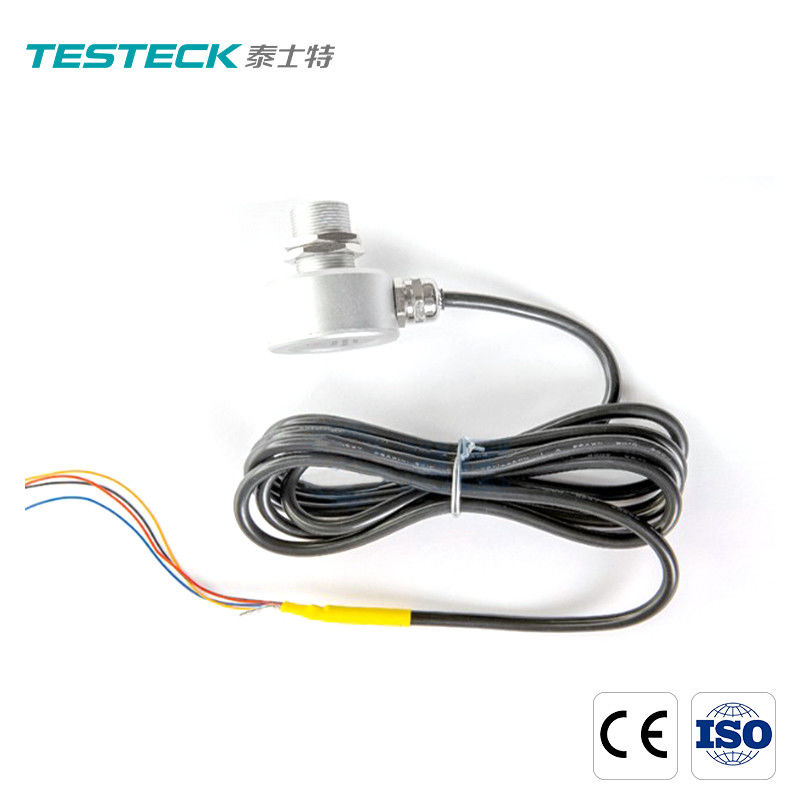

Short Wave Online IR Thermometer Sensor Non Contact Temperature Sensing Probe
Short Wave On Line Infrared Thermometer Non Contact Temperature Sensing Probe
The infrared thermometer can be used to, without touching the object, calculate the surface temperature of the object through the infrared radiation intensity emitted by the object, and can quickly measure objects that are difficult to approach or move from a long distance.
It is professionally applied to measure the surface temperature of bright or polished metal objects, and has ideal temperature measurement effect on heated red or reflective objects.
Ⅰ. Internal structure
Integrated by lens, spectral filter, detector, electronic circuit, etc
Ⅱ. Product Parameters
| Product name | Online infrared thermometer/temperature sensor |
| Temperature range | -20-1200°C , optional |
| Spectral range | 8~14μm |
| Optical resolution | 15:1 |
| Response time | 75ms~300ms optional |
| Emissivity | 0.95 fixed |
| Temperature measurement accuracy | Measured value ±1% or +1℃, whichever is greater |
| Repeated accuracy | Measured value ±0.5 or ±0.5℃, whichever is greater |
| Power supply | 12-24VDC |
| Maximum current | 50MA |
| Output signal | 4-20MA |
| Protection level | IP65(NEMA-4) |
| Ambient temperature | 0~60℃ |
| Storage temperature | -20~80℃ |
| Relative humidity | 10-95% (no condensation) |
| Material of shell | Aluminum alloy |
| Dimensions | 18mm, installation diameter *44mm long |
| Cable length | 2M standard (the cable length can be extended or customized) |
Ⅲ. Application field
Asphalt, rubber, ceramics, water temperature, graphite, induction cooker, tea maker, roller, floor, glass, pancake maker, food, plastic, printing and dyeing, textile, paper, coal, chemical industry, non-glossy metal.
Ⅳ. delivery, shipment and service of temperature sensors
The temperature sensor is packed in cartons. If you need, we can also make it for you.
