| Place of Origin: | China |
| Brand Name: | Testeck |
| Certification: | CE，ISO |
| Model Number: | YT-C*A |
| Minimum Order Quantity: | 10 |
|---|---|
| Price: | Agree |
| Packaging Details: | Customized packing |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 5000 pieces each month |
| Spectral Range: | 1.0~1.6μm | Emissivity: | 0.95 Fixed |
|---|---|---|---|
| Optical Resolution: | 100:1 | Output Signal: | 4-20MA |
| Protection Level: | 0~60℃ | Temperature Measurement Accuracy: | ±1% Or ±1℃ (ambient Temperature: 23℃±0.5℃) |
| High Light: | IP65 Non Contact Thermometer Sensor,SUS304 Non Contact Thermometer Sensor,0.95 Emissivity Infrared Thermometer Sensor |
||

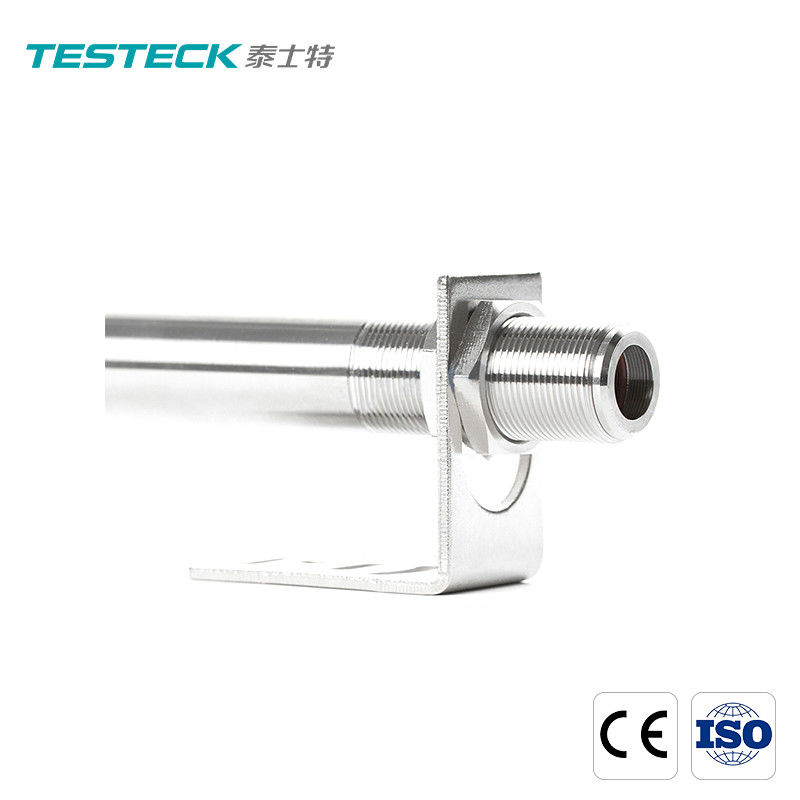

High Precision Non-Contact Infrared Temperature Measuring Probe For Industry
touchless On line short wave infrared thermometer temperature sensor metal high frequency heating flame temperature non-contact
The infrared thermometer can be used to, without touching the object, calculate the surface temperature of the object through the infrared radiation intensity emitted by the object, and can quickly measure objects that are difficult to approach or move from a long distance.
It is professionally applied to measure the surface temperature of bright or polished metal objects, and has ideal temperature measurement effect on heated red or reflective objects.
Ⅰ. Internal structure
Integrated by lens, spectral filter, detector, electronic circuit, etc
Ⅱ. Product Parameters
| Product name | Online infrared thermometer/temperature sensor |
| Spectral range | 1.0~1.6μm |
| Optical resolution | 100:1 |
| Response time | YT-C*A series: 10ms; YT-C*AJ series: 30ms |
| Emissivity | 0.95 fixed |
| Temperature measurement accuracy | ±1% or ±1℃ (ambient temperature: 23℃±0.5℃) |
| Repeated accuracy | ±0.5% or ±0.5℃ (ambient temperature: 23℃±0.5℃) |
| Power supply | 12-24VDC |
| Maximum load | 750 ohm (24VDC) |
| Output signal | 4-20MA |
| Protection level | IP65(NEMA-4) |
| Ambient temperature | 0~60℃ |
| Storage temperature | -20~80℃ |
| Relative humidity | 10-95% (no condensation) |
| Material of shell | 304 stainless steel |
| Dimensions | M18*138MM |
| Cable length | 1.5 standard (can be extended) |
| Note: YT-C*AJ series, green coaxial double laser aiming (you can touch the metal part at the end of the thermometer to light up the laser, or touch the negative pole of the power supply with the external lead to light up the laser. The laser supports automatic delay extinguishing) | |
Ⅲ. Application field
It is professionally applied to measure the surface temperature of bright or polished metal objects, and has ideal temperature measurement effect on heated red or reflective objects.
This product is suitable for such fields as forging, quenching, heat treatment, steel, copper, graphite, glass, metallurgy, furnace, ion plating, wire, hot pressing sintering, medium and high frequency.
Ⅳ. product mix
