Testeck Ltd.
Temperature sensor and low smoke halogen free flame retardant high temperature cable manufacturer:www.testeck.com/
 |
| Place of Origin: | China |
| Brand Name: | Testeck |
| Certification: | Iris，CRCC，EN |
| Model Number: | KFVR |
| Minimum Order Quantity: | 1000 |
|---|---|
| Price: | agree |
| Packaging Details: | Customized packing |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 5000 pieces each month |
| Model Number: | WDZN(A-D)-KTGJYP | Insulation: | Ceramic Silica Gel |
|---|---|---|---|
| Sheath: | Polyolefin | Number Of Cores : | 1～61 |
| Type: | Insulated | Conductor Type: | Stranded |
| High Light: | Tinned Copper Core Power Station Cable,polyolefin Power Station Cable,PVC Sheathed Control Flexible Wire |
||

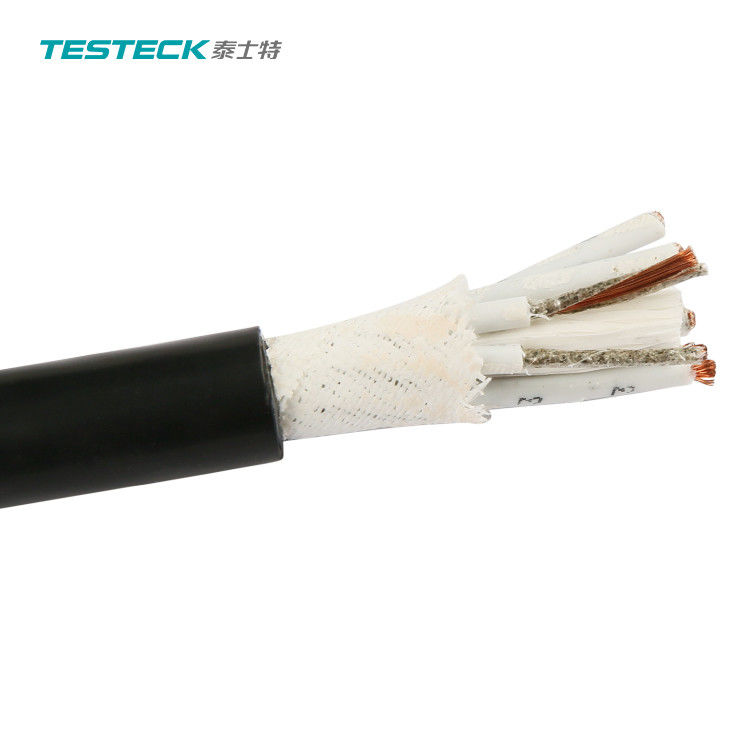

Tinned Copper Core Power Station Cable PVC Sheathed Control Flexible Wire
Tinned copper core fluoroplastic insulated PVC sheathed flame retardant control flexible cable
Under fire conditions, the smoke generated by cable combustibles is extremely low, preventing secondary disasters
Under fire conditions, this type of cable has the characteristics of preventing flame burning
Power station fire resistant control cable
1. Product Introduction of the Power station fire resistant control cable
Under fire conditions, maintain the circuit to work continuously for 90 minutes or 120 minutes
Using ceramic silicone insulation system, it can withstand fire-fighting water spray for 15 minutes, the circuit still works continuously under fire conditions, and the smoke generated by the cable combustibles is extremely low, preventing secondary disasters
Under fire conditions, this type of cable has the characteristics of preventing flame burning
2. Product Parameter (Specification) of the Power station fire resistant control cable
| model | name | Manufacturing scope |
| Z(A-D)N-KVVP | Fire resistant and flame retardant A-D 70 ℃ PVC insulated PVC sheathed shielded control cable |
2～61core
0.75～10mm²
|
| WDZN(A-D)-KYJYP | Fire resistant low smoke halogen free flame retardant 90 ℃ cross linked polyolefin insulated polyolefin sheathed shielded control cable | |
| WDZN(A-D)-KTGJYP |
Fire resistant low smoke halogen free flame retardant 90 ℃ cross linked ceramic silica gel insulated polyolefin sheathed shielded control cable |
3. Product Feature And Application of the Power station fire resistant control cable
This fire-resistant cable is mainly used in various emergency control equipment, central control rooms, safe passages, lighting, and power transmission lines for automatic fire extinguishing.
4. Product Details of the Power station fire resistant control cable
GB/T9330-2008 Plastic insulated control cable
GB/T19666-2008 general rules for flame-retardant and fire-resistant cables
EN50200-2015 Fire resistance test method for unprotected small cables for emergency circuits
