Testeck Ltd.
Temperature sensor and low smoke halogen free flame retardant high temperature cable manufacturer:www.testeck.com/

|
| Place of Origin: | shenzhen |
| Brand Name: | Testeck |
| Certification: | Iris,EN,CE |
| Model Number: | WDZN(A-D)-TG |
| Minimum Order Quantity: | 100 |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Customized packing |
| Delivery Time: | 5-10 |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 5000 pieces each month |
| Rated Voltage: | 300V | Insulation Layer: | FEP |
|---|---|---|---|
| Conductor Material: | Tinned Copper | Insulation Material: | XLPE |
| Sheath Material: | Polyolefin | Application: | Telecommunication |
| Type: | Low/medium/high Voltag | Jacket: | PUR |
| High Light: | 300V Fire Resistant Cable,300V Flame Retardant Cable,300V Fire Retardant Cable |
||

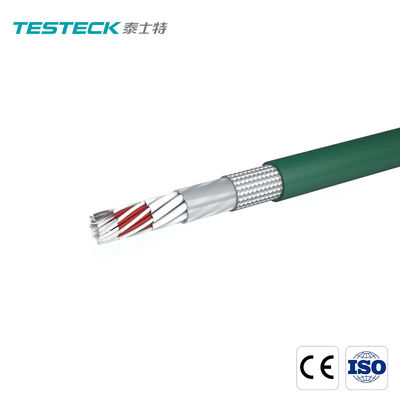

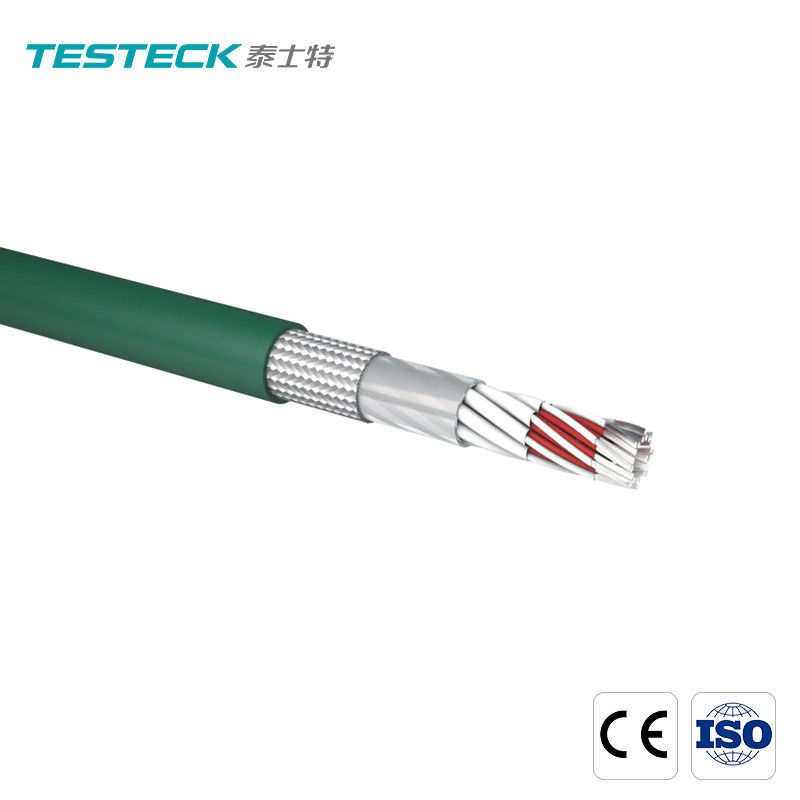

Power Station 3 Wires Fire Resistant Cable Line 300V Rated Voltage
Testeck Power Station Fire Resistant Power Cable
1. Product Introduction
Taking into account that the cable from the sensor to the terminal box uses a cable with a small resistance between the wires (0.05 ohm per 100 meters), it is ensured that the overall accuracy of the Pt100 platinum resistance A can be achieved with the sensor. Therefore, multi-component cables are used from the terminal box to the panel, and the line resistance of each group is also less than 0.05 ohms per 100 meters, so that the entire measurement loop can reach Class A accuracy.
The cable conductor is made of silver-plated copper, which is resistant to oxidation, reduces contact resistance, greatly improves stability, and improves the reliability of the temperature measurement system.High-performance FEP is used for insulation, which reduces the cable outer diameter.The outer sheath is made of cyanide-butadiene polyvinyl chloride composite polymer material, which has oil resistance, softness , rodent bite resistance and strong mechanical properties.
2. Product Parameter (Specification)
No./section mm² Outer diameter mm
|
No./section mm² |
Outer diameter mm |
|||||||
|
3 group |
4 group |
5 group |
6 group |
7 group |
8 group |
9 group |
10 group |
|
|
N x 3 x 0.35 |
8.2 |
8.9 |
10.4 |
9.0 |
9.2 |
11.7 |
14.2 |
15.0 |
|
3 x0.6 |
9.0 |
9.7 |
11.3 |
12.3 |
12.5 |
13.0 |
14.5 |
15.8 |
|
4 x 0.6 |
10.5 |
11.4 |
12.9 |
13.6 |
13.9 |
14.7 |
16.8 |
18.0 |
|
6 x 0.12 |
11.2 |
12.2 |
13.3 |
14.7 |
15.0 |
15.9 |
17.5 |
19.5 |
3 .Product Feature And Application
Applied to the connection of terminal box and panel cabinet
4. Product Details
The conductor resistance of each group (3 wires) is balanced and the difference is 0.05 ohm per 100 meters
Core wire withstand voltage 2500V / 5min
Rated voltage 300V
Excellent electrical insulation properties, oil resistance, abrasion resistance, flame retardant and aging resistance
Conductor cross section can choose 0.35-1mm²
The maximum grouping is 10 groups, the minimum grouping is 5 groups, and it can also be customized
5.Deliver,Shipping And Serving
Power station temperature sensor extension cable packing with carton box , We also can customized for you if your order need.
6.FAQ
1, how many production lines do you have?
We have 10 production lines in Shenzhen factory.
2, what product you manufacturer have?
Our factory produce temperature sensor for power station,
Stators and cable for industry.
3,are your manufacturer?
We are manufacturer, our factory localed in Shenzhen China.
4, how do you ensure product quality?
We already built a mechanical,electrical,fire and flame retardant laboratory, professional testing engineers.
