1kv Braided Shield Power Station Cable PVC Insulated Control Wire

1kv Braided Shield Power Station Cable PVC Insulated Control Wire

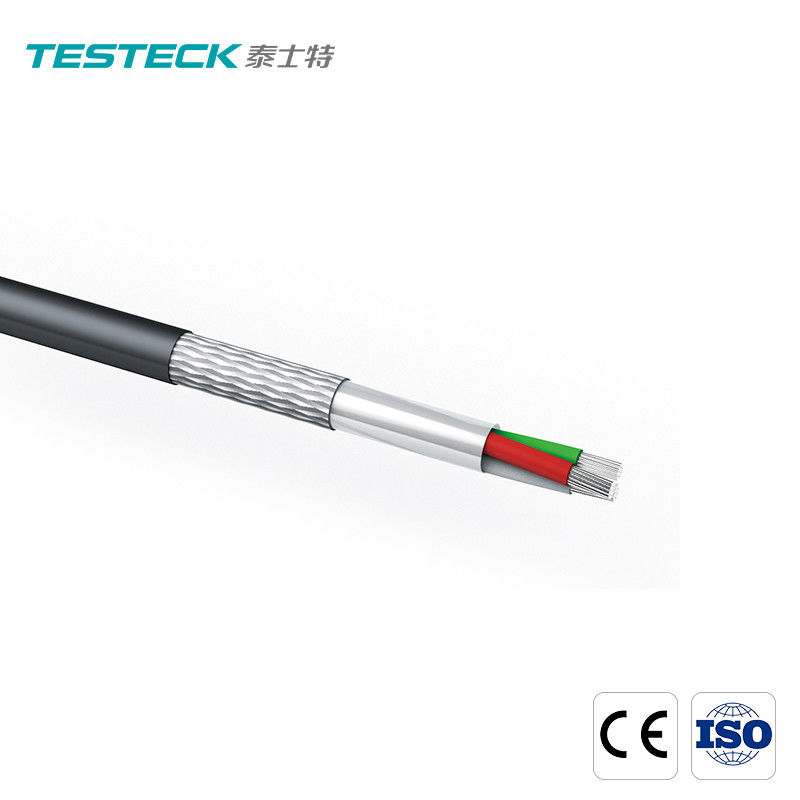

Copper Core PVC Insulated PVC Sheathed Textile Shielded Control Cable

This product is suitable for the wiring of signal and control circuits between various electrical equipment with rated voltages of 0.6/1KV and below. The flame retardancy complies with GB/T19666-2005. The outer diameter of the cable is smaller than that of conventional cables, which is easier to install. The cable has a large current carrying capacity, which improves safety.

KFVP control cable

Ⅰ. Product Introduction of the KFVP control cable

This product is suitable for the wiring of signal and control circuits between various electrical equipment with rated voltages of 0.6/1KV and below. The flame retardancy complies with GB/T19666-2005. The outer diameter of the cable is smaller than that of conventional cables, which is easier to install. The cable has a large current carrying capacity, which improves safety, temperature resistance: -25℃～+80℃, flame retardancy conforms to GB/T19666-2005

Ⅱ. Product Parameter (Specification) of the KFVP control cable

Ⅲ. Product Feature And Application of the KFVP control cable

This product is suitable for the connection of signal and control circuits between various electrical equipment with a rated voltage of 0.6/1KV and below.

Ⅳ. Product Details of the KFVP control cable

Temperature resistance: -25℃～+80℃

Rated voltage: 0.6/1KV class, 450/750V class;

When short circuit (5S), the maximum temperature of cable heating is 250℃;

Withstand voltage test: 0.6/1KV class 3500V/5min; 450/750V class 2500V/5min;

Insulation resistance constant: 3000MΩ·km;

Flame retardancy meets GB/T19666-2005;

Ⅴ. Deliver,Shipping And Serving of the

packing with carton box , We also can customized for you if your order need.

Ⅵ. FAQ

1, are your manufacturer?

We are manufacturer, our factory localed in Shenzhen China.

2, what product you manufacturer have?

Our factory produce temperature sensor for power station,

Stators and cable for industry.

3, how many production lines do you have?

We have 10 production lines in Shenzhen factory.

4, how do you ensure product quality?

We already built a mechanical,electrical,fire and flame retardant laboratory, professional testing engineers.

5, can you send samples?

Yes, we will supply sample before your make the order.
