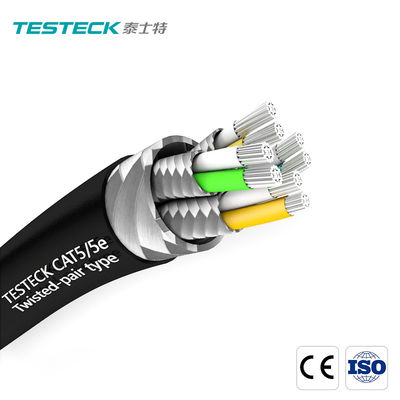

300V CAT5 Power Station Cable 100Ohm Symmetrical Twisted Pair Wire

300V CAT5 Power Station Cable 100Ohm Symmetrical Twisted Pair Wire

  • 300V CAT5 Power Station Cable 100Ohm Symmetrical Twisted Pair Wire
  • 300V CAT5 Power Station Cable 100Ohm Symmetrical Twisted Pair Wire
300V CAT5 Power Station Cable 100Ohm Symmetrical Twisted Pair Wire
Product Details:
Place of Origin: China
Brand Name: Testeck
Certification: Iris,EN,CRCC
Model Number: TST-CAT5/5e
Payment & Shipping Terms:
Minimum Order Quantity: 1000
Price: Agree
Packaging Details: Customized packing
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 5000 pieces each month
Contact Now
Detailed Product Description
Voltage: 300V AC Temperature: -40℃~90℃
Bending Radius: 6D(D Outer Diameter) Attenuation: <1.0dB/100m(1MHZ)<1.4dB/100m(200MHZ)
Shielding Layer: ≤65PF/M(1MHZ) Ground Capacitance: ≤120PF/M(1MHZ)
High Light:

300V Power Station Cable

,

CAT5 Power Station Cable

,

100 Ohm Symmetrical Twisted Pair Wire

300V CAT5 Power Station Cable 100Ohm Symmetrical Twisted Pair Wire



CAT5 100 Ohm Symmetrical And Twisted Cable



This type of data cable is based on the fire protection performance requirements of the rail transit industry. In a fire, the smoke is very small when the cable is burned, the smoke is non-toxic, corrosive and non-flammable, and the cable has good EMC characteristics.



CAT5 100 ohm symmetrical and twisted cable



Ⅰ.Product Introduction of the CAT5 100 ohm symmetrical and twisted cable

Multi-strand tinned copper conductor

Insulation adopts solid polyene diameter

Aluminum foil shield

Tinned copper general shield

The sheath is made of low-smoke halogen-free flame-retardant polyene diameter (black)



Ⅱ. Product Parameter (Specification) of the CAT5 100 ohm symmetrical and twisted cable

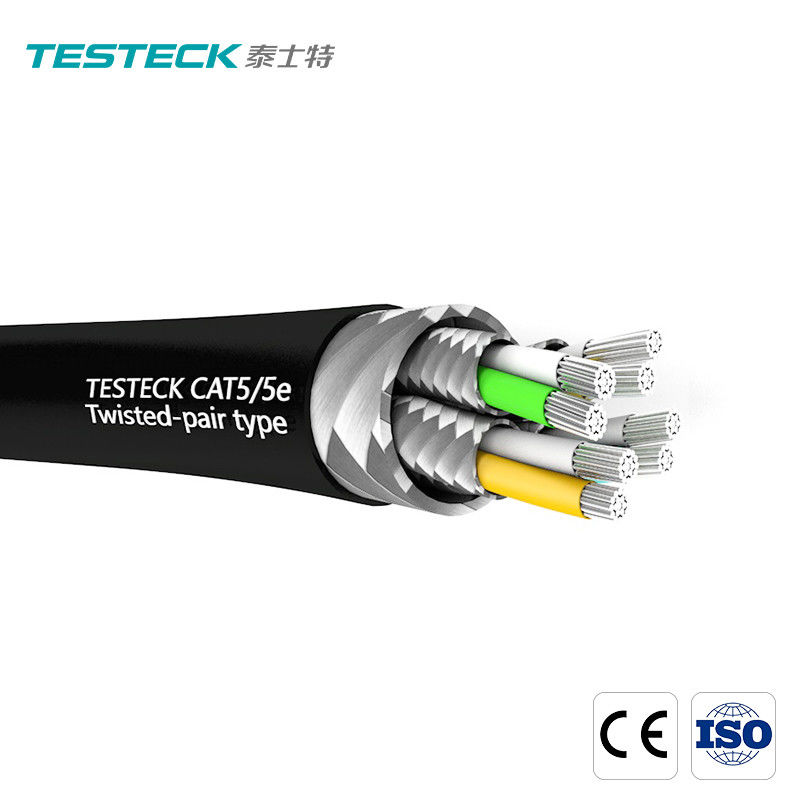

300V CAT5 Power Station Cable 100Ohm Symmetrical Twisted Pair Wire 0





























Twisted-pair cable

Model Core x section mm² Conductor diameter mm External diameter of insulation mm Outer diameter of cable mm
TST-CAT5/5e 2X2x0.5 0.9 1.9 9.7
TST-CAT5/5e 4x2x0.5 0.9 1.9 12.0


Symmetrical cable

Model Core x section mm² Conductor diameter mm External diameter of insulation mm Outer diameter of cable mm
TST-CAT5/5e 4x0.5 0.9 1.98 7.5



Rated voltage

300V AC
temperature -40℃~90℃
Bending radius 6D(D outer diameter)
Characteristic impedance 100Ω±5Ω(100MHZ)
attenuation <1.0dB/100m(1MHZ)
<1.4dB/100m(200MHZ)
Working capacitance ≤65PF/M(1MHZ)
Ground Capacitance ≤120PF/M(1MHZ)


Ⅲ. Product Feature And Application of the CAT5 100 ohm symmetrical and twisted cable



This type of data cable is based on the fire protection performance requirements of the rail transit industry. In a fire, the smoke is very small when the cable is burned, the smoke is non-toxic, corrosive and non-flammable, and the cable has good EMC characteristics.



Ⅳ. Product Details of the CAT5 100 ohm symmetrical and twisted cable



TB/T1484.4 Locomotives: Low-smoke, halogen-free and flame-retardant communication network cables EN45545 European fire rating standard.



Ⅴ. Deliver,Shipping And Serving of the

packing with carton box , We also can customized for you if your order need.



Ⅵ. FAQ

1, are your manufacturer?

We are manufacturer, our factory localed in Shenzhen China.

2, what product you manufacturer have?

Our factory produce temperature sensor for power station,

Stators and cable for industry.

3, how many production lines do you have?

We have 10 production lines in Shenzhen factory.

4, how do you ensure product quality?

We already built a mechanical,electrical,fire and flame retardant laboratory, professional testing engineers.

5, can you send samples?

Yes, we will supply sample before your make the order.
