Testeck Ltd.
Temperature sensor and low smoke halogen free flame retardant high temperature cable manufacturer:www.testeck.com/
 |
| Place of Origin: | China |
| Brand Name: | Testeck |
| Certification: | Iris,EN,CRCC |
| Model Number: | KYJY |
| Minimum Order Quantity: | 1000 |
|---|---|
| Price: | Agree |
| Packaging Details: | Customized packing |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 5000 pieces each month |
| Rated Voltage: | 4 5 0 / 7 5 0 V | Temperature: | -25℃～90℃ |
|---|---|---|---|
| Insulation Layer: | PE | Sheath Material: | PO |
| Shielding Layer: | Copper Tape / Braided Shield | Conductor Material: | Bare Copper |
| High Light: | 750V Power Station Cable,XLPE Power Station Cable,750V Power Control Cable |
||

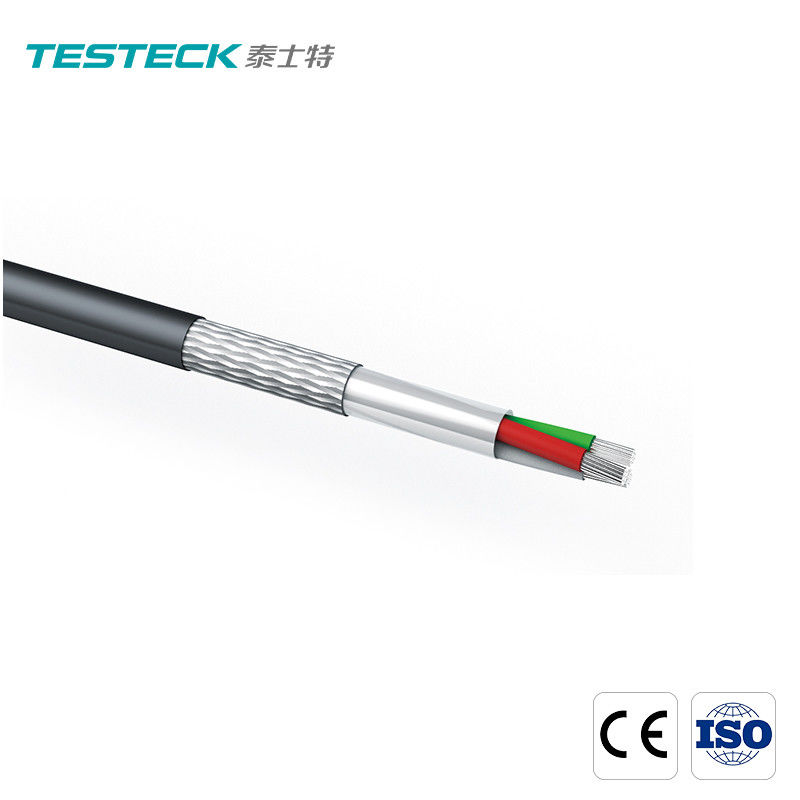

750V Power Station Cable KYJY XLPE Insulated Polyolefin Sheathed Control Cable
KYJY XLPE Insulated Polyolefin Sheathed Control Cable
The bending radius of the cable is not less than 8 times the outer diameter of the cable (the cable with copper tape shielding is not less than 12 times the outer diameter of the cable)
When burning, the gas smoke density is small, non-toxic
Ⅰ. Product Introduction of the KYJY control cable
The connection of signal and control circuits between various electrical equipment with a rated voltage of 450/750V and below and with special fire performance requirements.
The bending radius of the cable is not less than 8 times the outer diameter of the cable (the cable with copper tape shielding is not less than 12 times the outer diameter of the cable)
When burning, the gas smoke density is small, non-toxic
Ⅱ. Product Parameter (Specification) of the KYJY control cable
| Model Number | KYJY | Conductor material |
copper |
| Working temperature resistance | -25℃～+90℃ | Number of cores |
Contact customer service |
| Sheath material | PO | Insulation layer | PE |
| Rated voltage |
450 / 750V |
Insulation resistance constant | 3000MΩ·km |
| Withstand voltage test |
0.6 / 1K, 3500v / 5min; 450 / 75 class 2500V / 5min
|
Shielding layer |
Copper tape / braided shield |
Ⅲ. Product Feature And Application of the KYJY control cable
This product is suitable for the connection of signal and control circuits between various electrical equipment with a rated voltage of 450/750V and below and with special fire performance requirements.
Ⅳ. Product Details of the KYJY control cable
Temperature resistance -25℃~90℃;
Rated voltage: 450/750V;
Withstand voltage test: 3000V/5min;
Fire resistance conforms to GB/T19666-2005;
The laying temperature of the cable is not less than 0℃;
The bending radius of the cable is not less than 8 times the outer diameter of the cable (the cable with copper tape shield is not less than 12 times the outer diameter of the cable);
Ⅴ. Deliver,Shipping And Serving of the
packing with carton box , We also can customized for you if your order need.
