Testeck Ltd.
Temperature sensor and low smoke halogen free flame retardant high temperature cable manufacturer:www.testeck.com/
 |
| Place of Origin: | China |
| Brand Name: | Testeck |
| Certification: | Iris,EN,CRCC |
| Model Number: | KYJYP |
| Minimum Order Quantity: | 1000 |
|---|---|
| Price: | Agree |
| Packaging Details: | Customized packing |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 5000 pieces each month |
| Rated Voltage: | 4 5 0 / 7 5 0 V | Temperature: | -25℃～90℃ |
|---|---|---|---|
| Insulation Layer: | PE | Sheath Material : | PO |
| Shielding Layer: | Copper Tape / Braided Shield | Conductor Material: | Bare Copper |
| High Light: | halogen free flame retardant cables,halogen free Heat Resistant Power Cable,PE Insulation flame retardant cables |
||

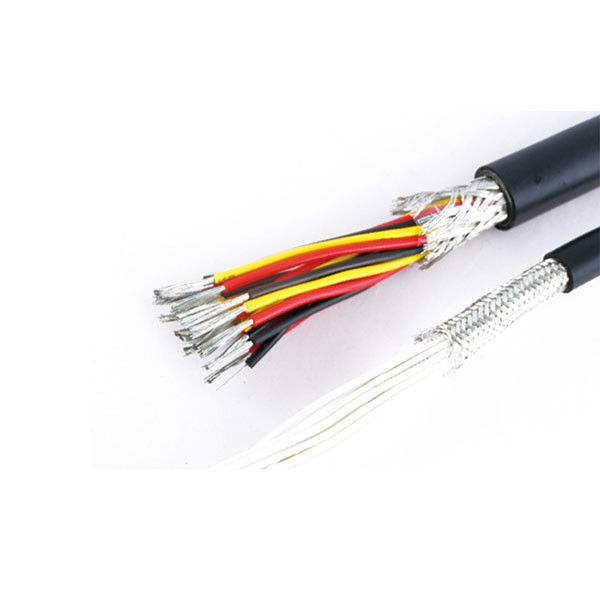

Halogen Free Flame Retardant Cables Heat Resistant Power Cable PE Insulation
KYJYP CXLPE Insulated Polyolefin Sheathed Braided Shielded Control Cable
The bending radius of the cable is not less than 8 times the outer diameter of the cable (the cable with copper tape shield is not less than 12 times the outer diameter of the cable);
When burning, the gas smoke density is small, non-toxic
Fire resistance conforms to GB/T19666-2005;
The laying temperature of the cable is not less than 0℃;
KYJYP control cable
1. Product Introduction of the KYJYP control cable
Rated voltage 450/750V and below, the connection of signal and control circuits between various electrical equipment with special fire performance requirements
The bending radius of the cable is not less than 8 times the outer diameter of the cable (the cable with copper tape shield is not less than 12 times the outer diameter of the cable);
When burning, the gas smoke density is small, non-toxic
Fire resistance conforms to GB/T19666-2005;
The laying temperature of the cable is not less than 0℃;
2. Product Parameter (Specification) of the KYJYP control cable
| Model Number | KYJYP | Conductor material | copper |
| Working temperature resistance | -25℃～+90℃ | Number of cores |
Contact customer service |
| Sheath material | PO | Insulation layer | PE |
| Rated voltage | 450 / 750V | Insulation resistance constant | 3000MΩ·km |
| Withstand voltage test |
0.6 / 1K, 3500v / 5min; 450 / 75 class 2500V / 5min
|
Shielding layer | Copper tape / braided shield |
3. Product Feature And Application of the KYJYP control cable
This product is suitable for the connection of signal and control circuits between various electrical equipment with a rated voltage of 450/750V and below and with special fire performance requirements.
4. Product Details of the KYJYP control cable
Temperature resistance -25℃~90℃;
Rated voltage: 450/750V;
Withstand voltage test: 3000V/5min;
Fire resistance conforms to GB/T19666-2005;
The laying temperature of the cable is not less than 0℃;
The bending radius of the cable is not less than 8 times the outer diameter of the cable (the cable with copper tape shield is not less than 12 times the outer diameter of the cable);
When burning, the gas smoke density is small, non-toxic
