Model: | TST F 3×0.5 | Rated Voltage: | 600V |
---|---|---|---|
Temperature Resistance: | -60℃~+200℃ | Core Withstand Voltage: | 2500V / 5min |
Conductor Section: | 0.35-1mm² | Insulation Material: | FEP |
High Light: | FEP Power Station Cable,600V Power Station Cable,Pt100 Temperature Sensor Extension Wire |
CE CRCC FEP Power Station Cable Temperature Sensor Extension Wire

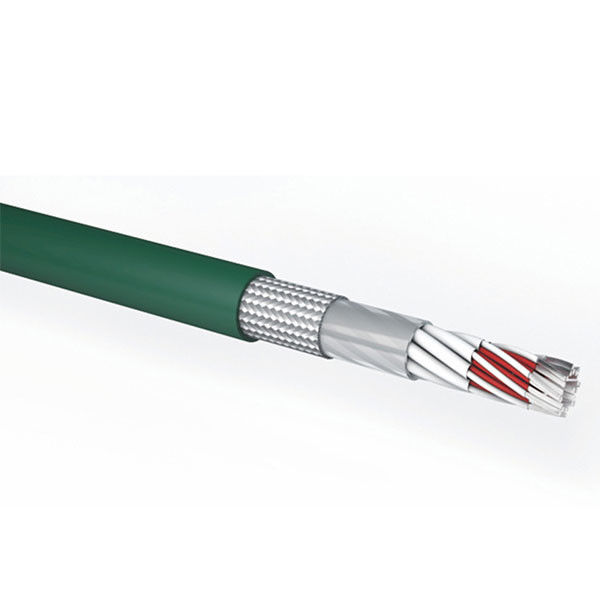

Power Station Temperature Sensor Extension Cable
aking into account that the cable from the sensor to the terminal box uses a cable with a small resistance between the wires (0.05 ohm per 100 meters), it is ensured that the overall accuracy of the Pt100 platinum resistance A can be achieved with the sensor. Therefore, multi-component cables are used from the terminal box to the panel, and the line resistance of each group is also less than 0.05 ohms per 100 meters, so that the entire measurement loop can reach Class A accuracy.
Power station temperature sensor extension cable
1. Product Introduction of the Power station temperature sensor extension cable
Taking into account that the cable from the sensor to the terminal box uses a cable with a small resistance between the wires (0.05 ohm per 100 meters), it is ensured that the overall accuracy of the Pt100 platinum resistance A can be achieved with the sensor. Therefore, multi-component cables are used from the terminal box to the panel, and the line resistance of each group is also less than 0.05 ohms per 100 meters, so that the entire measurement loop can reach Class A accuracy.
The consistency of temperature collection and display is ensured. Compared with the traditional connecting cable, the precision of collection and display is greatly improved.When connecting, the cable color separation group (3 wires) corresponds to the Pt100 lead terminal, which facilitates on-site installation and maintenance.
The cable conductor is made of silver-plated copper, which is resistant to oxidation, reduces contact resistance, greatly improves stability, and improves the reliability of the temperature measurement system.High-performance FEP is used for insulation, which reduces the cable outer diameter.The outer sheath is made of cyanide-butadiene polyvinyl chloride composite polymer material, which has oil resistance, softness (bending radius 5D), rodent bite resistance and strong mechanical properties.
2. Product Parameter (Specification) of the Power station temperature sensor extension cable
No./section mm² | Outer diameter mm | |||||||
3 group | 4 group | 5 group | 6 group | 7 group | 8 group | 9 group | 10 group | |
N x 3 x 0.35 | 8.2 | 8.9 | 10.4 | 9.0 | 9.2 | 11.7 | 14.2 | 15.0 |
3 x0.6 | 9.0 | 9.7 | 11.3 | 12.3 | 12.5 | 13.0 | 14.5 | 15.8 |
4 x 0.6 | 10.5 | 11.4 | 12.9 | 13.6 | 13.9 | 14.7 | 16.8 | 18.0 |
6 x 0.12 | 11.2 | 12.2 | 13.3 | 14.7 | 15.0 | 15.9 | 17.5 | 19.5 |
3. Product Feature And Application of the Power station temperature sensor extension cable
Applied to the connection of terminal box and panel cabinet
4. Product Details of the Power station temperature sensor extension cable
The conductor resistance of each group (3 wires) is balanced and the difference is 0.05 ohm per 100 meters
Core wire withstand voltage 2500V / 5min
Rated voltage 300V
Excellent electrical insulation properties, oil resistance, abrasion resistance, flame retardant and aging resistance
Conductor cross section can choose 0.35-1mm²
The maximum grouping is 10 groups, the minimum grouping is 5 groups, and it can also be customized
5. Deliver,Shipping And Serving of the Power station temperature sensor extension cable
Power station temperature sensor extension cable packing with carton box , We also can customized for you if your order need.
6. FAQ
1, are your manufacturer?
We are manufacturer, our factory localed in Shenzhen China.
2, what product you manufacturer have?
Our factory produce temperature sensor for power station,
Stators and cable for industry.
3, how many production lines do you have?
We have 10 production lines in Shenzhen factory.
4, how do you ensure product quality?
We already built a mechanical,electrical,fire and flame retardant laboratory, professional testing engineers.
5, can you send samples?
Yes, we will supply sample before your make the order.
