Testeck Ltd.
Temperature sensor and low smoke halogen free flame retardant high temperature cable manufacturer:www.testeck.com/
 |
| Place of Origin: | China |
| Brand Name: | Testeck |
| Certification: | CE，ISO |
| Model Number: | TY-S series |
| Minimum Order Quantity: | 10 |
|---|---|
| Price: | Agree |
| Packaging Details: | Customized packing |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 5000 pieces each month |
| Index No: | K | Accuracy Class: | 1,2 |
|---|---|---|---|
| Pipe Material: | 2520 (310S), 201, 304, 316, Gh3039, Etc | Nominal Pressure: | ≤9.8MPa |
| Installation Method: | Flange, Thread, Etc. Can Be Selected (contact Customer Service For Details) | Measuring Range: | 1300℃ |
| High Light: | thread Boiler Temperature Sensor,Wear Resistant k Temperature Sensor,Wear Resistant Boiler Temperature Sensor |
||

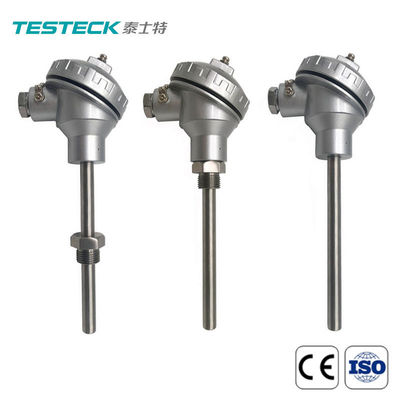

High Temperature Thread Boiler Temperature Sensor Wear Resistant
High Temperature And High Pressure Wear Resistant Temperature Sensor
The measurement points of the air temperature system generally include the air temperature of the secondary air box and the temperature of the hot primary air.
Generally, thicker protective tubes and large-diameter connecting threads are used to improve anti-vibration ability, and the measuring end adopts a variable diameter type to shorten the response time.
Boiler flue gas system temperature measurement
1. Product Introduction of the Boiler flue gas system temperature measurement
The measurement points of the smoke temperature system generally include the flue gas temperature of the superheater, the smoke temperature of the reheater, the smoke temperature of the economizer, and the smoke temperature of the air preheater.
Generally, thicker protective tubes and large-diameter connecting threads are used to improve the anti-vibration ability, and because of the erosion of solid particles in the smoke, sprayed wear-resistant casings are used to resist the erosion
2. Product Parameter (Specification) of the Boiler flue gas system temperature measurement
| Index No. | Temperature Range | Nominal pressure | Length/Depth | Protected tube material | Connect |
|
K E Pt100 |
0-800℃ | ≤9.8MPa |
480/230 680/430 880/630 1380/1130 |
304 321 316 |
2"NPT R2" ZG2" |
| 0-600℃ | |||||
| 0-400℃ |
| Index No. | Temperature Range | Nominal pressure | Length/Depth | Protected tube material | Connect |
|
K E Pt100 |
0-800℃ | ≤9.8MPa |
480/230 680/430 880/630 1380/1130 |
321 316 Wear-resistant spray(N) |
2"NPT R2" ZG2" |
| 0-600℃ | |||||
| 0-400℃ |
3. Product Feature And Application of the Boiler flue gas system temperature measurement
The Wind and smoke temperature sensor is suitable for measuring the boiler body inside temperature.
4. Product Details of the Boiler flue gas system temperature measurement
measurement points of the smoke temperature system generally include the flue gas temperature of the superheater, the smoke temperature of the reheater, the smoke temperature of the economizer, and the smoke temperature of the air preheater.
Generally, thicker protective tubes and large-diameter connecting threads are used to improve the anti-vibration ability, and because of the erosion of solid particles in the smoke, sprayed wear-resistant casings are used to resist the erosion
