Testeck Ltd.
Temperature sensor and low smoke halogen free flame retardant high temperature cable manufacturer:www.testeck.com/
Place of Origin: | China |
Brand Name: | Testeck |
Certification: | CE,ISO |
Model Number: | TY-S |
Minimum Order Quantity: | 10 |
---|---|
Price: | Agree |
Packaging Details: | Customized packing |
Payment Terms: | T/T, Western Union, MoneyGram |
Supply Ability: | 5000 pieces each month |
Product Name: | Explosion Proof Integrated Temperature Transmitter | Output Signal: | K |
---|---|---|---|
Conversion Accuracy: | ≤ 0.2% | Ambient Temperature: | -40℃~85℃ |
Protection Level: | IP65 | Material Of Temperature Probe Rod: | Stainless Steel Material |
High Light: | 4 Wire Rtd Temperature Transmitter,3 Wire Rtd Temperature Transmitter,2 Wire Rtd Transmitter |

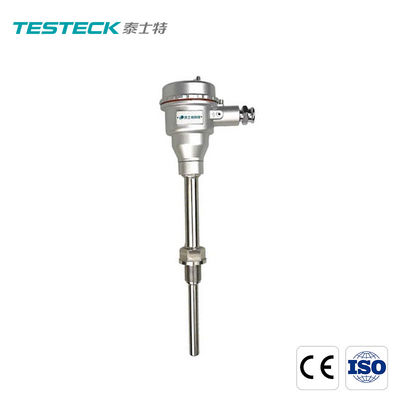

2 Wire 3 Wire And 4 Wire Rtd Temperature Transmitter Stainless Steel Material
4-20mA Explosion Proof Thermocouple Output Signal Industrial Design
1.Product description
This product is a kind of configurable intelligent temperature transmitting sensor. It receives 2, 3 and 4-wire Pt100 thermal resistance input, conducts linear processing for input signal and outputs 4-20mA standard signal. It has the function of sensor open circuit fault alarm.
2.Applications
It can directly measure the temperature of liquid, gas or steam medium. It receives the input signal of standard graduation thermal resistance and generates 4~20mA standard signal with linear temperature to be measured. It matches with computer system to detect and control various temperatures.
Features
Product name |
thermocouple |
Product model |
Customizable |
Graduation | K | Diameter of protective tube | others can be customized as 8, 10, 12, 20, 25, etc. |
Joint material | All 304 stainless steel | ||
temperature range |
-50 ~ 200 ℃ (can be customized according to actual temperature resistance) |
Installation method | Flange, thread, etc. can be selected (contact customer service for details) |
Technical data
3.Work environment
a. Ambient temperature: - 25℃~85℃ (- 40℃ ~90℃ in a special case)
b. Relative temperature: 5%~95%
c. Mechanical vibration: 10~150HZ, A=0.15mm
d. there is no medium causing transmitter corrosion in the surrounding air
Electromagnetic interference: When there is a radio transmitter with 2020~1,000MHZ and 5W power working 0.5m away from the transmitter, the change is between ±0.15%F·S.
Temperature drift: For every 1℃ change of temperature environment, the zero change is between ±0.15%F·S, and the range change is between 0.01%F·S.
4. delivery, shipment and service of temperature sensors
The temperature sensor is packed in cartons. If you need, we can also make it for you.
5. FAQ
1, are your manufacturer?
We are manufacturer, our factory localed in Shenzhen China.
2, what product you manufacturer have?
Our factory produce temperature sensor for power station,
Stators and cable for industry.
3, how many production lines do you have?
We have 10 production lines in Shenzhen factory.
4, how do you ensure product quality?
We already built a mechanical,electrical,fire and flame retardant laboratory, professional testing engineers.
5, can you send samples?
Yes, we will supply sample before your make the order.
Contact Person: ALix
Tel: 13689565278
