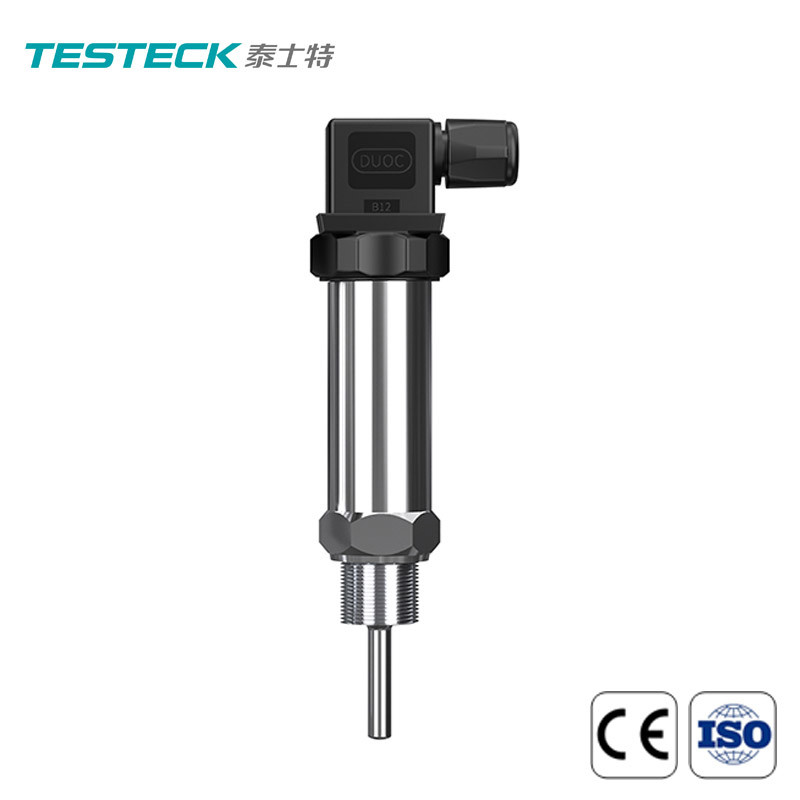

40VDC Temperature Controller Transmitter Thermal Resistance PT100 Sensor

40VDC Temperature Controller Transmitter Thermal Resistance PT100 Sensor

  • 40VDC Temperature Controller Transmitter Thermal Resistance PT100 Sensor
40VDC Temperature Controller Transmitter Thermal Resistance PT100 Sensor
Product Details:
Place of Origin: China
Brand Name: Testeck
Certification: CE,Iris
Model Number: I series
Payment & Shipping Terms:
Minimum Order Quantity: 10
Price: Agree
Packaging Details: Customized packing
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 5000 pieces each month
Contact Now
Detailed Product Description
Temperature Measuring Range: -50℃~180℃ Ambient Temperature: -40~85℃
Output Signal: 4~20mA Temperature Drift: <0. 02% FS/ 1℃(-20~60℃)
Power Voltage: 12~40VDC Protection Grade: IP67
High Light:

40VDC Temperature Controller Transmitter

,

20mA Temperature Controller Transmitter

,

Thermal Resistance PT100 Sensor

40VDC Temperature Controller Transmitter Thermal Resistance PT100 Sensor



Temperature Transmitter Thermal Resistance PT100 Sensor 4-20mA



Product description

This product is a kind of configurable intelligent temperature transmitting sensor. It receives 2, 3 and 4-wire Pt100 thermal resistance input, conducts linear processing for input signal and outputs 4-20mA standard signal. It has the function of sensor open circuit fault alarm.

Applications

It is applied in water and oil pipelines to display temperature data in situ and transmit temperature data remotely.



Features

The chip-type Pt100 temperature sensing element adopts laser welding technology to prevent the solder joints from loosening or falling off in case of strong vibration, which effectively improves the stability of measurement.

It can directly measure the temperature of liquid, gas or steam medium.

It can display the temperature data in situ, and it can also monitor and control the temperature with the computer system.

With highlighted LED display, built-in transmitter module conducts linear processing for the signal.

The explosion-proof type complies with GB3836.1- 2000 and GB3836.2-2000, and it can be used in specified explosion-proof occasions.



Technical data

Product name Explosion proof integrated temperature transmitter Supply voltage 12~40VDC
Graduation PT100 Diameter of protective tube  others can be customized as 8, 10, 12, 20, 25, etc.
Joint material All 304  output 4~20mA
Temperature measuring range -50℃~180℃ Installation method Flange, thread, etc. can be selected (contact customer service for details)
Display accuracy ≤ 0.1% ± one word Protection grade IP67



delivery, shipment and service of temperature sensors

The temperature sensor is packed in cartons. If you need, we can also make it for you.



FAQ

1, are your manufacturer?

We are manufacturer, our factory localed in Shenzhen China.

2, what product you manufacturer have?

Our factory produce temperature sensor for power station,

Stators and cable for industry.

3, how many production lines do you have?

We have 10 production lines in Shenzhen factory.

4, how do you ensure product quality?

We already built a mechanical,electrical,fire and flame retardant laboratory, professional testing engineers.

5, can you send samples?

Yes, we will supply sample before your make the order.
