| Place of Origin: | China |
| Brand Name: | Testeck |
| Certification: | CE，ISO |
| Model Number: | TY-S05 |
| Minimum Order Quantity: | 10 |
|---|---|
| Packaging Details: | Customized packing |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 3000 pieces each month |
| Plugging Times: | 3000 Times | Humidity: | Up To 95% At 60℃ |
|---|---|---|---|
| Temperature Range: | -50℃ ~180℃ | Anti-vibration Performance: | 10~1000hz,15g |
| Protection Grade(when Inserting): | IP67 | ||
| High Light: | Temperature Element Rtd,Rtd Temp Probe,pt100 temp sensor |
||

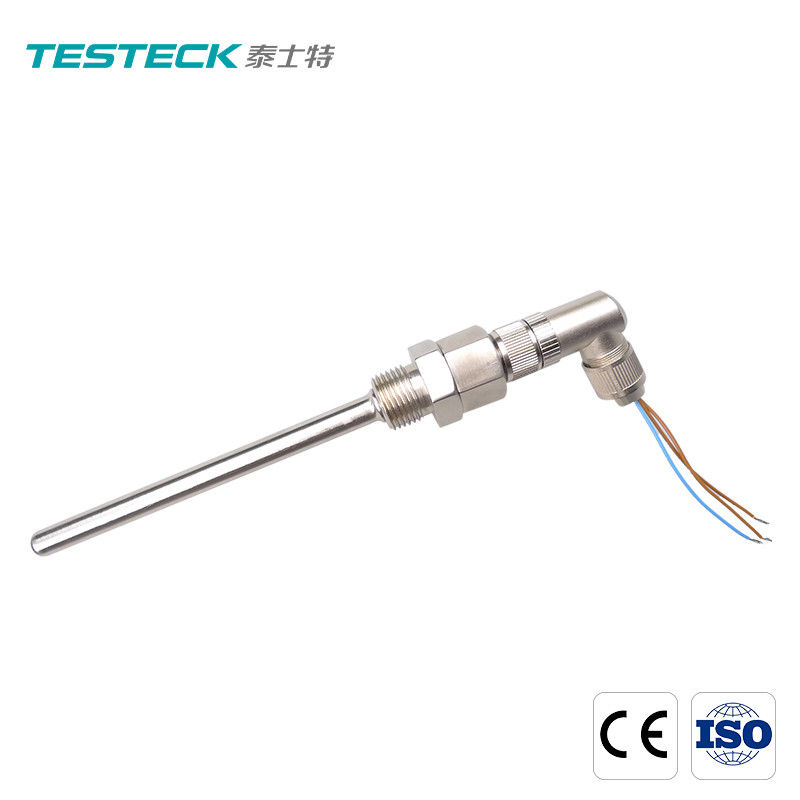

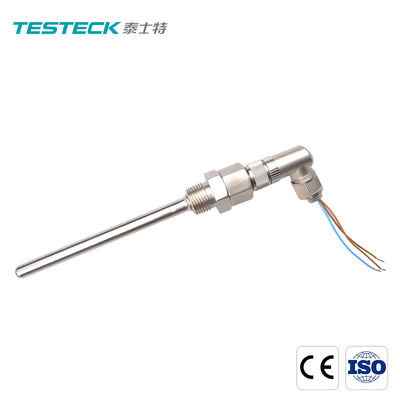

IP67 Temperature Element Rtd Temp Probe Quick Plug In And Out
Quick Plug In And Out Rtdpt100 Temperature Sensor
Quick connector of Testeck temperature sensor can effectively resist vibration and impact and prevent the disconnection caused by pulling the cable. IP68 is sealed, waterproof and oil-proof. It is absolutely safe and reliable when being used, and it is easy to plug in and out in a very limited space.
P series temperature sensor--quick connector
1. Product Introduction of the P series temperature sensor--quick connector
Solve the problem that the calibration probe needs to be rewired during overhaul, greatly accelerate the overhaul progress and reduce the overhaul difficulty.
Once the wiring in the oil groove is completed and if the probe needs to be calibrated during overhaul, just loosen the connector and remove the probe. The wiring in the oil groove can be kept intact.
To install the sensor in the oil groove, you can complete the wiring separately, install the probe, and then connect the cable and the probe.
When installing and uninstalling the connector, just loosen the external connecting ring to eliminate the complicated steps of stripping and wiring.
The connector thread is opposite to the probe thread. When loosening the external connecting ring, the probe and the rear cable will not rotate correspondingly.
2. Product Parameter (Specification) of the P series temperature sensor--quick connector
| Plugging times | 1000 times |
| Humidity | Up to 95% at 60℃ |
| Temperature range | -55℃ ~180℃ |
| Anti-vibration performance | 10~2000hz,15g |
| Anti-impact resistance | 100g,6ms |
| Salt spray corrosion test | >144h |
| Protection grade(when inserting) | IP67 |
| Shielding effect | >75db(at 10Mhz) / >40db(at 1Ghz) |
3. Product Feature And Application of the P series temperature sensor--quick connector
It is applied to the temperature monitoring of bearing bush and oil groove of hydrogenerator.
4. Product Details of the P series temperature sensor--quick connector
The cable insulation layer is made of high-temperature and tension resistant materials.In particular, magnetization resistance, temperature resistance and insulation performance shall be taken
5. delivery, shipment and service of temperature sensors
The temperature sensor is packed in cartons. If you need, we can also make it for you.
6. FAQ
1, are your manufacturer?
We are manufacturer, our factory localed in Shenzhen China.
2, what product you manufacturer have?
Our factory produce temperature sensor for power station,
Stators and cable for industry.
3, how many production lines do you have?
We have 10 production lines in Shenzhen factory.
4, how do you ensure product quality?
We already built a mechanical,electrical,fire and flame retardant laboratory, professional testing engineers.
5, can you send samples?
Yes, we will supply sample before your make the order.
