Temperature sensor and low smoke halogen free flame retardant high temperature cable manufacturer:www.testeck.com/
|Place of Origin:||China|
|Minimum Order Quantity:||10|
|Packaging Details:||customized packing|
|Payment Terms:||T/T, Western Union, MoneyGram|
|Supply Ability:||5000 pieces each month|
|Casing Pipe:||304 Stainless Steel||Temperature Measuring Range:||-100～350℃|
|Wire System:||Three Wire System||Protective Device:||Corrugated Pipe Protection|
|Probe Diameter:||Contact Customer Service||Installation Method:||Contact Customer Service|
RTD Bearing Temperature Sensor,
Anti Corrosion Bearing Temperature Sensor,
RTD bearing temp sensor

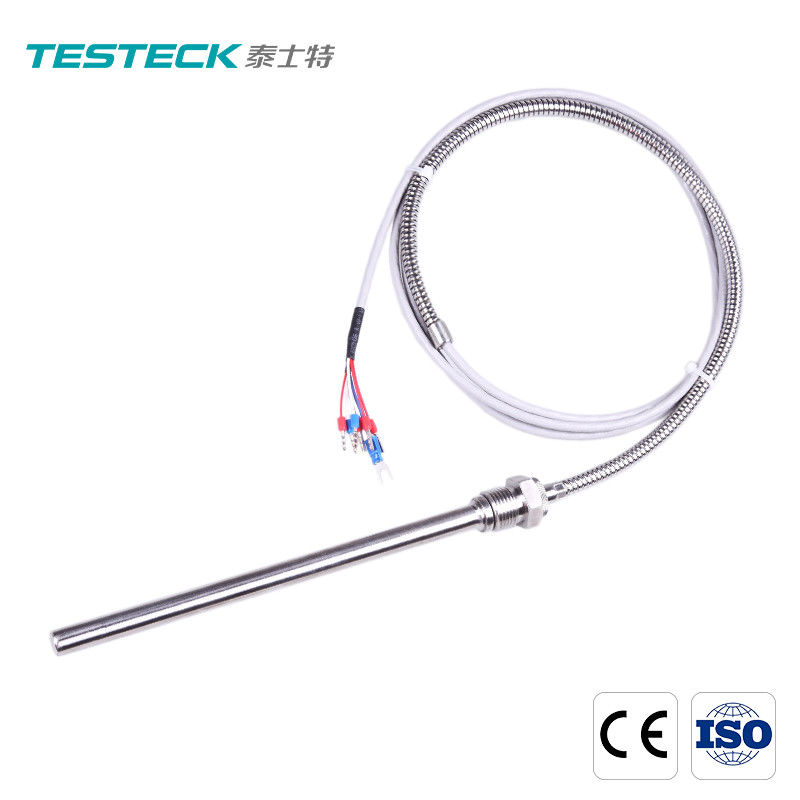

Integrated RTD Bearing Temperature Sensor Oil Resistant Anti Corrosion
Integrated RTD Oil Resistant Anti-Corrosion Anti-Oxidation Conductor
Corrugated pipe protection temperature sensor (S08Pt100-200-X-3113/C01K600) is applied in monitoring the temperature of thrust, guide bearing and oil of water turbine set. In view of the special situation of the oil groove of the water turbine set, the optimized design is carried out for bearing bush temperature sensor. The corrugated pipe protection device is installed at the end of the sensor probe to enhance the protection of the conductor and reduce the possibility of the disconnection in the oil groove.
S series temperature sensor--corrugated pipe protection
1. Product Introduction of the S series temperature sensor--corrugated pipe protection
The chip-type temperature sensing element adopts laser welding technology to prevent the solder joints from loosening or falling off in case of strong vibration, which effectively improves the stability of measurement.Movable/fixed ferrule connection mode is available. The wire does not need to rotate with the probe during installation, and the insertion depth of the probe can be adjusted appropriately.The corrugated pipe conductor protection device can effectively bear the load of the joint of rigid material and flexible material and prevent the conductor from breaking when the tail conductor swings frequently.Oil and high temperature resistant shielded conductor, jacket and insulating layer are made of special polymers, which can work in the oil temperature of 100℃ for eight years. The copper-plated silver core has good conductivity, and the equilibrium degree of each hundred meters is less than 0.05Ω.
2. Product Parameter (Specification) of the S series temperature sensor--corrugated pipe protection
|Model||Corrugated pipe integrated thermistor|
Testeck corrugated pipe integrated thermistor
|Temperature measuring range||-50～180℃|
|Wire system||Three wire system|
|Process connection||Movable ferrule thread M16×2 or other sizes|
|Casing pipe||304 stainless steel|
|Outer diameter of casing pipe||Φ8,Φ10,Φ12|
|Protective device||Corrugated pipe protection|
|Insulation resistance at room temperature||>100MΩ|
|Outer diameter of corrugated pipe||Φ6.7|
3. Product Feature And Application of the S series temperature sensor--corrugated pipe protection
It is applied in monitoring the temperature of thrust, guide bearing pad and oil of water-turbine generator set.
4. Product Details of the S series temperature sensor--corrugated pipe protection
The cable insulation layer is made of high-temperature and tension resistant materials.
In particular, magnetization resistance, temperature resistance and insulation performance shall be taken into consideration for packaging materials.
5. delivery, shipment and service of temperature sensors
The temperature sensor is packed in cartons. If you need, we can also make it for you.
1, are your manufacturer?
We are manufacturer, our factory localed in Shenzhen China.
2, what product you manufacturer have?
Our factory produce temperature sensor for power station,
Stators and cable for industry.
3, how many production lines do you have?
We have 10 production lines in Shenzhen factory.
4, how do you ensure product quality?
We already built a mechanical,electrical,fire and flame retardant laboratory, professional testing engineers.
5, can you send samples?
Yes, we will supply sample before your make the order.
