| Place of Origin: | China |
| Brand Name: | Testeck |
| Certification: | CE，ISO |
| Model Number: | TY-S01 |
| Minimum Order Quantity: | 10 |
|---|---|
| Price: | Agree |
| Packaging Details: | Customized packing |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 5000 pieces each month |
| Graduation: | Shock Proof RTD | Length Of Extension Line: | PT100 |
|---|---|---|---|
| Diameter Of Protective Tube: | According To Customer Requirements | Installation Method: | Contact Customer Service |
| Joint Material: | 304 | Thermal Response Time: | <15S |
| High Light: | Shockproof Boiler Temperature Sensor,Shockproof Steam temperature sensor,PT100 Steam temperature sensor |
||

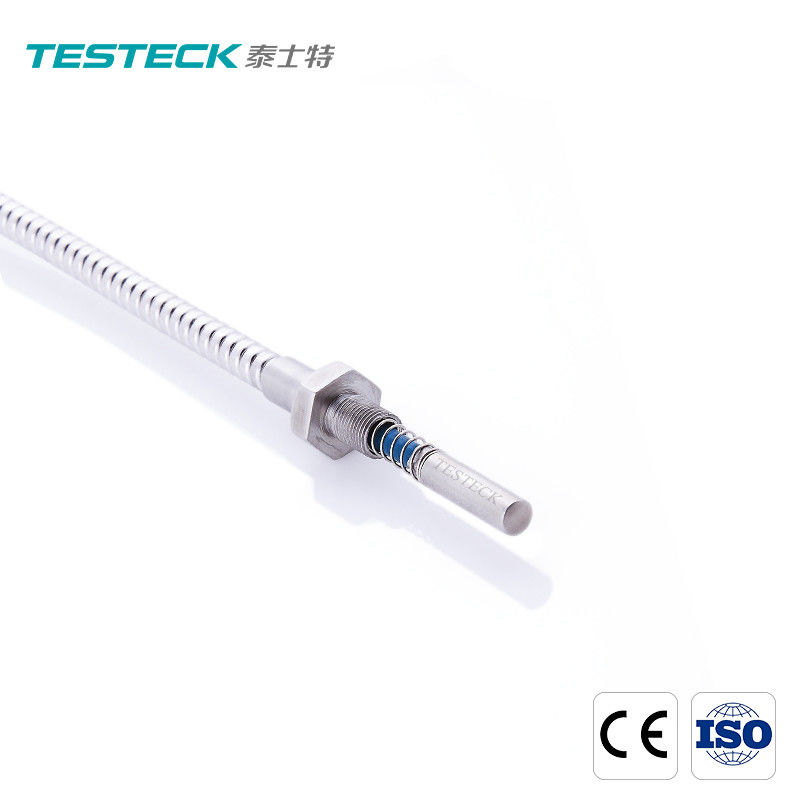

Shockproof Boiler Temperature Sensor PT100 For Steam Turbine
Steam Turbine Body Temperature Measurement PT100 Shockproof
Cylinder wall temperature measurement points generally include the inner and outer wall temperature of the high pressure cylinder, and the inner and outer wall temperature of the intermediate pressure cylinder..
Steam turbine body temperature measurement
1. Product Introduction of the Steam turbine body temperature measurement
Turbine bearing temperature
Turbine bearing bush temperature and thrust bush temperature mainly use thermal resistance. In a strong vibration environment, the manufacturing process of thermal resistance is very important. It is recommended to use chip-type platinum resistance temperature sensing element to make, and because the blocks are immersed in turbine oil , So the sealing of the sensor is very important
2. Product Parameter (Specification) of the Steam turbine body temperature measurement
Turbine steam system temperature
| Index No. | Temperature range | Length | Armored skin material | Outer Diameter |
|
K E Pt100 |
0-800℃ |
3000 6000 8000 10000 15000 20000 25000 |
304 321(1Cr18Ni9Ti) 310 600 825 |
Φ3 Φ4 Φ5 Φ6 |
| 0-600℃ | ||||
| 0-500℃ |
3. Product Feature And Application of the Steam turbine steam temperature measurement
It is Suitable for monitoring the stream motor temperature.
4. Product Details of the Steam turbine steam temperature measurement
The cable insulation layer is made of high-temperature and tension resistant materials.In particular, magnetization resistance, temperature resistance and insulation performance shall be taken into consideration for packaging materials.
5.delivery, shipment and service of temperature sensors
The temperature sensor is packed in cartons. If you need, we can also make it for you.
6.FAQ
1, are your manufacturer?
We are manufacturer, our factory localed in Shenzhen China.
2, what product you manufacturer have?
Our factory produce temperature sensor for power station,
Stators and cable for industry.
3, how many production lines do you have?
We have 10 production lines in Shenzhen factory.
4, how do you ensure product quality?
We already built a mechanical,electrical,fire and flame retardant laboratory, professional testing engineers.
5, can you send samples?
Yes, we will supply sample before your make the order.
