Testeck Ltd.
Temperature sensor and low smoke halogen free flame retardant high temperature cable manufacturer:www.testeck.com/
 |
| Place of Origin: | China |
| Brand Name: | Testeck |
| Certification: | CE，ISO |
| Model Number: | TY-S04 |
| Minimum Order Quantity: | 10 |
|---|---|
| Packaging Details: | Customized packing |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 5000 pieces each month |
| Type: | PT100 | Accuracy Class: | Grade 2B, B, A And 1 / 3b Are Optional |
|---|---|---|---|
| Temperature Range: | -50℃ ~180℃ | Pipe Material: | SS304 |
| Probe Size: | Contact Customer Service | Protection Grade(when Inserting): | IP67 |
| High Light: | IP67 Bearing Temperature Sensor,Bearing Temperature Sensor PT100,SS304 Bearing Temperature Sensor |
||

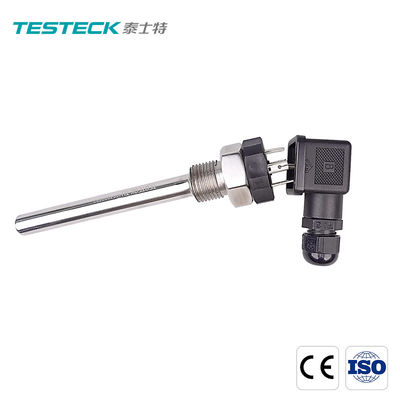

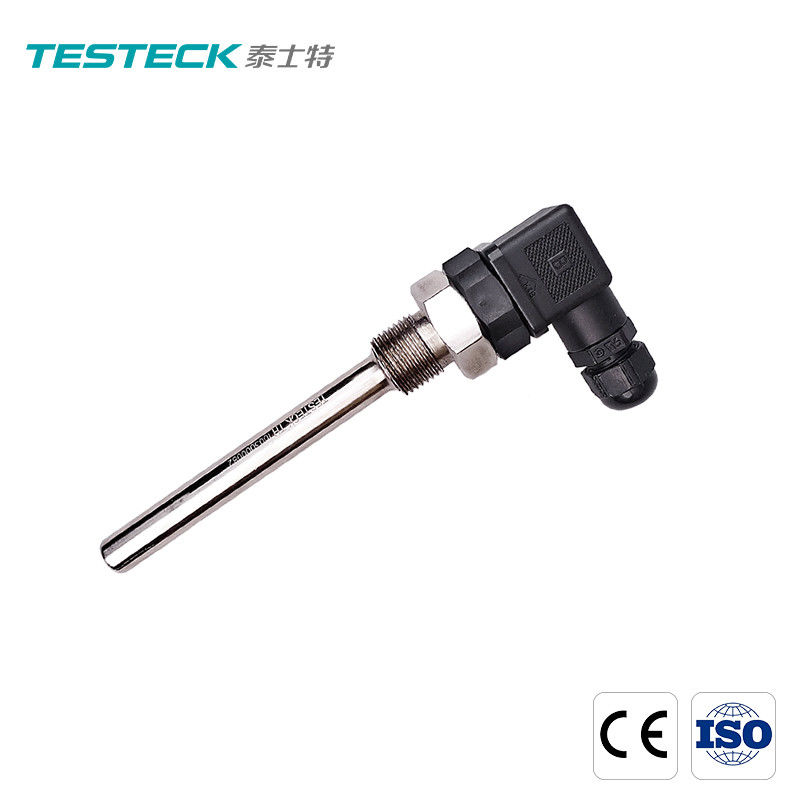

IP67 Bearing Temperature Sensor PT100 With Pentax Quick Connector
Quick Connector Temperature Sensor And Use More Conveniently
Quick connector of Testeck temperature sensor can effectively resist vibration and impact and prevent the disconnection caused by pulling the cable. IP68 is sealed, waterproof and oil-proof. It is absolutely safe and reliable when being used, and it is easy to plug in and out in a very limited space.
Ⅰ. Product Introduction of the P series temperature sensor--quick connector
Solve the problem that the calibration probe needs to be rewired during overhaul, greatly accelerate the overhaul progress and reduce the overhaul difficulty.
Once the wiring in the oil groove is completed and if the probe needs to be calibrated during overhaul, just loosen the connector and remove the probe. The wiring in the oil groove can be kept intact.
To install the sensor in the oil groove, you can complete the wiring separately, install the probe, and then connect the cable and the probe.
When installing and uninstalling the connector, just loosen the external connecting ring to eliminate the complicated steps of stripping and wiring.
The connector thread is opposite to the probe thread. When loosening the external connecting ring, the probe and the rear cable will not rotate correspondingly.
Ⅱ. Product Parameter (Specification) of the P series temperature sensor--quick connector
| 产品型号Product model | TY-S04 | Graduation | PT100 |
| Product name | PT100 temperature sensor | Accuracy class | 2B,B,A,1/3BLevel optional |
| temperature range | -50 -- 180℃ | lead material | Three core silver plated PTFE shielded wire |
| Probe size | Contact customer service | Probe material | 304 stainless steel |
Ⅲ. Product Feature And Application of the P series temperature sensor--quick connector
It is applied to the temperature monitoring of bearing bush and oil groove of hydrogenerator.
Ⅳ. Product Details of the P series temperature sensor--quick connector
The cable insulation layer is made of high-temperature and tension resistant materials.In particular, magnetization resistance, temperature resistance and insulation performance shall be taken
Ⅴ. delivery, shipment and service of temperature sensors
The temperature sensor is packed in cartons. If you need, we can also make it for you.
Ⅵ. FAQ
1, are your manufacturer?
We are manufacturer, our factory localed in Shenzhen China.
2, what product you manufacturer have?
Our factory produce temperature sensor for power station,
Stators and cable for industry.
3, how many production lines do you have?
We have 10 production lines in Shenzhen factory.
4, how do you ensure product quality?
We already built a mechanical,electrical,fire and flame retardant laboratory, professional testing engineers.
5, can you send samples?
Yes, we will supply sample before your make the order.
