| Place of Origin: | China |
| Brand Name: | Testeck |
| Certification: | CE,ISO |
| Model Number: | TY-C10 |
| Minimum Order Quantity: | 10 |
|---|---|
| Price: | Agree |
| Packaging Details: | customized packing |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 5000 pieces each month |
| Casing Pipe: | 304 Stainless Steel | Temperature Sensing Element: | PT100 Class A Accuracy |
|---|---|---|---|
| Temperature Measuring Range: | -50～200℃ | Protective Device: | Sheathed Wire Protection |
| Response Time: | τ0.5＜15s | Diameter Of Protective Tube: | Can Be Customized As 8, 10, 12, 20, 25, Etc. |
| High Light: | Armored Waterproof Thermocouple,PT100 Waterproof Thermocouple,PT100 Bearing Temperature Measurement |
||
Armored Waterproof Thermocouple Bearing Temperature Measurement
Thermal Resistance Of Armored Thermocouple
applied in monitoring thrust pad and oil temperature of water turbine. In response to the oil flow impact under complex conditions, the sheathed wire conductor protection device can prevent the hard damage caused by mechanical vibration.

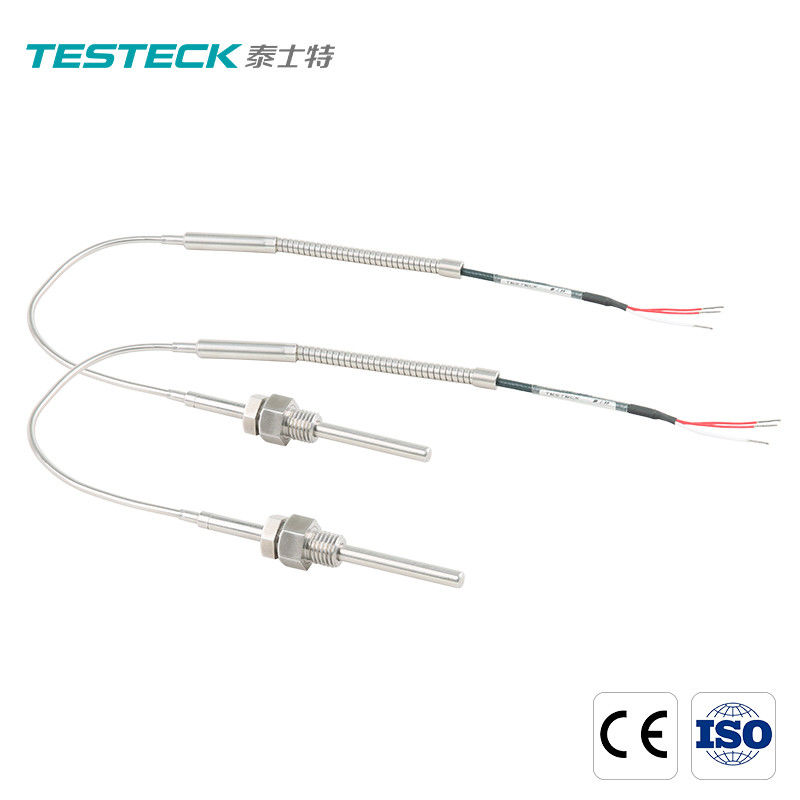

Ⅰ. Product Introduction of the S series temperature sensor--sheathed wire protection
The chip-type temperature sensing element adopts laser welding technology to prevent the solder joints from loosening or falling off in case of strong vibration, which effectively improves the stability of measurement.
Movable thread connection mode is available. The conductor does not rotate with the probe during installation.
The protective device of sheathed wire conductor can effectively bear the load of the joints of rigid material and flexible material and prevent the conductor from breaking when the tail conductor swings frequently
Oil and high temperature resistant shielded conductor, jacket and insulating layer are made of special polymers, which can work in the oil temperature of 100 ℃ for five years.
The copper-plated silver core has good conductivity, and the equilibrium degree of each hundred meters is less than 0.05Ω.
Ⅱ. Product Parameter (Specification) of the S series temperature sensor--sheathed wire protection
| Model | Parameters |
| S08Pt100-200-X-3113/C01K600 | Testeck sheathed wire integrated thermistor |
| Temperature measuring range | -50～200℃ |
| Temperature sensing element | PT100 class a accuracy |
| Wire system | Three wire system |
| Process connection | Movable ferrule thread M16×2 or other sizes |
| Casing pipe | 304 stainless steel |
| Outer diameter of casing pipe | Φ8,Φ10,Φ12 |
| Protective device | Sheathed wire protection |
| Insulation resistance at room temperature | >100MΩ |
| response time | τ0.5＜15s |
| Conductor specification | TST619020 |
Ⅲ. Product Feature And Application of the S series temperature sensor--sheathed wire protection
It is applied in monitoring of thrust pad, guide bearing and oil temperature of water turbine generator set.

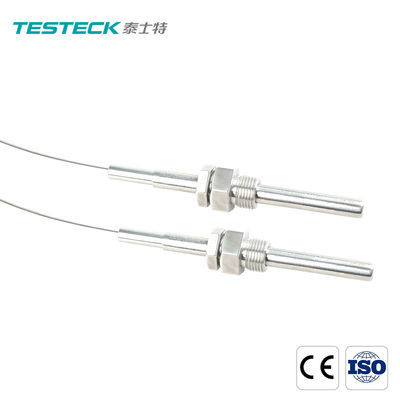

Ⅳ. Product Details of the S series temperature sensor--sheathed wire protection
The cable insulation layer is made of high-temperature and tension resistant materials.
In particular, magnetization resistance, temperature resistance and insulation performance shall be taken into consideration for packaging materials.
Ⅴ. delivery, shipment and service of temperature sensors
The temperature sensor is packed in cartons. If you need, we can also make it for you.
Ⅵ. FAQ
1, are your manufacturer?
We are manufacturer, our factory localed in Shenzhen China.
2, what product you manufacturer have?
Our factory produce temperature sensor for power station,
Stators and cable for industry.
3, how many production lines do you have?
We have 10 production lines in Shenzhen factory.
4, how do you ensure product quality?
We already built a mechanical,electrical,fire and flame retardant laboratory, professional testing engineers.
5, can you send samples?
Yes, we will supply sample before your make the order.
