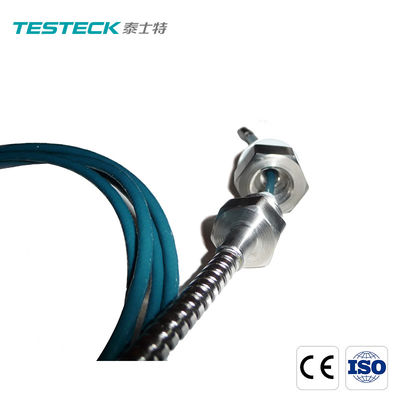

Non magnetic stainless steel Boiler Temp Sensor RTD Three Wire System
Oil Leakage Proof RTD For Signal Export Cable
The temperature measurement of the main shaft seal of the hydraulic turbine can realize the single line leading out of the oil tank wall and the water tank wall without connection. It can enhance the stability of temperature measurement. At the same time, it can be reliably sealed on the cable, and the sealing grade is ip68,30bar.
ⅠProduct introduction of 1s series temperature sensor spindle seal
The chip temperature sensor adopts laser welding technology to prevent the solder joint from loosening or falling off during strong vibration, which effectively improves the stability of the product measurement.Movable Ferrule connection is available. During installation, the wire does not need to rotate with the probe, and the probe insertion depth can be adjusted appropriately.
When a single cable sealing bolt falls off, no connection is needed and reliable sealing is realized at the same time time.Oil The high temperature resistant shielding conductor, sheath and insulating layer are made of special polymer and can work at 100 ℃ oil temperature for 8 years. The copper plated silver core has good conductivity, and the balance degree per 100 meters is less than 0.05 Ω.
Ⅱ. Product Parameter (Specification) of the S series temperature sensor - spindle seal
| Specifications | Parameters |
| Testeck temperature measurement thermal resistor of spindle seal S12Pt100-100-10-3131/F02B500 | |
| Temperature measuring range | -50～180℃ |
| Wire system | Three wire system |
| Process connection | Movable ferrule thread G1 / 2 or other dimensions |
| Casing pipe | Non magnetic stainless steel |
| Outer diameter of casing pipe | Φ8,Φ10,Φ12 |
| Protective device | With corrugated pipe protection |
| Insulation resistance at room temperature | >100MΩ |
| Response time | τ0.5＜15s |
| Conductor specification | TST619015 |
| Outer diameter of corrugated pipe | Φ8.4 |
Ⅲ. Product Feature And Application of the S series temperature sensor - spindle seal
It is applied in monitoring the temperature of the spindle seal of the generator set of water turbine.

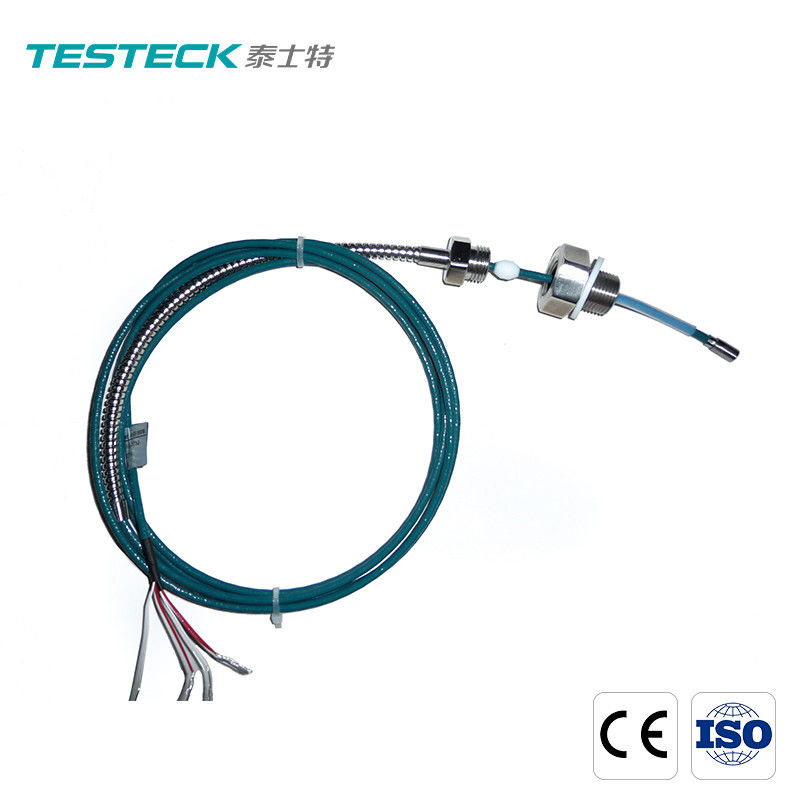

Ⅳ. Product Details of the S series temperature sensor - spindle seal
The cable insulation layer is made of high-temperature and tension resistant materials.
In particular, magnetization resistance, temperature resistance and insulation performance shall be taken into consideration for packaging materials.
Ⅴ. delivery, shipment and service of temperature sensors
The temperature sensor is packed in cartons. If you need, we can also make it for you.
Ⅴ. FAQ
1, are your manufacturer?
We are manufacturer, our factory localed in Shenzhen China.
2, what product you manufacturer have?
Our factory produce temperature sensor for power station,
Stators and cable for industry.
3, how many production lines do you have?
We have 10 production lines in Shenzhen factory.
4, how do you ensure product quality?
We already built a mechanical,electrical,fire and flame retardant laboratory, professional testing engineers.
5, can you send samples?
Yes, we will supply sample before your make the order.
