| Place of Origin: | China |
| Brand Name: | Testeck |
| Certification: | CE,ISO |
| Model Number: | TY-C |
| Minimum Order Quantity: | 10 |
|---|---|
| Price: | Agree |
| Packaging Details: | customized packing |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 5000 pieces each month |
| Temperature Measuring Range: | -50～180℃ | Pressure Resistance: | 2～4MPa |
|---|---|---|---|
| Insulation Grade: | Class F (155 ℃), H (180 ℃) | Maximum Excitation Current: | 5mA |
| Withstand Voltage: | 1000～2500VAC/min | Lead Longitudinal Pressure Resistance: | 15～200N |
| High Light: | Chip Type Motor Winding RTD,PT100 Motor Winding RTD,PT100 Resistance Temperature Detector |
||

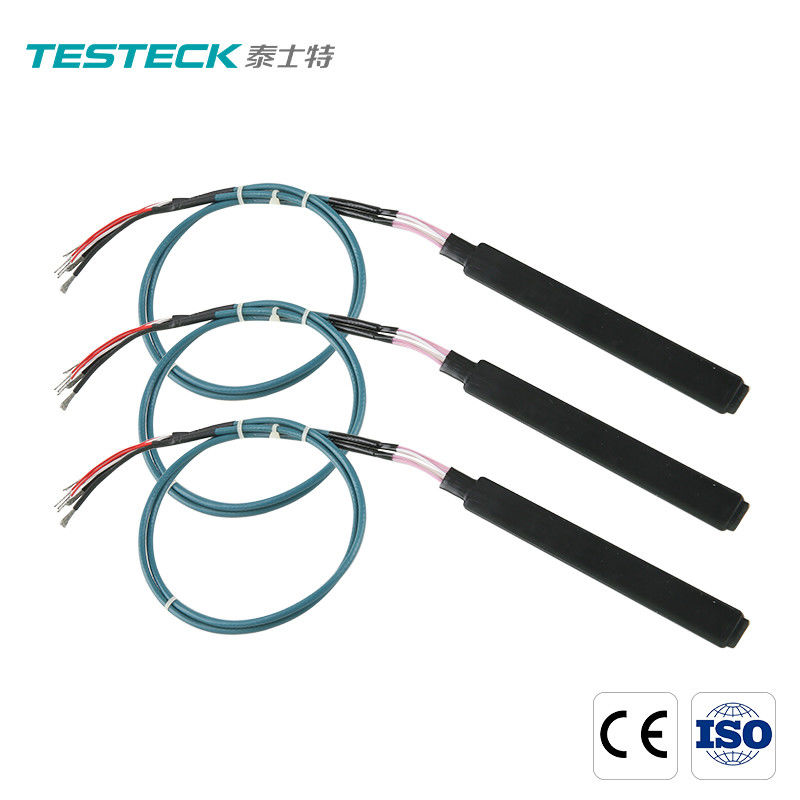

Chip Type Motor Winding RTD PT100 Resistance Temperature Detector
Stator RTD Sensor Resistance Temperature Detector
Ⅰ. Product description
The embedded thermal resistance used in motor is usually used to measure the stator temperature of large, medium and small motor (generator, motor). Due to the special installation position of the embedded thermal resistance for motor, there are high requirements for the size, high temperature resistance, insulation resistance, insulation strength, pressure resistance, anti-interference and thermal response time of the thermal resistance. The embedded thermal resistance products for motor produced by our company have the advantages of high precision, high stability, high temperature resistance, high insulation, anti corona, anti magnetization, etc., and the design service life is more than 15 years
Ⅱ. Product features
1. Chip type temperature sensing element and laser welding technology are used to prevent the solder joints from loosening or falling off under the strong vibration, which effectively improves the stability of measurement.
2. The wound type temperature sensing element is made of high-purity platinum wire wound into a spring (or other shape) and evenly embedded in the insulating plate. The temperature monitored by the wound type thermal resistance is the average temperature in the specified range.
3. The cable insulation layer is made of high temperature resistant and tensile resistant materials.
4. Packaging materials take into account, in particular, the resistance to magnetization, temperature, heat conduction and insulation.
5.The technical indexes are in accordance with jbt10500.1-2005, jbt10500.2-2005 and iec60751.
Ⅲ. Product application
1. Plastic injection molding machinery
2. Food processing equipment
3. Engine and turbine exhaust gas
4. Semiconductor processing
5. Heating treating and metals processing
6. Medical equipment
7. Aerospace industries
8. Packaging equipment
9. Test standards.
Ⅳ. Product Parameter (Specification) of the Chip type stator temperature sensor
| Model | Chip type stator temperature sensor |
| T2010Pt100-100-5-3200/01 | |
| Temperature measuring range | -50～180℃ |
| Wire system | Three wire system |
| Insulation grade | Class F (155 ℃), H (180 ℃) |
| Accuracy grade | Class A /B |
| Maximum excitation current | 5mA |
| Insulation resistance at room temperature | 100MΩ |
| Withstand voltage | 2500VAC/min |
| Pressure resistance | 2～4MPa |
| Lead longitudinal pressure resistance | 15～200N |
| Tightness | Immerse in water for 1H at ambient temperature |
| Thermal cycle | The change value of resistance at 0 ℃ shall not exceed 0.12 Ω |
| Application | It is applied in monitoring the temperature of generator stator winding, iron core and pressure finger. |
Ⅵ. delivery, shipment and service of temperature sensors
The temperature sensor is packed in cartons. If you need, we can also make it for you.
Ⅶ. FAQ
Q, are your manufacturer?
A, We are manufacturer, our factory localed in Shenzhen China.Our company mainly produces emperature Sensor .
Q, what product you manufacturer have?
A, Our factory produce temperature sensor for power station, Stators and cable for industry.
Q, how many production lines do you have?
A, We have 10 production lines in Shenzhen factory.
Q, how do you ensure product quality?
A, We already built a mechanical,electrical,fire and flame retardant laboratory, professional testing engineers.
Q, can you send samples?
A, Yes, we will supply sample before your make the order.
Q, How long will you give me the reply?
A, we will contact you as soon as we can.
Q, Could I visit your factory?
A, Sincerely welcome you to visit our factory.
