| Place of Origin: | China |
| Brand Name: | Testeck |
| Certification: | CE,ISO |
| Model Number: | TY-Cseries |
| Minimum Order Quantity: | 10 |
|---|---|
| Price: | Agree |
| Packaging Details: | customized packing |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 5000 pieces each month |
| Temperature Resistance Range: | -40℃～180℃ | Insulation Grade: | Class F Or H |
|---|---|---|---|
| Number Of Components: | Multiple Temperature Measuring Points | Insulation Strength: | 1000-2500VAC/min |
| Graduation: | PT100 / K / E / T (customized) | Pressure Resistant: | 2-4 MPa |
| High Light: | Stator Motor Winding RTD,Intergrated Forming Motor Winding RTD,PT100 Stator RTD |
||

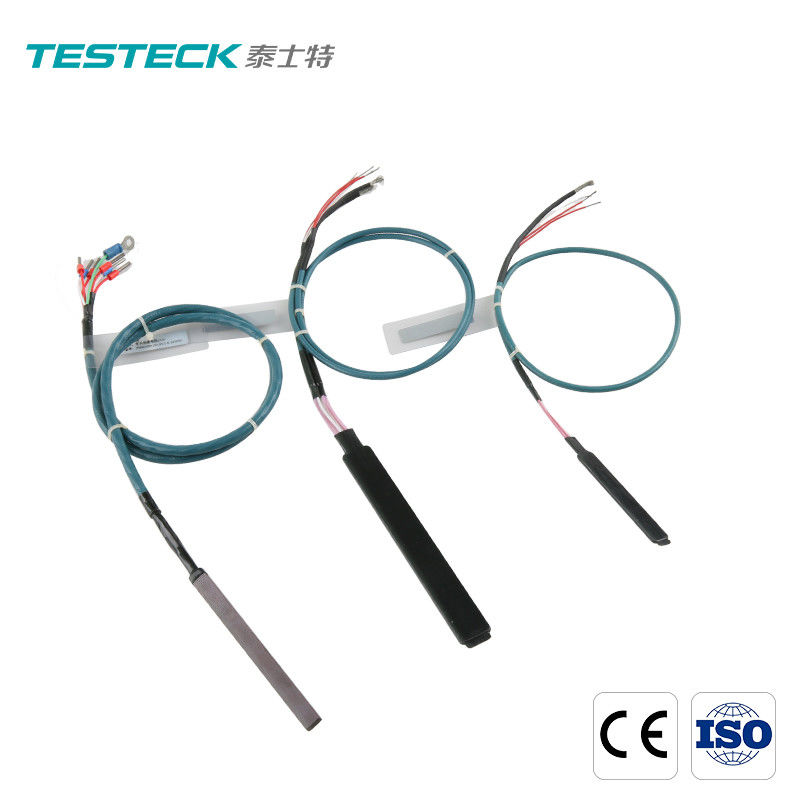

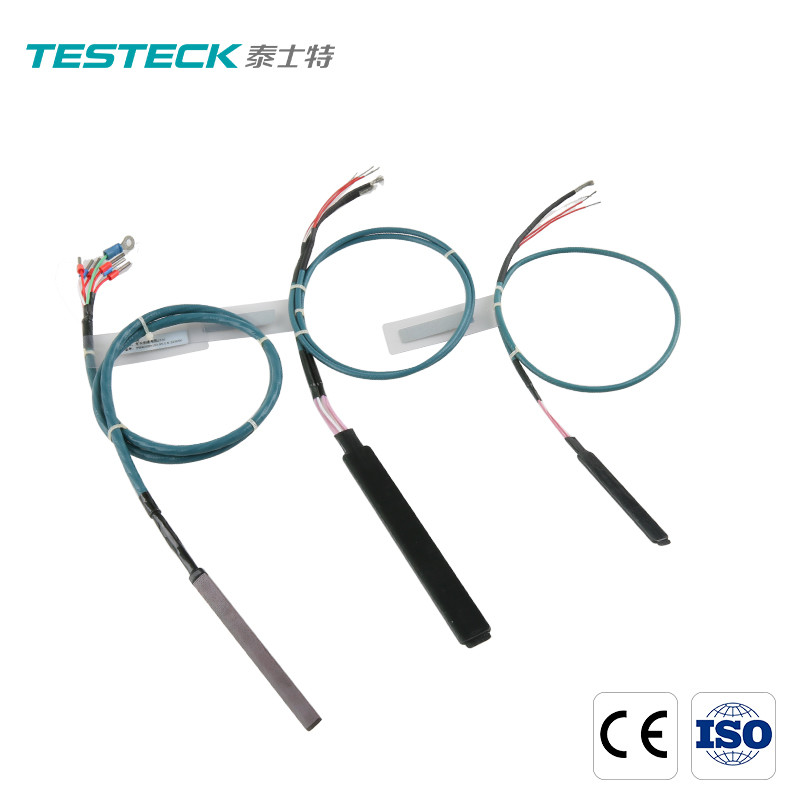

Intergrated Forming Stator Motor Winding RTD For Temperature Monitoring
Intergrated Forming Stator Temperature Sensor Temperature Monitoring
High-temperature and high-pressure integrated forming temperature sensor is usually used to measure the stator temperature of large and medium-sized generators. Based on the embedded thermistor temperature measuring element for motor, advanced insulating material processing technology is used to process the insulation filler strips of various shapes, and the patent technology of integrated high-temperature and high-pressure forming is used for one-time forming. After forming, the temperature measuring element (embedded thermal resistor for motor) is integrated with the insulation material to effectively avoid the influence of uncertain factors in the secondary assembly and packaging of the main engine plant. The high-temperature and high-pressure integrated forming temperature sensor features of high accuracy, high stability, high-temperature resistance, high-pressure resistance, high insulation, anti-corona, anti-magnetization, etc. Its designed service life is more than 15 years.
Integrated forming stator temperature sensor
1. Product Introduction of the Integrated forming stator temperature sensor
High-temperature and high-pressure integrated forming is available. After forming, the temperature measuring element (embedded thermal resistor for motor) are integrated with insulation material.It feature high precision, high stability and high reliability.
2. Product Parameter (Specification) of the Integrated forming stator temperature sensor
| Parameter item | Parameter index |
| High temperature and high pressure integrated molding | |
| Temperature resistance range ℃ | -40℃～180℃ |
| Insulation grade | Class F or H |
| Number of components | Multiple temperature measuring points |
| Insulation resistance at room temperature m Ω / 500VDC | ≥100 |
| Insulation strength | 1000-2500VAC/min |
| Pressure resistant MPa | 2-4 |
| Longitudinal tension resistance of lead n | 50-200n( related to structure) |
1. Application parameters and indicators are different. Please refer to each application for details. | |
3. Product Feature And Application of the Integrated forming stator temperature sensor
4. Product Details of the Integrated forming stator temperature sensor
The cable insulation layer is made of high-temperature and tension resistant materials.
In particular, magnetization resistance, temperature resistance and insulation performance shall be taken into consideration for packaging materials.
5. delivery, shipment and service of temperature sensors
The temperature sensor is packed in cartons. If you need, we can also make it for you.
6. FAQ
Q, are your manufacturer?
A, We are manufacturer, our factory localed in Shenzhen China.Our company mainly produces emperature Sensor .
Q, what product you manufacturer have?
A, Our factory produce temperature sensor for power station, Stators and cable for industry.
Q, how many production lines do you have?
A, We have 10 production lines in Shenzhen factory.
Q, how do you ensure product quality?
A, We already built a mechanical,electrical,fire and flame retardant laboratory, professional testing engineers.
Q, How about the quality of the managements ?
A, We have a complete quality control system , all of our products will be fully pre-inspection by QC departments before shipping to you .
Q, What is the warranty for your product ?
A, Warranty: 1 years, and lifetime maintenance online after-service.
