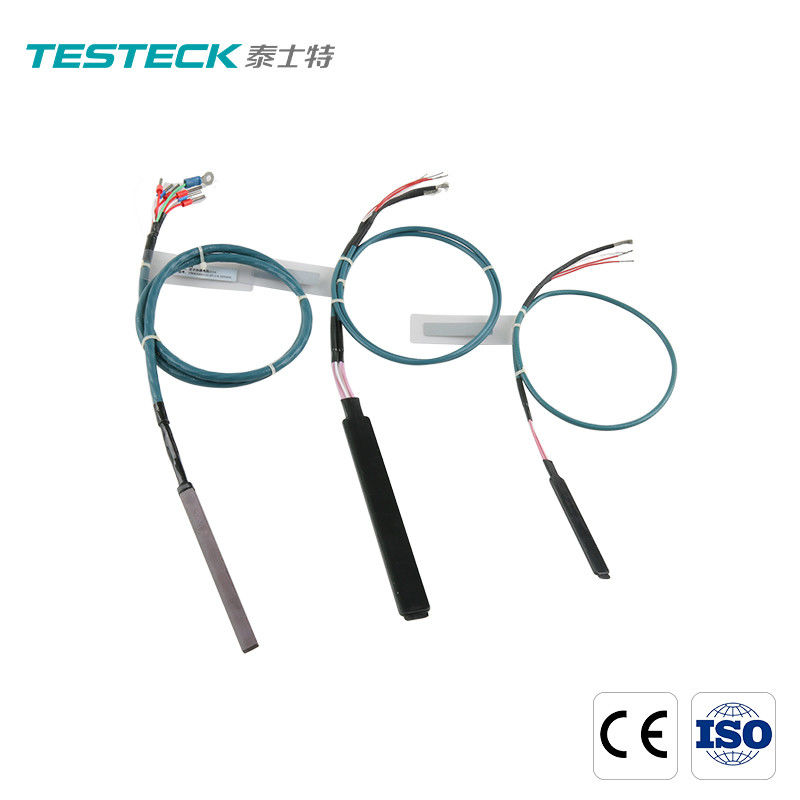

Embed Stator Winding Rtd Sensor 3 Wire Temperature Probe Epoxy Insulated

Embed Stator Winding Rtd Sensor 3 Wire Temperature Probe Epoxy Insulated

  • Embed Stator Winding Rtd Sensor 3 Wire Temperature Probe Epoxy Insulated
Embed Stator Winding Rtd Sensor 3 Wire Temperature Probe Epoxy Insulated
Product Details:
Place of Origin: China
Brand Name: Testeck
Certification: CE,ISO
Model Number: TY-Cseries
Payment & Shipping Terms:
Minimum Order Quantity: 10
Price: Agree
Packaging Details: customized packing
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 5000 pieces each month
Contact Now
Detailed Product Description
Temperature Resistance Range: -40℃~180℃ Lead Longitudinal Pressure Resistance: 15~200N
Insulation Strength: 1000-2500VAC/min Insulation Grade: Class F Or H
Number Of Components: Multiple Temperature Measuring Points Graduation: PT100 (customized)
High Light:

Embed Stator Winding Rtd Sensor

,

Rtd Sensor 3 Wire Temperature Probe

,

Epoxy Insulated Rtd Sensor 3 Wire

Embed Stator Winding Rtd Sensor 3 Wire Temperature Probe Epoxy Insulated



Pt100 Epoxy Insulated Embed Stator Winding Rtd Sensor 3-Wire Type



. Product description

High temperature and high pressure integrated temperature sensor is usually used to measure the stator temperature of large and medium generators. Based on the embedded thermal resistance temperature measuring element for motor, various shapes of insulation strips are processed by using advanced insulation material processing technology, and the integrated high temperature and high pressure molding patent technology is adopted for one-time molding. After molding, the temperature measuring element (embedded thermal resistance for motor) is integrated with the insulating material, effectively avoiding the influence of uncertain factors in the secondary assembly and packaging of the main engine factory. The high temperature and high pressure integrated molding temperature sensor has the advantages of high precision, high stability, high temperature resistance, high voltage resistance, high insulation, corona resistance and magnetization resistance, and the design service life is more than 15 years.



. Product features

1. Integrated molding of high temperature and high pressure, after molding, the temperature measuring element (embedded thermal resistance for motor) is integrated with the insulating material.

2. High precision, high stability and high reliability.

3. It has a wide range of dimensions, and can be used to form an integral part with a width of 500 mm, a length of 7300 mm and a thickness of 20 mm.

4. Various shapes can be formed, such as fan, rectangle and other shapes.

5. The number of temperature measuring points is large, and multiple temperature measuring areas (or temperature measuring points) can be arranged within the allowable size range.

6. Avoid the influence of uncertain factors caused by the secondary packaging of the main engine factory.



. Product application

We manufacture Stator Winding sensors that monitor insulation temperatures between stator winding parts and provide continuous protection for motors and generators. Temperature sensors are available as RTDs or Thermocouples and can be designed and manufactured with dimensions to fit any machine.



. Product Parameter (Specification) of the Chip type stator temperature sensor

Model Chip type stator temperature sensor
Number of components Multiple temperature measuring points are available
Temperature measuring range -50~200℃
Wire system Three wire system
Insulation grade Class F (155 ℃), H (180 ℃)
Accuracy grade Class A /B
Maximum excitation current 5mA
Insulation resistance at room temperature >100MΩ
Withstand voltage 1000~2500VAC/min
Pressure resistance 2~4MPa
Lead longitudinal pressure resistance 15~200N
Tightness Immerse in water for 1H at ambient temperature
Thermal cycle The change value of resistance at 0 ℃ shall not exceed 0.12 Ω



. delivery, shipment and service of temperature sensors

The temperature sensor is packed in cartons. If you need, we can also make it for you.



. FAQ

1, are your manufacturer?

We are manufacturer, our factory localed in Shenzhen China.

2, what product you manufacturer have?

Our factory produce temperature sensor for power station,

Stators and cable for industry.

3, how many production lines do you have?

We have 10 production lines in Shenzhen factory.

4, how do you ensure product quality?

We already built a mechanical,electrical,fire and flame retardant laboratory, professional testing engineers.

5, can you send samples?

Yes, we will supply sample before your make the order.
