Testeck Ltd.
Temperature sensor and low smoke halogen free flame retardant high temperature cable manufacturer:www.testeck.com/
 |
| Place of Origin: | China |
| Brand Name: | Testeck |
| Certification: | CE,ISO |
| Model Number: | TY-C |
| Minimum Order Quantity: | 10 |
|---|---|
| Price: | Agree |
| Packaging Details: | customized packing |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 5000 pieces each month |
| Temperature Measuring Range: | -50～180℃ | Pressure Resistance: | 2MPa |
|---|---|---|---|
| Insulation Grade: | Class F (155 ℃), H (180 ℃) | Maximum Excitation Current: | 5mA |
| Withstand Voltage: | 2500VAC/min | Lead Longitudinal Pressure Resistance: | 200N |
| High Light: | Pt100 Temperature Sensor 3 Wire,3 Wire Rtd Detector,Winding Patch Thermistor |
||

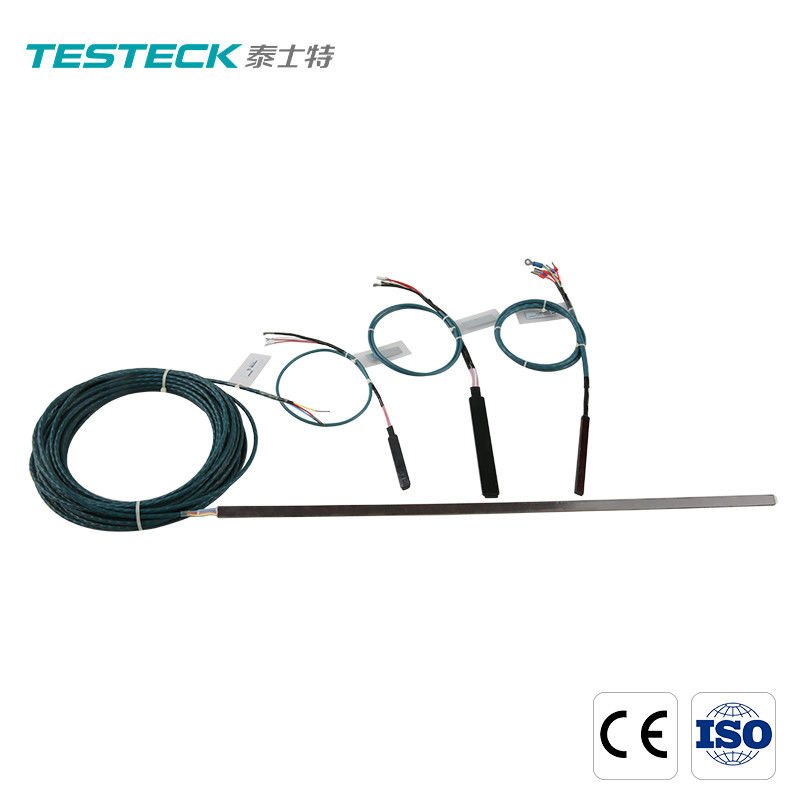

PT100 Temperature Sensor 3 Wire Rtd Detector Winding Patch Thermistor
TPT100 Temperature Sensor For Motor Stator Winding Surface Temperature Measurement
Winding stator temperature sensor (TW2010Pt100-100-3-3204/00F200/X) has small temperature rise and reliable temperature measurement. The temperature sensing element extends to most of the length of the sensing body to provide the average temperature reading in the temperature measurement area. This avoids the danger that the point temperature sensor misses the local hot spot.
Winding stator temperature sensor
1. Product Introduction of the Winding stator temperature sensor
The winding temperature sensing element adopts laser welding technology to prevent the solder joints from loosening or falling off in case of strong vibration, which effectively improves the stability of measurement.
2. Product Parameter (Specification) of the Winding stator temperature sensor
| Model | parameter |
| TW2010Pt100-100-2-3104/00F200/X2 | Winding patch thermistor |
| Temperature measuring range | -50～180℃ |
| Wire system | Three-wire system |
| Insulation grade | Class F (155 ℃), H (180 ℃) |
| Accuracy grade | Class A /B |
| Insulation resistance at room temperature | Greater than100MΩ |
| Withstand voltage | 2500VAC/min |
| Pressure resistance | 2MPa |
| Airtightness | Immerse in water for 1h at ambient temperature |
| Thermal cycle | The change value of resistance at 0℃ shall not exceed 0.12Ω. |
| Application | It is applied in monitoring the temperature of generator stator winding, iron core and pressure finger. |
3. Product Feature And Application of the Winding stator temperature sensor
4. Product Details of the Winding stator temperature sensor
The cable insulation layer is made of high-temperature and tension resistant materials.
In particular, magnetization resistance, temperature resistance and insulation performance shall be taken into consideration for packaging materials.
5. delivery, shipment and service of temperature sensors
The temperature sensor is packed in cartons. If you need, we can also make it for you.
6. FAQ
1, are your manufacturer?
We are manufacturer, our factory localed in Shenzhen China.
2, what product you manufacturer have?
Our factory produce temperature sensor for power station,
Stators and cable for industry.
3, how many production lines do you have?
We have 10 production lines in Shenzhen factory.
4, how do you ensure product quality?
We already built a mechanical,electrical,fire and flame retardant laboratory, professional testing engineers.
5, can you send samples?
Yes, we will supply sample before your make the order.
Contact Person: ALix
Tel: 13689565278
