| Place of Origin: | China |
| Brand Name: | Testeck |
| Certification: | CE，ISO |
| Model Number: | TY-S03 |
| Minimum Order Quantity: | 10 |
|---|---|
| Price: | Agree |
| Packaging Details: | Customized packing |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 3000 pieces each month |
| Product Name: | Assembled Hot Spot Couple / Resistor | Type: | PT100 K / E / Cu50, Etc |
|---|---|---|---|
| Measuring Range: | 0-1300 ℃ (long Term Use 0-1100 ℃ | Pipe Material: | Tetrafluoro, 304, 316, Etc |
| Diameter Of Protective Tube: | Others Can Be Customized As 8, 10, 12, 20, 25, Etc. | Installation Method: | Flange, Thread, Etc. Can Be Selected (contact |
| High Light: | PT100 Temp Sensor,PT100 Surface Thermocouple Probe,PT100 Thermocouple Temp Sensor |
||

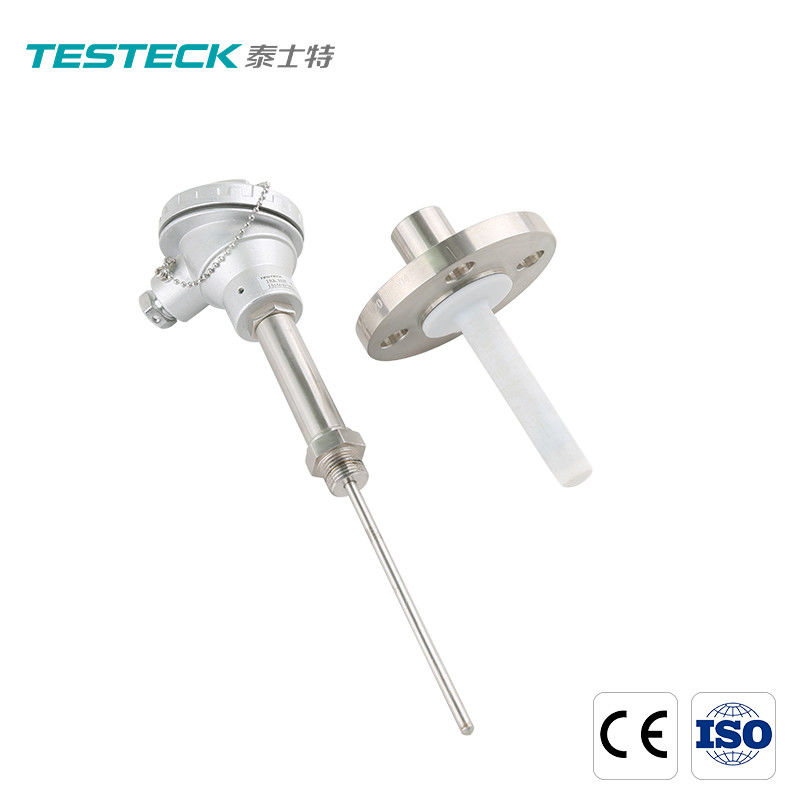

PT100 Temp Sensor Surface Thermocouple Probe Corrosion Resistant
Corrosion Resistant Thermocouple Industrial Design Accurate Measurement
Corrosion resistant thermocouple is specially manufactured for the temperature measurement of various corrosive media. Different corrosion-resistant materials can be selected according to the corrosion resistance characteristics of the medium, since some are special anti-corrosion products specially developed for the special physical and chemical properties of a certain medium. In addition the fixed installation device and the junction box can also have anti-corrosion properties according to user needs, so as to meet the requirements of full anti-corrosion. For more non-standard customized products, please consult Shenzhen Testeck Science and Technology Co., Ltd.
1. Product Standard
1.1 Electrical outlet: M20*1.5, NPT1/2
1.2 Thermal response time: ≤8S
1.3 Protection level: IP65 grinding head
1.4 Explosion-proof grade: dⅡBT4, dⅡCT5
2. Model and specification
| Materials | Operating temperature ℃ | Features and applications |
| 1Cr18Ni9Ti | -200～800 | It has high temperature corrosion resistance and is usually used as general heat-resistant steel. |
| 304 | -200～800 | Low carbon content, good intergranular corrosion resistance, usually used as general heat-resistant steel. |
| 316 | -200～750 | Low carbon content, good intergranular corrosion resistance, used as corrosion resistant steel. |
| 316L | -200～750 | Ultra-low carbon content, good crystal resistance and corrosion resistance, used as corrosion-resistant steel. |
3. Materials and selection of protective tube
Notes for ordering:
1. Indicate the thermocouple model, type, and operating temperature range.
2. Diameter, length, material, etc. of protective tube of thermocouple
3. Relevant sizes are required if there are fasteners and flange devices.
4. Application details of product
Corrosion-resistant thermocouple is the most ideal temperature sensor used in high temperature and wear-resistant environment in metallurgy, chemical industry, cement plant, power plant, and fluidized bed boiler industry. The wear-resistant protective tube is equipped with armored cores that are highly resistant to abrasion, corrosion, oxidation, and erosion. In further the protective tube can also play a good role in protecting the inner armored core under high temperature conditions.
5. Seatures of Thermocouple Temperature Sensor
