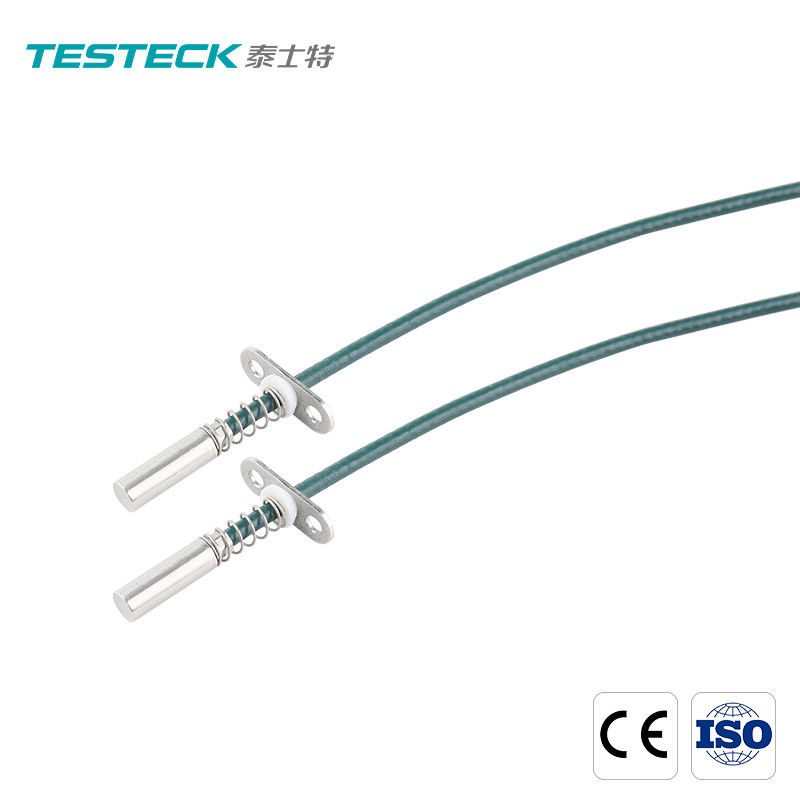

High Accuracy Three Wire Rtd Pt100 Class A Temperature Sensor

High Accuracy Three Wire Rtd Pt100 Class A Temperature Sensor

  • High Accuracy Three Wire Rtd Pt100 Class A Temperature Sensor
High Accuracy Three Wire Rtd Pt100 Class A Temperature Sensor
Product Details:
Place of Origin: China
Brand Name: Testeck
Certification: CE,ISO
Model Number: TY-S01
Payment & Shipping Terms:
Minimum Order Quantity: 10
Price: Agree
Packaging Details: Customized packing
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 5000 pieces each month
Contact Now
Detailed Product Description
Type: PT100 Ambient Temperature In Application: -50~200℃
Probe Material: 304 Accuracy Class: A, B
Diameter: Customizable Name: High Accuracy Three Wire Rtd
High Light:

High Accuracy Three Wire Rtd

,

Three Wire Rtd Pt100

,

Pt100 Class A Temperature Sensor

High Accuracy Three Wire Rtd Pt100 Class A Temperature Sensor



PT100 end temperature measurement temperature sensor 3-wire system



End-face thermocouple is composed of temperature measuring element, outer protection tube, compressed spring, process connection device, and shield extension, mainly used for bearing temperature measurement for steam turbine thrust bushes, water pipes of double water-cooled generators, and other mechanical equipment.



Ⅰ. End face thermocouple

The end thermocouple is generally composed of thermocouple compensation conductor, insulating pipe and protective sleeve, and its installation forms are various.

There is an international standard specification for thermocouples. The international regulations stipulate that thermocouples are divided into eight different divisions, namely PT100. The measurement temperature can be as low as minus 270 degrees Celsius and as high as 1,200 degrees Celsius. In addition, B, R and S belong to the platinum series thermocouples and, since platinum is a precious metal, such platinum series thermocouples are also called precious metal thermocouples and the remaining ones the cheap metals thermocouples.

For more non-standard customized products, please consult Shenzhen Testeck Science and Technology Co., Ltd.



Ⅱ. Product parameters

Specifications Parameters
TY-S Thermocouple
Type PT100
Accuracy class Class A, B
Ambient temperature in application -200~200℃
Structure of sensor SingleDouble
Protection tube material SUS304, SUS316, SUS321 (customer specified)
Process connection Various forms such as compressed tablet and movable thread



Ⅲ. Application of company products

RTD is the earliest mature application in the industrial process of measuring temperature sensor, the structure is relatively simple, manufacture easily, application range, and usually display instrument, such as recording instrument or computer systems.The temperature of various industrial processes can be directly measured.RTD temperature sensor is widely used in various fields of industrial production temperature measurement.



Ⅳ. Advantage of company products

l High accuracy.RTD measure accuracy is the highest in all thermometer ,it can up to 1mk

l Strong signal output, high sensitivity. PT100 measure at 0℃,when temperature change 1℃,resistance change 0.4Ω,if though current is 1mA,then the output voltage change 400μV. At the same condition, even the high sensitivity K type thermocouple, the electromotive force change only 40μV. From this, we can see the sensitivity of thermal resistance is higher very much than thermocouple.

l Good stability. At suitable working environment with small vibration, it can keep 0.1℃ accuracy at a very long working life.

l No need for reference junction, no need for compensating lead wire, temperature can get from resistance value directly.



Ⅴ. FAQ

1, are your manufacturer?

We are manufacturer, our factory localed in Shenzhen China.

2, what product you manufacturer have?

Our factory produce temperature sensor for power station,

Stators and cable for industry.

3, how many production lines do you have?

We have 10 production lines in Shenzhen factory.

4, how do you ensure product quality?

We already built a mechanical,electrical,fire and flame retardant laboratory, professional testing engineers.

5, can you send samples?

Yes, we will supply sample before your make the order.
