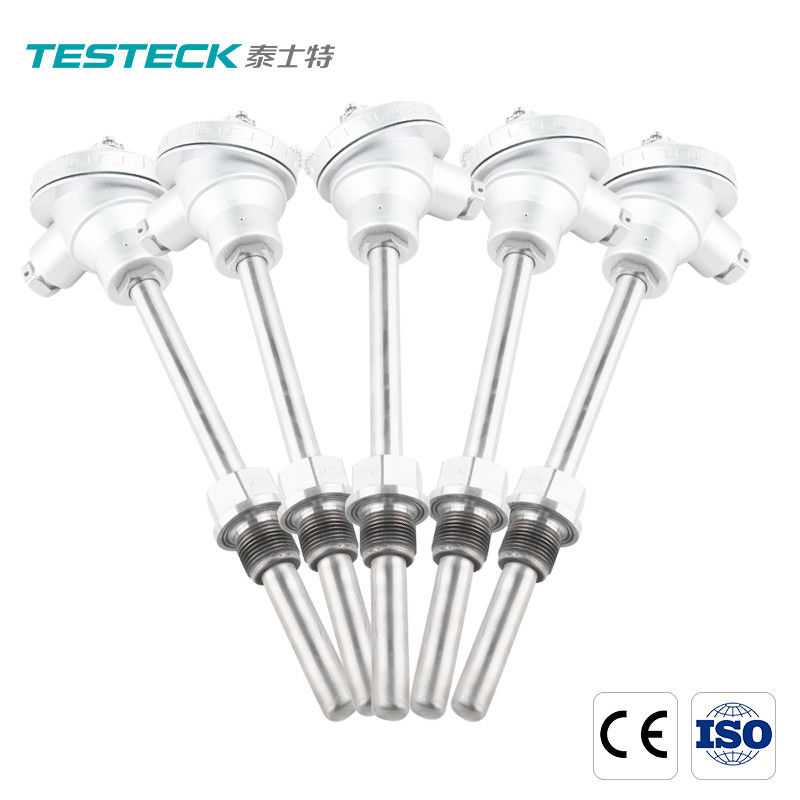

Wear Resistant SS316 Resistance Temperature Detector K Thermocouple

Wear Resistant SS316 Resistance Temperature Detector K Thermocouple

  • Wear Resistant SS316 Resistance Temperature Detector K Thermocouple
Wear Resistant SS316 Resistance Temperature Detector K Thermocouple
Product Details:
Place of Origin: China
Brand Name: Testeck
Certification: CE,ISO
Model Number: TY-S
Payment & Shipping Terms:
Minimum Order Quantity: 10
Price: Agree
Packaging Details: Customized packing
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 5000 pieces each month
Contact Now
Detailed Product Description
Index No: K Accuracy Class: 1,2
Pipe Material: 2520 (310S), 201, 304, 316, Gh3039, Etc Nominal Pressure: ≤9.8MPa
Installation Method: Flange, Thread, Etc. Can Be Selected (contact Customer Service For Details) Measuring Range: 0~1300℃
High Light:

SS316 Resistance Temperature Detector

,

SS304 Resistance Temperature Detector

,

SS316 K Thermocouple

Wear Resistant SS316 Resistance Temperature Detector K Thermocouple



High Temperature And High Pressure Wear Resistant Temperature Sensor



Integrated temperature transmitter with thermal resistance and thermocouple is the field mounted temperature transformer unit. It is composed of thermocouple and thermal resistance temperature transmitter module, adopts two wire method, with nonlinear correction circuit, can be directly measured in the process of industrial - within the range of 150 ℃ to 400 ℃, the temperature of liquid, gas medium and all kinds of substance, the temperature signal into with the temperature signal into a linear 4-20 madc current output signal, the display, adjust the recording instrument or computer for collecting and distributing control.



Boiler flue gas system temperature measurement



1. Product Introduction of the Boiler flue gas system temperature measurement

The measurement points of the smoke temperature system generally include the flue gas temperature of the superheater, the smoke temperature of the reheater, the smoke temperature of the economizer, and the smoke temperature of the air preheater.

Generally, thicker protective tubes and large-diameter connecting threads are used to improve the anti-vibration ability, and because of the erosion of solid particles in the smoke, sprayed wear-resistant casings are used to resist the erosion



2. Product Parameter (Specification) of the Boiler flue gas system temperature measurement

Index No. Temperature Range Nominal pressure Length/Depth Protected tube material Connect

K

E

Pt100

0-800℃ ≤9.8MPa

480/230

680/430

880/630

1380/1130

304

321

316

2"NPT

R2"

ZG2"

0-600℃
0-400℃



Index No. Temperature Range Nominal pressure Length/Depth Protected tube material Connect

K

E

Pt100

0-800℃ ≤9.8MPa

480/230

680/430

880/630

1380/1130

321

316

Wear-resistant spray(N)

2"NPT

R2"

ZG2"

0-600℃
0-400℃



3. Product Feature And Application of the Boiler flue gas system temperature measurement

Widely used in petroleum machinery, chemical machinery, compressor, power, boiler, natural gas and other automatic temperature
control system.



4. Product Details of the Boiler flue gas system temperature measurement



measurement points of the smoke temperature system generally include the flue gas temperature of the superheater, the smoke temperature of the reheater, the smoke temperature of the economizer, and the smoke temperature of the air preheater.

Generally, thicker protective tubes and large-diameter connecting threads are used to improve the anti-vibration ability, and because of the erosion of solid particles in the smoke, sprayed wear-resistant casings are used to resist the erosion

Wear Resistant SS316 Resistance Temperature Detector K Thermocouple 0
