Single Core Peek Railway Cable

Single Core Peek Railway Cable

  • Single Core Peek Railway Cable
Single Core Peek Railway Cable
Product Details:
Place of Origin: China
Brand Name: Testeck
Certification: Iris,CRCC,EN
Model Number: 2*0.1mm2
Payment & Shipping Terms:
Minimum Order Quantity: 1000
Packaging Details: Customized packing
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 5000 pieces each month
Contact Now
Detailed Product Description
Model Number: Peek 1*0.5 Purple Conductor Type: Stranded
Conductor Material: Tinned Copper Insulation Material: Peek
Sheath: Lszh Peek Core: 1 Core
High Light:

Single core peek Railway Cable

,

lszh peak Railway Cable

,

TUV SGS Railway Cable

Single core peek high temperature wire and cable



we supply peek cable high quality with UL TUV SGS certificated. we devoted ourselves to cable and wire manufacture many years,covering most of Europe and the Americas market. We are expecting become your long term partner in china.



1. Product features:

Rated voltage: 600V

1 , rated voltage: 600v

Working temperature: - 60 ~ + 250 ℃, 300 ℃ for short time

2. The working temperature: - 80 ~ + 250 ℃, a short time can be resistant to 350 ℃.

3. Conductor: strand silver plated copper wire

4, i nsulation:PEEK Color: gray

5, color: gray

Product Description: This product is a natural color of PEEK particles. Features / uses:

It has super strong mechanical properties, good toughness and rigidity, good fatigue resistance, good wear resistance and good self lubrication under the action of high alternating stress; High temperature resistance, continuous use temperature of 260 ℃; It has excellent electrical insulation performance, high voltage resistance, low high frequency loss, no moisture absorption and high insulation resistance; It has excellent flame retardancy, low smoke, halogen-free and environmental protection; Aging resistance, chemical corrosion resistance, radiation resistance, long service life. It can be used in aerospace, high-end machinery, chemical industry, nuclear industry, rail transit and other fields. Delivery requirements: according to the contract agreement of both parties, short delivery of not less than 10 meters is allowed.



2. Product Parameter (Specification) of the peek cable

Section Area mm2 Conductor construction NO.×mm Insulation Thickness mm Outer Diameter mm
0.014 7×0.05 0.15 0.45
0.035 7×0.08 0.15 0.54
0.05 1×0.26 0.17 0.6
0.07 1×0.30 0.2 0.7
0.08 7×0.12 0.2 0.76
0.12 7×0.15 0.2 0.85
0.2 7×0.20 0.25 1.1
0.35 19×0.16 0.25 1.3
0.5 19×0.18 0.25 1.4
0.75 19×0.23 0.275 1.7
1 19×0.26 0.25 1..8
1.2 19×0.28 0.3 2
1.5 19×0.32 0.3 2.2
2 19×0.37 0.3 2.45
2..5 19×0.41 0.4 6.86
4 37×0.37 0.4 3.38


3. Product Feature And Application of the peek cable

Peek cable has excellent resistance to high temperature, low temperature resistance, excellent electrical insulation performance,
high voltage resistance, aging resistance, long service life and soft and easy to install.



4. Product Details of the peek cable

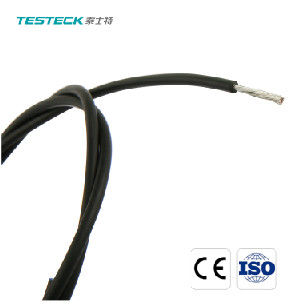

Single Core Peek Railway Cable 0



Peek cable

Widely used in lighting, household appliances, , lamps.electric appliances, instrumentation, motor wiring and electronics and other electrical wires. gas appliances and other high-temperature environment.



5. Product Qualification of the peek cable



peek cable certificated by TJ/CL313-2014 Technical requirements for wires and cables of EMU

class S1-S5 in DIN5510-2:2009

Class Ia, Ib and II locomotives in BS6853:1999

DIN5510-2:2009 Fireproof, smoke and toxicity testing.



6. FAQ



1, are your manufacturer?

We are manufacturer, our factory localed in Shenzhen China.

2, what product you manufacturer have?

Our factory produce temperature sensor for power station,

Stators and cable for industry.

3, how many production lines do you have?

We have 10 production lines in Shenzhen factory.

4, how do you ensure product quality?

We already built a mechanical,electrical,fire and flame retardant laboratory, professional testing engineers.

5, can you send samples?

Yes, we will supply sample before your make the order.
