Shockproof Pipeline Digital Temperature Sensors Room Humidity

Shockproof Pipeline Digital Temperature Sensors Room Humidity

  • Shockproof Pipeline Digital Temperature Sensors Room Humidity
  • Shockproof Pipeline Digital Temperature Sensors Room Humidity
Shockproof Pipeline Digital Temperature Sensors Room Humidity
Product Details:
Place of Origin: China
Brand Name: Testeck
Certification: CE ISO
Model Number: Pipeline Temperature Sensors
Payment & Shipping Terms:
Minimum Order Quantity: 20
Price: USD
Packaging Details: Standard Package
Delivery Time: 15-30
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 100000
Contact Now
Detailed Product Description
Material: Stainless Steel Size: 5 6 8 10
Usage: Shockproof Theory: Temperature Recorder
Output: 4-20mA/1-5V(Customized) Temperature Range: 0-1300
High Light:

PT100 Digital Temperature Recorder Digital Temperature Sensors

,

PT1000 Digital Temperature Sensors

,

PT100 Thermocouple Temperature Sensor

Shockproof Pipeline Digital Temperature Sensors Room Humidity



Digital Room Humidity Shockproof Pipeline Temperature Sensor



       1. Product Introduction of the Pipeline and auxiliary temperature sensor
        Steam temperature before and after desuperheater of steam system
       The steam temperature before and after the desuperheater is generally high-temperature and high-pressure welded temperature sleeves, and the sleeve material is the same as the pipe material. Usually use Φ5 or Φ6 armored components for temperature measurement.
Boiler steam temperature
       The boiler steam temperature measurement points include the steam temperature at the outlet of the superheater and the steam temperature at the outlet of the reheater. Generally, welded integrally drilled temperature casing or high temperature and high pressure type temperature casing are used, and the material selection is the same as that of the pipe



        2. Product Parameter (Specification) of the Pipeline and auxiliary temperature sensor

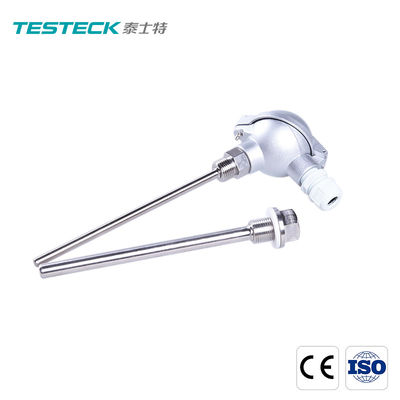

With double sleeve structure, the outer sleeve is fixed on the pipeline for sealing treatment. If the use environment allows, the sensor can be installed and disassembled without stopping the machine, realizing flexible wiring, reliable and convenient.
        Chip-type temperature-sensing components are used inside and laser welded to enhance stability.

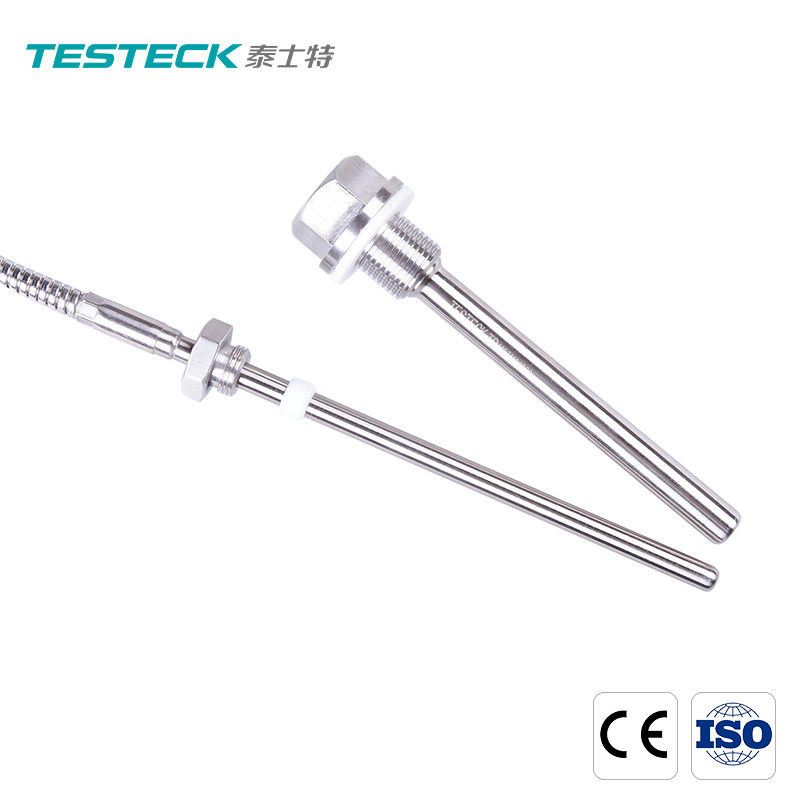

        The temperature measuring resistor adopts the threaded structure of the movable ferrule. Its advantage is that the insertion depth of the temperature measuring resistor can be arbitrarily controlled. At the same time, when the temperature measuring resistor is installed and removed, only the movable nut needs to be tightened, and the tail wire will not rotate with it.
        The wire can be protected by a stainless steel metal hose to avoid mechanical damage to the wire and facilitate field wiring.
Oil-resistant and high-temperature resistant conductors have reliable shielding, which guarantees no aging and cracking for 8 years.



        3. Product Feature And Application of the Pipeline and auxiliary temperature sensor
Used for monitoring the air temperature of the air cooler of the turbine, the temperature of the cooling water pipeline and the oil pipeline


        4. Product Details of the Pipeline and auxiliary temperature sensor

The sensor is dismantled without stopping to realize the rapid disassembly and assembly of the sensor. The temperature sensor of the double-tube structure is adopted at the measuring points of the air temperature, water pipeline and oil pipeline.

         The sensor is dismantled without stopping to realize the rapid disassembly and assembly of the sensor. The temperature sensor of the double-tube structure is adopted at the measuring points of the air temperature, water pipeline and oil pipeline.



Specifications
Parameters
TY-C
End-face thermal resistor
Type
Pt100, Pt1000
Accuracy class
Class A, B
Ambient temperature in application
-50~200℃
Wire system
Two-wire, three-wire, and four-wire
Structure of sensor
Single/Double
Material of probe
SUS304, SUS316, SUS321 (customer specified)
Process connection
Compressed plate, flexible thread, etc. (customer specified)



                      Shockproof Pipeline Digital Temperature Sensors Room Humidity 0
