Testeck Ltd.
Temperature sensor and low smoke halogen free flame retardant high temperature cable manufacturer:www.testeck.com/
 |
| Place of Origin: | China |
| Brand Name: | Testeck |
| Certification: | CE，ISO,CRCC |
| Model Number: | TY-S011 |
| Minimum Order Quantity: | 100 |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Customized packing |
| Delivery Time: | 15-20 |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 5000 pieces each month |
| Name: | IP68 Liquid Input Type Water Level Sensor Transmitter | Operating Temperature: | -50-110℃ |
|---|---|---|---|
| Application: | IP68 Liquid Input Type Water Level Sensor Transmitter | Grade: | Probe IP68 |
| Installation Method: | Flange, Thread, Etc. Can Be Selected (contact Customer Service For Details) | Accuracy Error: | ±0.1% |
| Output Signal: | 4-20mA.DC | Usage: | Industrial |
| Power Supply: | 24VDC | Temperature Range: | -50~600 |
| Accuracy: | 0.2/0.5 | Theory: | IP68 Liquid Input Transmitter |
| Material: | 304SS | ||
| High Light: | IP68 Water Level Transmitter,24VDC Water Level Transmitter,IP68 Submersible Level Transmitter |
||

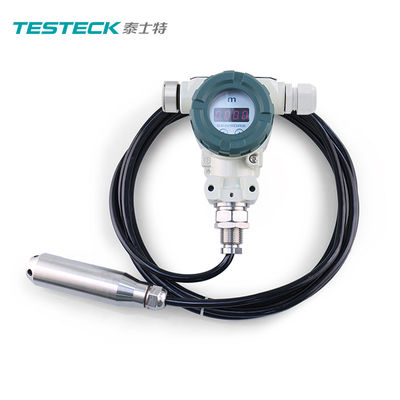

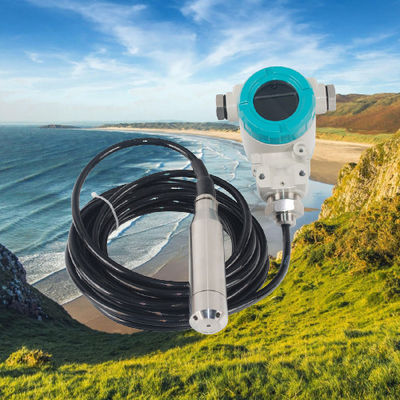

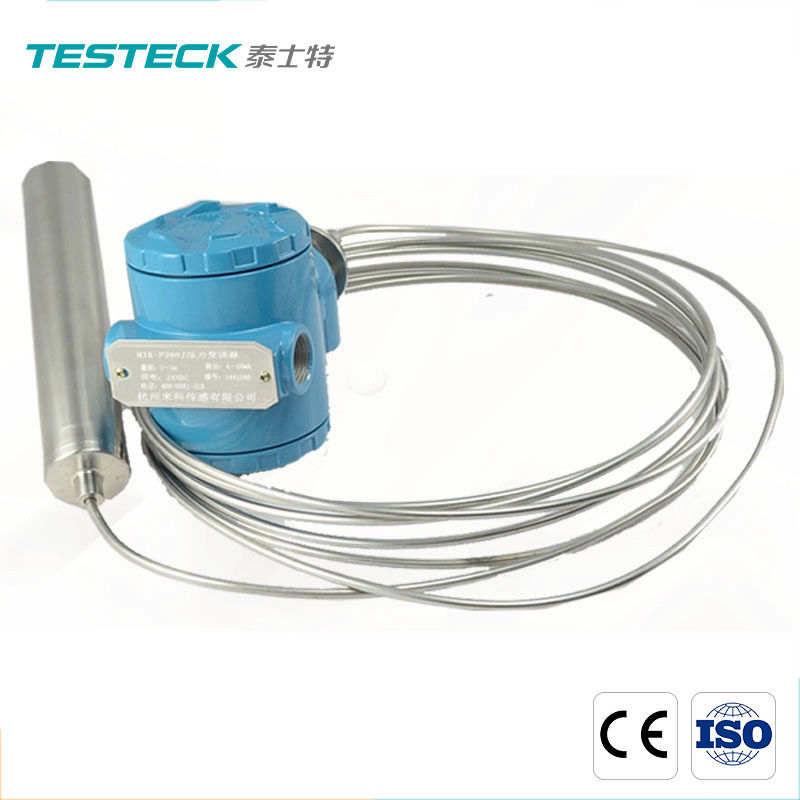

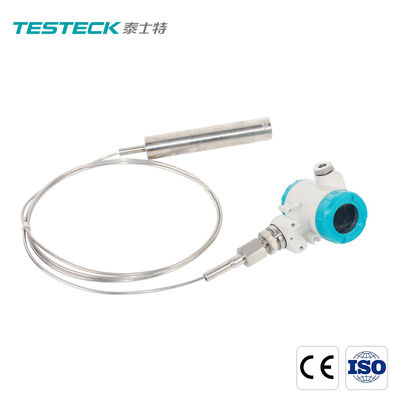

Liquid IP68 Water Level Transmitter 24VDC Power Supply For Industrial
24V DC Adjustable Input Type Transmitter Digital Temperature Transmitter
Product Description
Characterized by integrating installation and compact size, GL-136FTWD 24V DC Adjustable Input Type Temperature Transmitter is cost-effective, economical and practical, designed with output two-wire 4-20mA signal. It is widely used for temperature measurement in such industries as petroleum, chemical, metallurgy, environmental protection, food, water conservancy, urban water supply, oil field and others. Thanks to the excellent quality, the input-type temperature transmitter meets the needs of industrial automation and can function as a pool temperature detection instrument for measurement automation in some industries.
Product parameters
| Specifications | Parameters |
| GL-136FTWD | 24v adjustable Input-type temperature transmitter |
| Measuring range | -50-100 (can be customized arbitrarily within the measuring range) |
| Accuracy | 0.5%F.S |
| Output signal | 4—20mA |
| Load | ＜500Ω |
| Operating temperature | -50-100℃ |
| Protection grade | Probe IP68, transmitter housing IP65 |
| Temperature drift on zero | 0.03%FS/℃(≤100KPa)0.02%FS/℃(＞100KPa) |
| Temperature drift on full scale | 0.03%FS/℃(≤100KPa)0.02%FS/℃(＞100KPa) |
| Operating Voltage | 12-36VDC |
Application of Company Products
It is widely used for the temperature measurement in such industries as petroleum, chemical, metallurgy, environmental protection, food, water conservancy, urban water supply, oil fields and others.
4. Product Details
Good stability, high precision, high performance/price ratio, directly put into the measured medium, easy to install and use, solid structure, no moving parts, high reliability, long service life, 4-20mA output.
