Testeck Ltd.
Temperature sensor and low smoke halogen free flame retardant high temperature cable manufacturer:www.testeck.com/
Place of Origin: | China |
Brand Name: | Testeck |
Certification: | Iris,CRCC,EN |
Model Number: | EN50306-4 3P(E) |
Minimum Order Quantity: | 1000 |
---|---|
Price: | Agree |
Packaging Details: | Customized packing |
Payment Terms: | T/T, Western Union, MoneyGram |
Supply Ability: | 5000 pieces each month |
The Rated AC Voltage Is: | 300/500v、0.6/1kv | Number Of Cores: | 2-40 Cores |
---|---|---|---|
Section Mm²: | 0.5~1.5 Mm² | Working Temperature: | -40℃~90℃ |
Maximum Short Circuit Temperature: | 200℃,5s | PH Value: | ≥4.3 |
Conductivity: | ≤10us/mm | Transmittance: | ≥70% |
High Light: | 300V Three Core Wire,CRCC High Temperature Three Core Wire,CRCC High Temperature Control Cable |

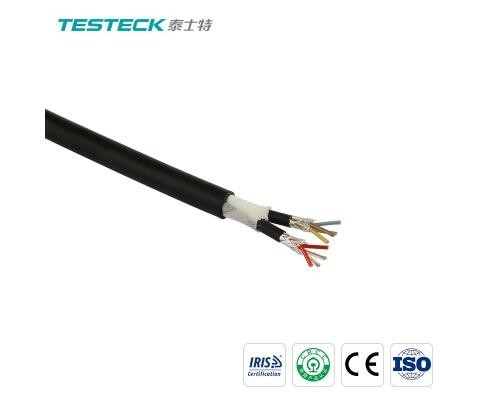

300V Three Core Fire Retardant Wire High Temperature Control Cable
Three Core Standard Wall Thickness Cable (0.6/1kv) Control Cable
we supply control cable high quality with UL TUV SGS certificated. we devoted ourselves to cable and wire manufacture many years,covering most of Europe and the Americas market. We are expecting become your long term partner in china.
control cable
Ⅰ. Product Introduction of the control cable
Control cable suit to the equivalent European standard toxicity index shall not be greater than and the equivalent TB standard toxicity index shall not be greater than the cable can be used in the occasion polluted by mineral oil and fuel oil. The cable is resistant to single cable vertical burning, Solvent resistance, acid and alkali resistance. Cables can be produced in various colors according to customer requirements.
Ⅱ. Product Parameter (Specification) of the control cable
Model | Voltage class | Number of cores | Section mm² |
EN50306-4 1P(E) | 300V | 2~48 | 0.5~1.5 mm² |
EN50306-4 1P(E) | 300V | 2~4 | 2.5 mm² |
EN50306-4 3P(E) | 300V | 2~8 | 0.5~1.5 mm² |
EN50306-4 3P(E) | 300V | 2~4 | 2.5 mm² |
EN50306-4 5P(E) | 300V | 2~7yes | 0.5~1.5 mm² |
Ⅲ. Product Feature And Application of the control cable
In case of fire, the product of this unit can limit the spread of flame, reduce the emission of toxic gas and smoke, reduce the loss of visibility and make personnel evacuate quickly.
The control cable and related circuits involved in this unit can reduce the harm to people and improve the safety of transportation in case of fire. For the cables with or without sheaths, the insulation and sheath shall be halogen-free materials.
Ⅳ. Product Details of the control cable
control cable rated AC voltage of the cable is 300V. The operation temperature of the cable is-40℃~90℃ and -40℃~105℃. The maximum short-circuit temperature shall be 160℃, 5s. In case of fire, such cables have excellent performance in preventing flame spreading, smoke and toxic gas emission.Safety: The chlorine content of the cable is 0, so there is no hydrogen chloride gas overflowing during overheating or combustion, and there is no damage to people, instruments and meters.Allowable bending radius of cable: For fixed laying, it is 5 times of cable outer diameter; for non fixed laying, it is 6 times of cable outer diameter.The cable meets the low-smoke and halogen-free performance. The gas release testing during cable combustion meets the requirements of total halogen gas < 5mg/g, pH value ≥ 4.3, conductivity≤10us/mm and light transmittance≥70%.
Ⅴ. Deliver,Shipping And Serving of the
packing with carton box , We also can customized for you if your order need.
Ⅵ. FAQ
1, are your manufacturer?
We are manufacturer, our factory localed in Shenzhen China.
2, what product you manufacturer have?
Our factory produce temperature sensor for power station,
Stators and cable for industry.
3, how many production lines do you have?
We have 10 production lines in Shenzhen factory.
4, how do you ensure product quality?
We already built a mechanical,electrical,fire and flame retardant laboratory, professional testing engineers.
5, can you send samples?
Yes, we will supply sample before your make the order.
