Testeck Ltd.
Temperature sensor and low smoke halogen free flame retardant high temperature cable manufacturer:www.testeck.com/
 |
| Place of Origin: | China |
| Brand Name: | Testeck |
| Certification: | CE，ISO |
| Model Number: | TY-S08 |
| Minimum Order Quantity: | 10 |
|---|---|
| Price: | Agree |
| Packaging Details: | Customized packing |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 5000 pieces each month |
| Measuring Range: | -50-200 (Can Be Customized Arbitrarily Within The Measuring Range) | Accuracy Error: | ±0.1% |
|---|---|---|---|
| Temperature Measurement Range: | -200℃～1600℃ (The Range Can Be Adjusted According To The Sensor Type) | Output Signal: | 4-20mA.DC |
| Explosion-proof Grade: | ExiaIICT6 Ga /ExdIICT6 Gb | Joint Material: | All 304 Stainless Steel |
| High Light: | 304 Stainless Steel Digital Temperature Transmitter,SS304 Digital Temperature Transmitter,Exia II CT6 Ga Temperature Transmitter |
||

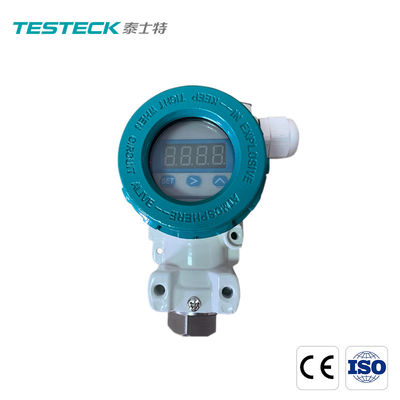

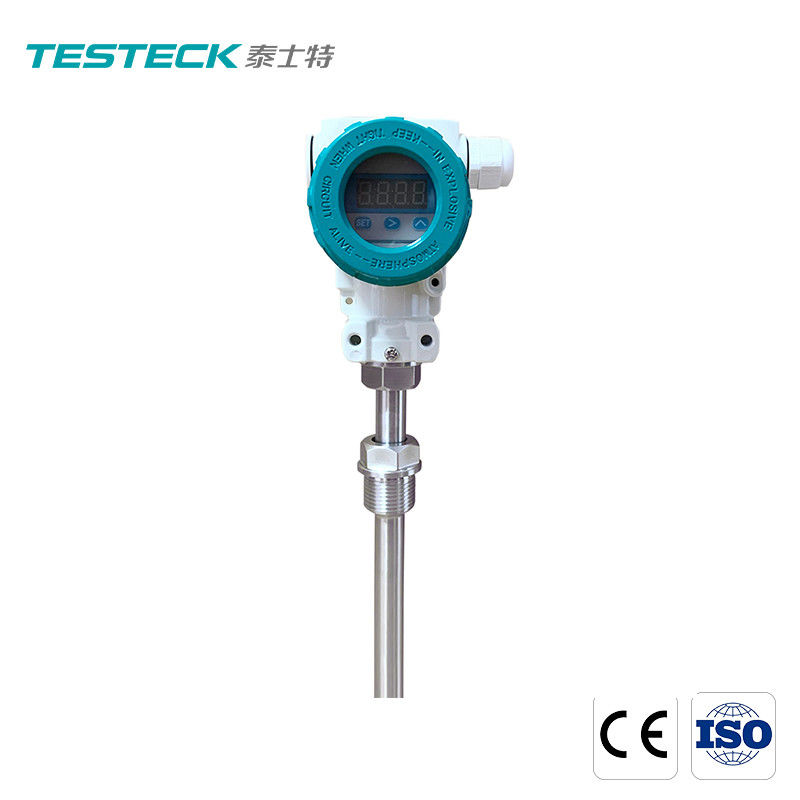

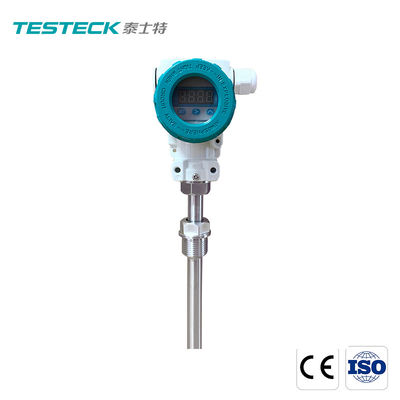

304 Stainless Steel Digital Temperature Transmitter Accurate Measurement
Digital Temperature Transmitter Accurate Measurement And Use More Conveniently
The integrated temperature transmitter is composed of temperature sensor (thermocouple or thermal resistor) and two-wire temperature transmitter module. The product integrates temperature signal acquisition, signal compensation correction processing, and standard signal output, and finally converts temperature signal to the standard 4-20mA signal output that can also be superimposed with HART communication protocol. Characterized by high measurement accuracy, stable performance, strong anti-interference ability, and large transmission distance, the product can be used with temperature display module to display temperature on the spot.
Thanks to the excellent quality, the integrated temperature transmitter meets the needs of industrial automation, and functions as pool temperature detection instrument for measurement automation in some industries.
For more non-standard customized products, please consult Shenzhen Testeck Science and Technology Co., Ltd.
1. Product Parameters
| Specifications | Parameters |
| TY-S08 |
Integrated temperature transmitter-explosion-proof type |
| Measuring range |
-50-100 (Can be customized arbitrarily within the measuring range) |
| Accuracy error | ±0.1% |
| Temperature measurement range |
-200℃～1600℃ (The range can be adjusted according to the sensor type) |
| Input signal | Thermocouple (various types), thermal resistance (varioustypes) |
| Output signal | 4-20mA.DC |
| Communication protocol | HART, PA, FF |
| Power supply | 24V.DC (battery available) |
| Protection grade | IP65 |
| Explosion-proof grade | ExiaIICT6 Ga /ExdIICT6 Gb |
2. Application
It is widely used in industrial sectors and enterprises, including the metallurgy, chemical, textile, printing and dyeing, papermaking, rubber, plastics, ceramics, granary, etc.
3. delivery, shipment and service of temperature sensors
The temperature sensor is packed in cartons. If you need, we can also make it for you.
4. FAQ
1, are your manufacturer?
We are manufacturer, our factory localed in Shenzhen China.
2, what product you manufacturer have?
Our factory produce temperature sensor for power station,
Stators and cable for industry.
3, how many production lines do you have?
We have 10 production lines in Shenzhen factory.
4, how do you ensure product quality?
We already built a mechanical,electrical,fire and flame retardant laboratory, professional testing engineers.
5, can you send samples?
Yes, we will supply sample before your make the order.
