| Place of Origin: | China |
| Brand Name: | Testeck |
| Certification: | Iris,EN,CRCC |
| Model Number: | KVVP |
| Minimum Order Quantity: | 1000 |
|---|---|
| Price: | Agree |
| Packaging Details: | Customized packing |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 5000 pieces each month |
| Temperature Resistance: | -65℃～+200℃ | Conductor Material: | Bare Copper/Tinned Copper |
|---|---|---|---|
| Sheath Material: | PVC Or FEP | Insulation Layer: | PVC Or FEP |
| Shielding Layer: | Copper Tape / Braided Shield | Rated Voltage: | 0.6/1kv, 450 / 750V |
| High Light: | PVC Insulated Power Station Cable,Copper Core Power Station Cable,kvvp cable |
||

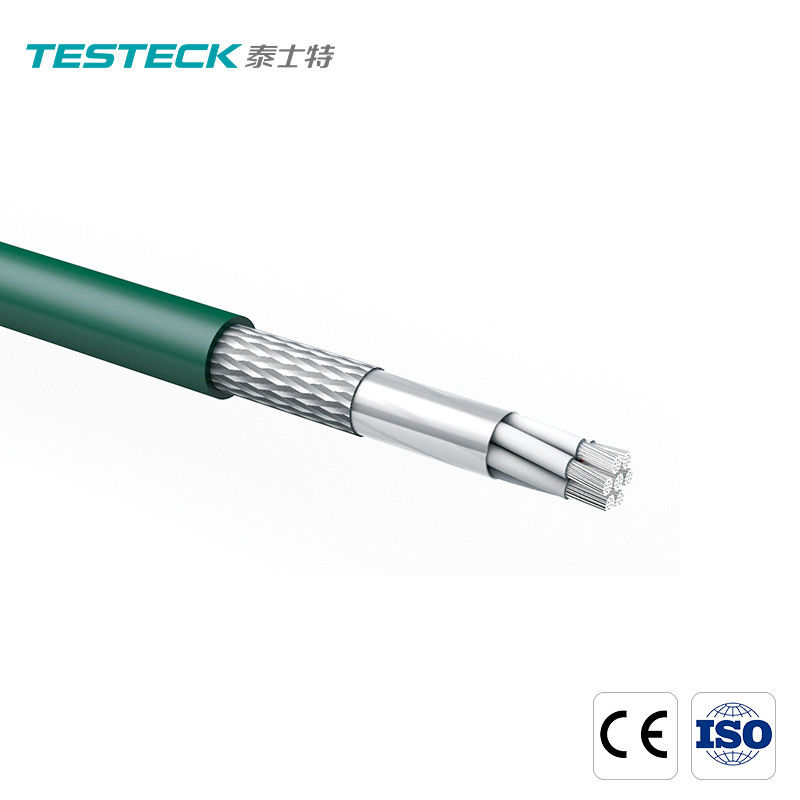

Copper Core PVC Insulated PVC Sheathed Textile Shielded Control Cable
KVVP It is used for control, signal, protection and measurement wiring of rated voltage and below or 450V 750V 0.6/1kv and below
Power frequency rated voltage UO/U is 450/750 or 0.6/1KV
The allowable long-term maximum working temperature of the cable conductor is 70℃
The cable laying environment temperature is not less than 0℃, if the environment temperature is below 0℃, the cable should be preheated
The allowable bending radius of the armored cable should not be less than 6 times the outer diameter of the cable
The allowable bending radius of armored or copper tape shielded cables should not be less than 12 times the outer diameter of the cable
The allowable bending radius of the shielded flexible cable should not be less than 6 times the outer diameter of the cable
Ⅰ. Product Introduction of the KVVP control cable
This product complies with GB9330 "Plastic insulated control cable", IEC 60227 "Polyvinyl chloride insulated cable with rated voltage 450/750V and below"
Ⅱ. Product Parameter (Specification) of the KVVP control cable
| Model Number | KVVP | Conductor material |
Bare copper/Tinned copper |
| Rated voltage | 0.6/1kv, 450 / 750V | Shielding layer |
Copper tape / braided shield |
| Sheath material | PVC or FEP | Insulation layer | PVC or FEP |
Ⅳ. Product Feature And Application of the KVVP control cable
Applied to control, signal, protection and measurement wiring of rated voltage or below or below
Ⅳ. Product Details of the KVVP control cable
Power frequency rated voltage UO/U is 450/750 or 0.6/1KV
Allowable long-term maximum working temperature of cable conductor 70℃
The cable laying environment temperature is not less than 0℃, if the environment temperature is below 0℃, the cable should be preheated
The allowable bending radius of unarmored cables should not be less than 6 times the outer diameter of the cable
The allowable bending radius of armored or copper tape shielded cables should not be less than 12 times the outer diameter of the cable
The allowable bending radius of the shielded flexible cable should not be less than 6 times the outer diameter of the cable
Flame retardancy meets GB/T19666-2005
Ⅴ. Deliver,Shipping And Serving of the
packing with carton box , We also can customized for you if your order need.
Ⅵ. FAQ
1, are your manufacturer?
We are manufacturer, our factory localed in Shenzhen China.
2, what product you manufacturer have?
Our factory produce temperature sensor for power station,
Stators and cable for industry.
3, how many production lines do you have?
We have 10 production lines in Shenzhen factory.
4, how do you ensure product quality?
We already built a mechanical,electrical,fire and flame retardant laboratory, professional testing engineers.
5, can you send samples?
Yes, we will supply sample before your make the order.
