| Place of Origin: | China |
| Brand Name: | Testeck |
| Certification: | Iris,EN,CE,CRCC |
| Model Number: | AFPF-DYT-307020 |
| Minimum Order Quantity: | 1000 |
|---|---|
| Price: | Agree |
| Packaging Details: | Customized packing |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 5000 pieces each month |
| Model: | AFPF-DYT-307020 | Rated Voltage: | 600V |
|---|---|---|---|
| Temperature Resistance: | -60℃～+200℃ | No./section: | 3 X 0.20 Mm² |
| Outer Diameter: | 3.20 Mm | Outer Diameter Range: | 3.15 - 3.35 |
| High Light: | 600V Power Station Cable,3.20mm Signal Transmission Cable,3.20mm Signal Transmission Power Station Cable |
||
High Precision Temperature Measurement Signal Transmission Wire And Cable
The line resistance of each group is less than or equal to 0.05 ohm per 100 meters, so that the entire measurement loop can reach A-level accuracy
Excellent electrical insulation performance and high temperature resistance, stable signal transmission, low contact resistance; strong acid and alkali resistance, oil resistance, flame retardant, anti-aging, long service life

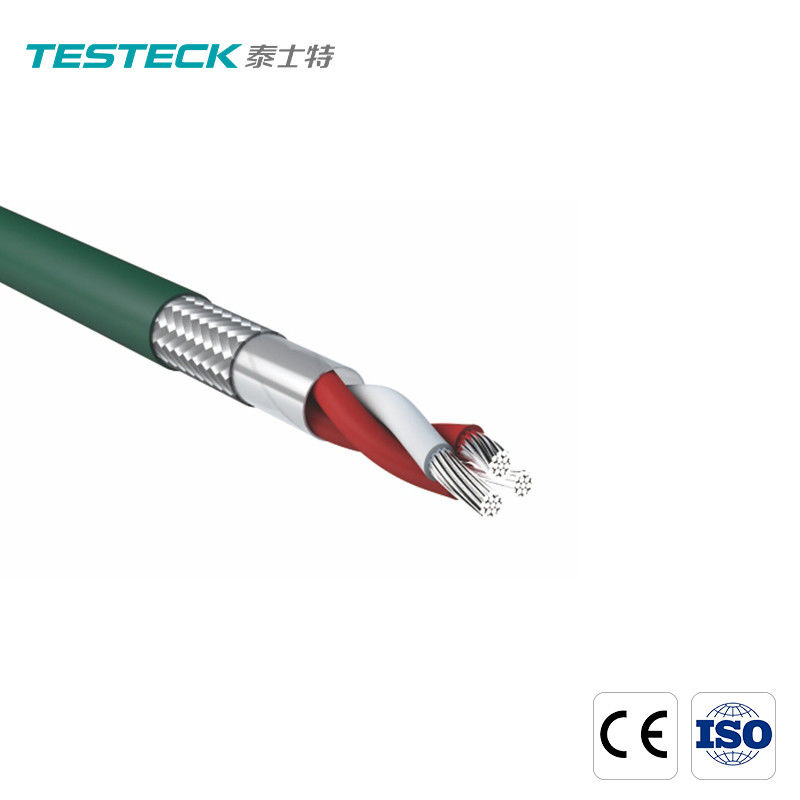

Power station high-precision temperature measuring cable
Ⅰ. Product Introduction of the Power station high-precision temperature measuring cable
The line resistance of each group is less than or equal to 0.05 ohm per 100 meters, so that the entire measurement loop can reach A-level accuracy
The conductor is tinned or silver plated
Insulation and sheath are made of polyfluoroethylene propylene
Shielding is made of copper or tinned copper
Rated temperature range -60℃~200℃
Rated voltage 300V
Excellent electrical insulation performance and high temperature resistance, stable signal transmission, low contact resistance; strong acid and alkali resistance, oil resistance, flame retardant, anti-aging, long service life
Ⅱ. Product Parameter (Specification) of the Power station high-precision temperature measuring cable
| Model | No./section mm² | Outer diameter mm | Outer diameter range | Color of insulation | Color of sheath |
| AFPF-DYT-307020 | 3 x 0.20 | 3.20 | 3.15 - 3.35 | Red + red +white | Dark green |
| AFPF-DYT-319015 | 3 x 0.35 | 3.60 | 3.5 - 3.7 | Red + red +white | Dark green |
| AFPF-DYT-319020 | 3 x0.6 | 4.4 | 4.3 - 4.55 | Red + red +white | Dark green |
| AFPF-DYT-419020 | 4 x 0.6 | 4.6 | 4.5 - 4.75 | Red + red + white + white | Dark green |
| AFPF-DYT-607015 | 6 x 0.12 | 3.45 | 3.4 - 3.55 | Red+red+white,yellow+black+black | Dark green |
| AFPF-DYT-607020 | 6 x 0.2 | 4.1 | 4.0 - 4.2 | Red+red+white,yellow+black+black | Dark green |
| AFPF-DYT-619015 | 6 x 0.35 | 4.7 | 4.6 -4.8 | Red+red+white,yellow+black+black | Dark green |
| AFPF-DYT-616020 | 6 x 0.5 | 5.3 | 5.2 - 5.4 | Red+red+white,yellow+black+black | Dark green |
| AFPF-DYT-307020 | 3 x 0.2 | 3.2 | 3.15 - 3.25 | Red+red+white | transparent |
Ⅲ. Product Feature And Application of the Power station high-precision temperature measuring cable
Applied to sensor signal transmission, suitable for working in various harsh environments.
Ⅳ. Product Details of the Power station high-precision temperature measuring cable
The line resistance of each group is less than or equal to 0.05 ohm per 100 meters, so that the entire measurement loop can reach A-level accuracy
The conductor is tinned or silver plated
Insulation and sheath are made of polyfluoroethylene propylene
Shielding is made of copper or tinned copper
Rated temperature range -60℃~200℃
Rated voltage 300V
Ⅴ. Deliver,Shipping And Serving of the Power station high-precision temperature measuring cable
Power station high-precision temperature measuring cable packing with carton box , We also can customized for you if your order need.
Ⅵ. FAQ
1, are your manufacturer?
We are manufacturer, our factory localed in Shenzhen China.
2, what product you manufacturer have?
Our factory produce temperature sensor for power station,
Stators and cable for industry.
3, how many production lines do you have?
We have 10 production lines in Shenzhen factory.
4, how do you ensure product quality?
We already built a mechanical,electrical,fire and flame retardant laboratory, professional testing engineers.
5, can you send samples?
Yes, we will supply sample before your make the order.
