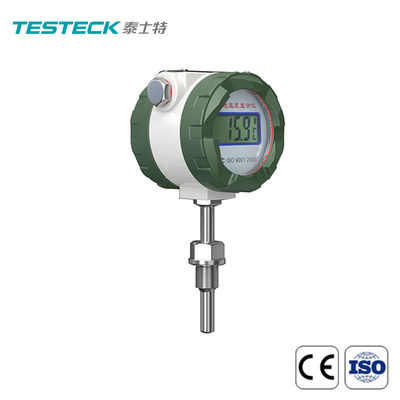

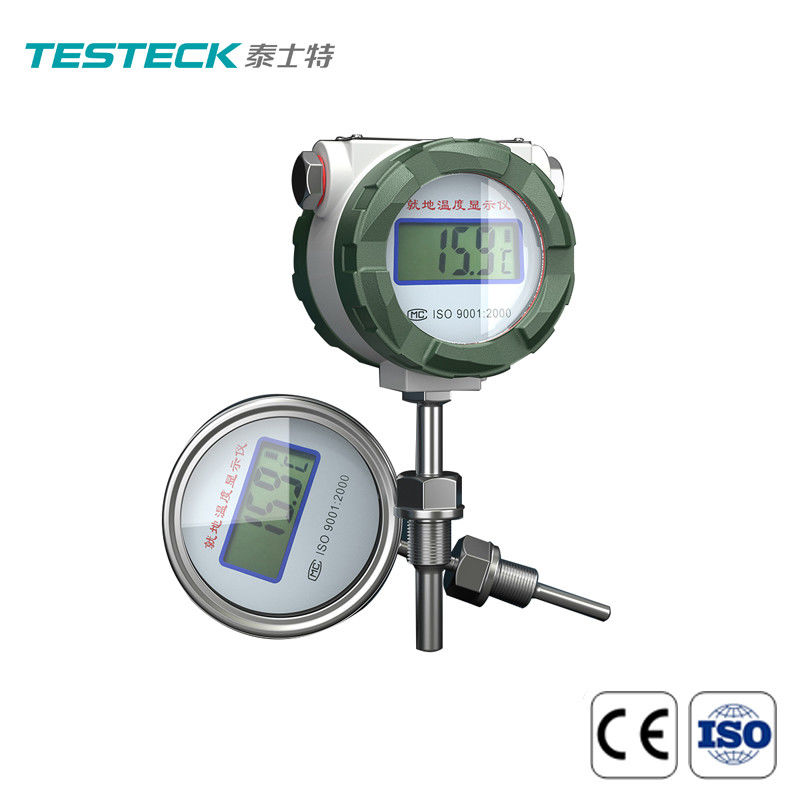

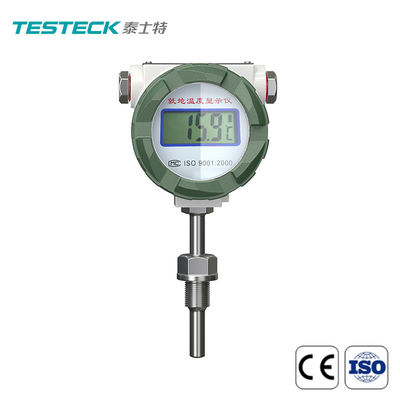

Pt100 Temperature Controller Transmitter

Explosion Proof Integrated Temperature Transmitter 4-20mA Digital Local Display Sensor Thermal Resistance Pt100

Product description

This product is a kind of configurable intelligent temperature transmitting sensor. It receives 2, 3 and 4-wire Pt100 thermal resistance input, conducts linear processing for input signal and outputs 4-20mA standard signal. It has the function of sensor open circuit fault alarm.

Applications

It can directly measure the temperature of liquid, gas or steam medium. It receives the input signal of standard graduation thermal resistance and generates 4~20mA standard signal with linear temperature to be measured. It matches with computer system to detect and control various temperatures.

Features

Temperature measurement range: -200℃~180℃

Conversion accuracy: ≤ 0.2%

Output signal: Analog quantity 4~20mA

Current limit: ≤ 23mA

Power voltage: 8~30VDC

Ambient temperature: --40℃~85℃

Maximum load: (V power supply-8V)/0.025A (current output)

Technical data

Work environment

a. Ambient temperature: - 25℃~85℃ (- 40℃ ~90℃ in a special case)

b. Relative temperature: 5%~95%

c. Mechanical vibration: 10~150HZ, A=0.15mm

d. there is no medium causing transmitter corrosion in the surrounding air

Electromagnetic interference: When there is a radio transmitter with 2020~1,000MHZ and 5W power working 0.5m away from the transmitter, the change is between ±0.15%F·S.

Temperature drift: For every 1℃ change of temperature environment, the zero change is between ±0.15%F·S, and the range change is between 0.01%F·S.
