|Type:||K||Product Name:||Assembled Hot Spot Couple / Resistor|
|Ambient Temperature In Application:||Refer To Temperature Measurement Range And Tolerance||Structure Of Sensor:||Single\Double|
|Protection Grade:||IP67||Pipe Material:||2520 (310S), 201, 304, 316, Gh3039, Etc|
K Type Thermocouple Temperature Sensor,
Cement Plant Thermocouple Temperature Sensor,
IP67 Thermocouple Temperature Sensor

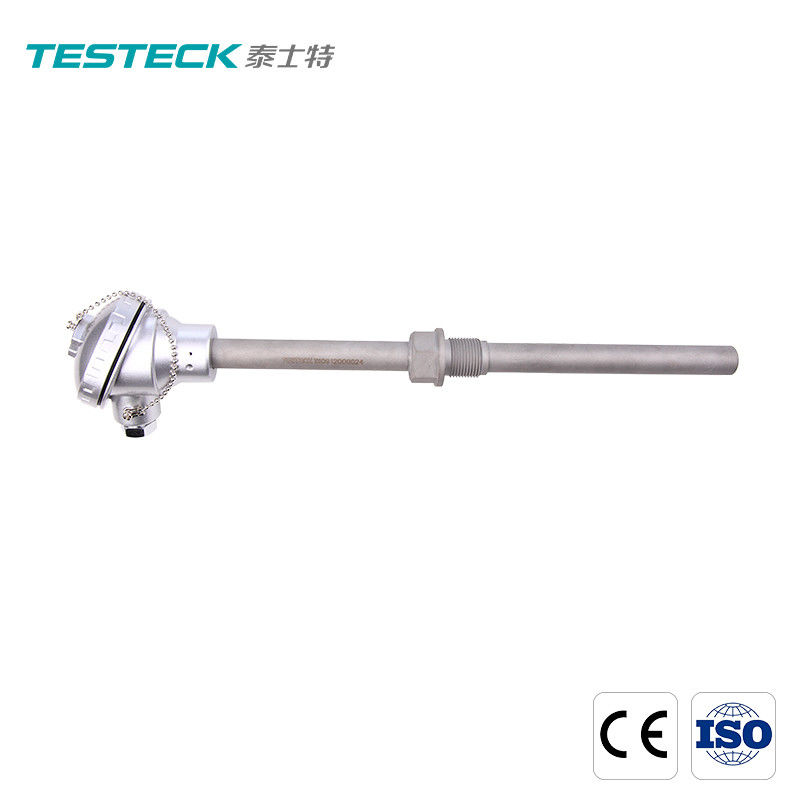

K Type Thermocouple Wear Resisting Thermocouple For Cement Plant
Wear-resistant thermocouple is composed of wear-resistant heads, connecting rods, threads or flanges for installation and fixing, junction boxes, thermocouple cores or thermocouple wires.
Different high-strength wear-resistant protective pipes and surface modification measures are adopted for different temperature ranges and measured media, forming a composite pipe-type physical structure. This series of products are suitable for temperature measurement in petrochemical and coal conveying systems where the protective pipe is seriously worn, for flowing powders and materials such as fluidized bed boilers, cement clinker and refractory materials. The service life of thermocouples is further improved. It has won praise from users for its better performance than the current wear-resistant thermocouple. With a number of international leading high-tech products, we select specially processed wear-resistant materials to, without affecting thermometric lag, completely solve the service life issue of the temperature measurement thermocouple for circulating fluidized bed boiler. The protective sleeve is resistant to grinding, high temperature oxidation, sulfur, liquid iron powder, limestone and cement materials, as well as to vibrations, so that the temperature measuring thermocouple have a service life of one to two years.
On the industrial sites such as the pulverized coal furnaces, ball mills, cement plants and others, armored or high-temperature armored cores are used, together with wear-resistant casings of different materials and specifications which have good wear resistance, vibration resistance, and thermal shock resistance. The service life of the product in the harsh environment with extremely high degree of wear is several times as high as that of the ordinary product, greatly improving the production efficiency and reducing the cost. The outer protection tube and wear-resistant head are made of special heat-resistant and wear-resistant alloy materials, internally designed with armored core, so that it not only shows high corrosion resistance to fly ash particles, but also provide ideal protection for internal core against high temperature. The flange or thread connection allows to measure temperature between 0～1,400℃ for a long time. It is an ideal temperature sensor used in high temperature and wear-resistant applications in metallurgical industry.
The outer tube and wear-resistant head are made of special heat-resistant and wear-resistant alloy materials. According to the different temperature to be measured, the selected material of wear-resistant protective tube is also different. Flange connection or threaded connection is adopted, so that the product can be used for long-term temperature measurement in the range of 0-1,400 degrees. It is the most ideal temperature sensor used in high temperature and wear-resistant environments in metallurgy, chemical industry, cement plants, power plants, and fluidized bed boiler industries. In addition the wear-resistant protective tube is equipped with armored core, indicative of high wear resistance, corrosion resistance, oxidation resistance, and erosion resistance. The protective tube can also protect the inner armored core under high temperature, with service life as long as two years. The components of the wear-resistant thermocouple include wear-resistant head, connecting rod, threaded connection or flange, junction box, and armored inner core. The material of wear-resistant head should be selected according to the actual temperature on the production site, and the material of connecting rod, threaded connection or flange should be selected based on the existence of corrosive media on site.
