Temperature sensor and low smoke halogen free flame retardant high temperature cable manufacturer:www.testeck.com/
|Place of Origin:||China|
|Minimum Order Quantity:||10|
|Packaging Details:||Customized packing|
|Payment Terms:||T/T, Western Union, MoneyGram|
|Supply Ability:||5000 pieces each month|
|Temperature Range:||-20-1200°C , Optional||Spectral Range:||8~14μm|
|Optical Resolution:||15:1||Response Time:||75~300ms Optional|
|Temperature Measurement Accuracy:||Measured Value ±1% Or +1℃, Whichever Is Greater||Output Signal:||4-20MA|
20mA IR Thermometer Sensor,
20mA Thermal Infrared Temperature Sensor,
300ms IR Thermometer Sensor

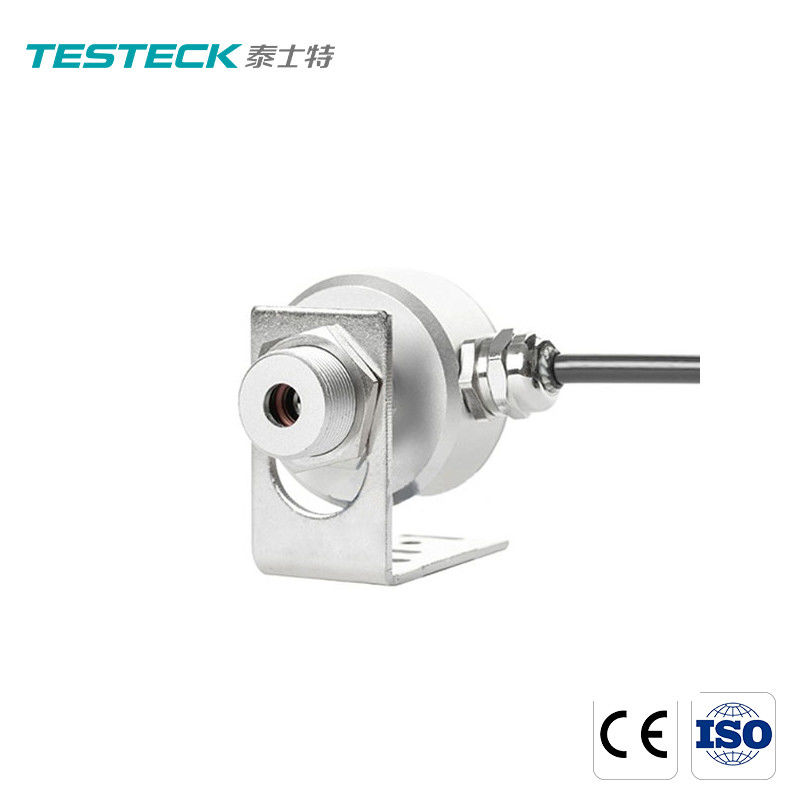

20mA 300ms IR Thermometer Sensor Thermal Infrared Temperature Sensor
The infrared thermometer can be used to, without touching the object, calculate the surface temperature of the object through the infrared radiation intensity emitted by the object, and can quickly measure objects that are difficult to approach or move from a long distance.
It is professionally applied to measure the surface temperature of bright or polished metal objects, and has ideal temperature measurement effect on heated red or reflective objects.
Ⅰ. Internal structure
Integrated by lens, spectral filter, detector, electronic circuit, etc
Ⅱ. Product Parameters
|Product name||Online infrared thermometer/temperature sensor|
|Temperature range||-20-1200°C , optional|
|Response time||75~300ms optional|
|Temperature measurement accuracy||Measured value ±1% or +1℃, whichever is greater|
|Repeated accuracy||Measured value ±0.5 or ±0.5℃, whichever is greater|
|Relative humidity||10-95% (no condensation)|
|Material of shell||Aluminum alloy|
|Dimensions||18mm, installation diameter *44mm long|
|Cable length||2M standard (the cable length can be extended or customized)|
Ⅲ. Application field
Asphalt, rubber, ceramics, water temperature, graphite, induction cooker, tea maker, roller, floor, glass, pancake maker, food, plastic, printing and dyeing, textile, paper, coal, chemical industry, non-glossy metal.
Ⅳ. delivery, shipment and service of temperature sensors
The temperature sensor is packed in cartons. If you need, we can also make it for you.
1, are your manufacturer?
We are manufacturer, our factory localed in Shenzhen China.
2, what product you manufacturer have?
Our factory produce temperature sensor for power station,
Stators and cable for industry.
3, how many production lines do you have?
We have 10 production lines in Shenzhen factory.
4, how do you ensure product quality?
We already built a mechanical,electrical,fire and flame retardant laboratory, professional testing engineers.
5, can you send samples?
Yes, we will supply sample before your make the order.
Ⅳ. product details
Contact Person: ALix
